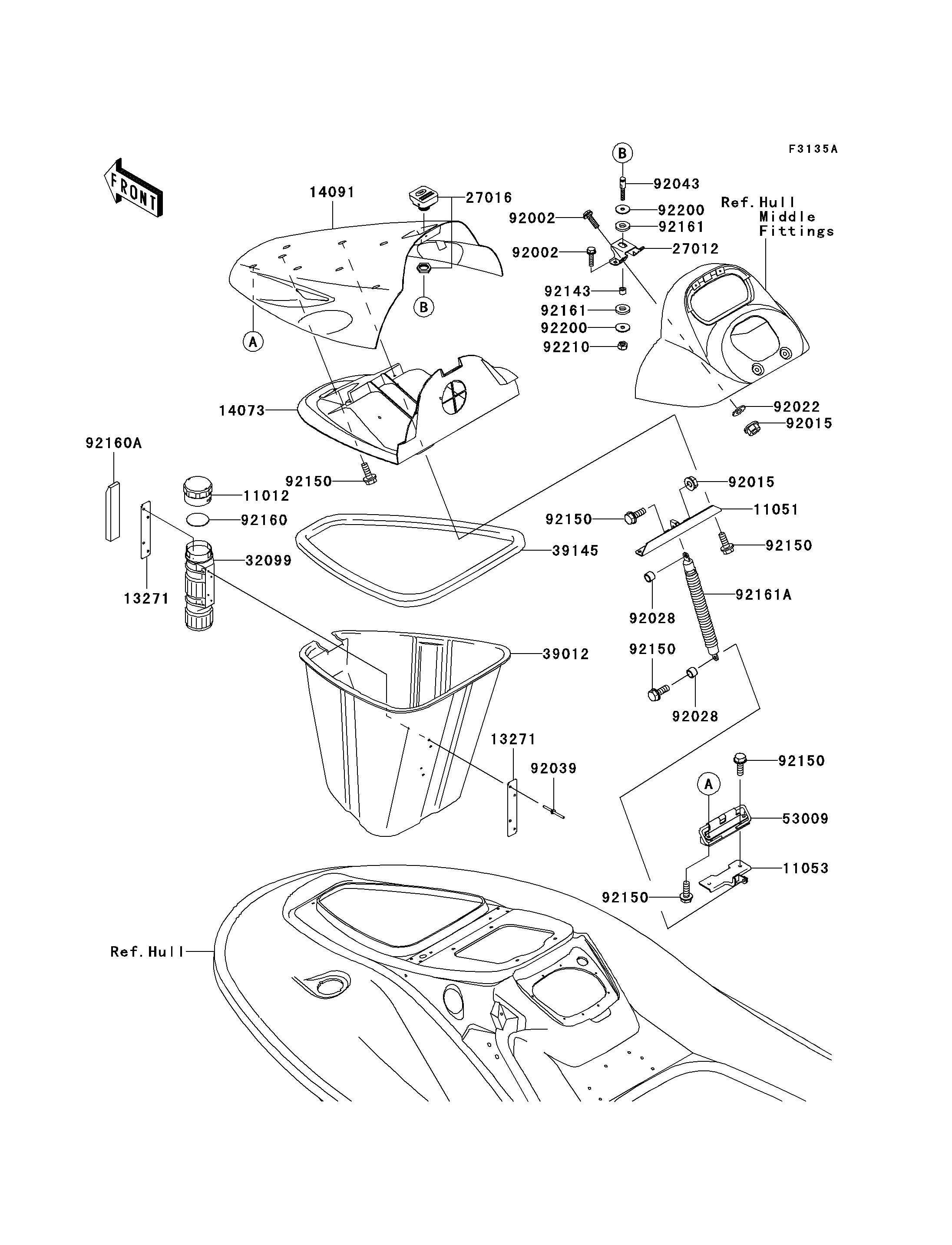

2005 1200 STX-R - Hull Front Fittings(C2)

DOWNLOAD PDF
SELECT A NEW PART
11012
11051
11053
13271
13271
14073
14091
27012
27016
32099
39012
39145
53009
92002
92002
92015
92015
92022
92028
92028
92039
92043
92143
92150
92150
92150
92150
92150
92150
92160
92160A
92161
92161
92161A
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXTINGUISHER 11012 11012-3766 1
BRACKET 11051 11051-3766 1
BRACKET 11053 11053-3752 1
PLATE,FIRE EXTINGUISHER 13271 13271-3775 2
DUCT,FR 14073 14073-3796 1
COVER,HATCH,L.GREEN 14091 14091-3772-777 1
HOOK 27012 27012-3841 1
LOCK-ASSY 27016 27016-3757 1
CASE,FIRE EXTINGUISHER 32099 32099-3769 1
CASE-STORAGE,FR 39012 39012-3726 1
TRIM-SEAL,L=1380 39145 39145-3773 1
HINGE,HATCH COVER 53009 53009-3725 1
BOLT,6X25 92002 92002-3714 4
NUT,6MM 92015 92015-3767 5
WASHER,6.5X20X1.5 92022 92022-3710 4
BUSHING 92028 92028-3765 2
RIVET 92039 92039-3783 4
PIN 92043 92043-3757 1
COLLAR,8.2X14X11.2 92143 92143-3724 1
BOLT,6X18 92150 92150-3729 11
DAMPER 92160 92160-3814 1
DAMPER 92160A 92160-3821 1
DAMPER 92161 92161-3739 2
DAMPER,HATCH 92161A 92161-3753 1
WASHER,8.5X32X2 92200 92200-3786 2
NUT,LOCK,8MM 92210 92210-3742 1
