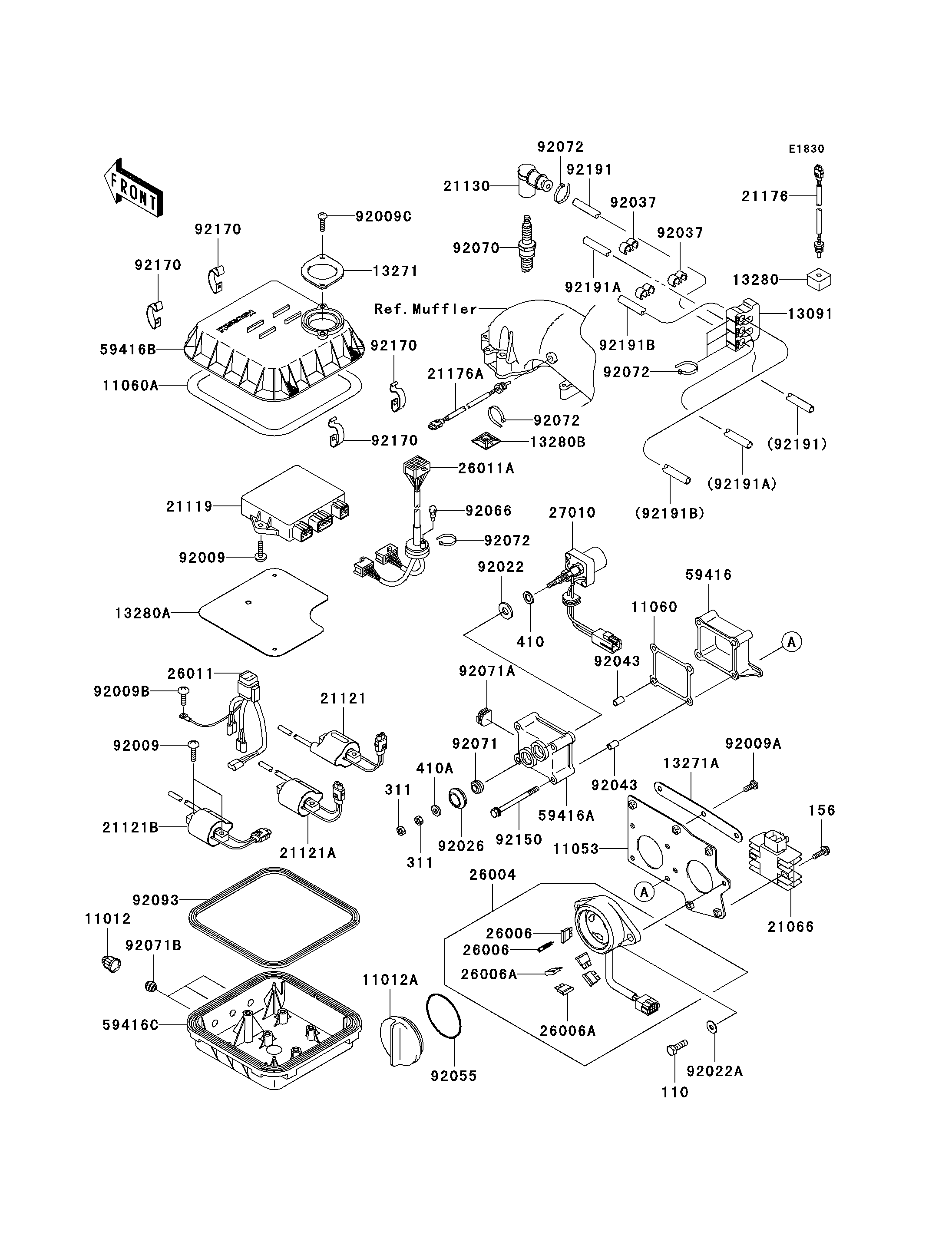

2004 1200 STX-R - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012A
11012A
11053
11053
11060
11060
11060A
11060A
13091
13091
13271
13271
13271A
13271A
13280
13280
13280A
13280A
13280B
13280B
21066
21066
21119
21119
21121
21121
21121A
21121A
21121B
21121B
21130
21130
21176
21176
21176A
21176A
26004
26004
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26011
26011
26011A
26011A
27010
27010
59416
59416
59416A
59416A
59416B
59416B
59416C
59416C
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92009C
92009C
92022
92022
92022A
92022A
92026
92026
92037
92037
92037
92037
92043
92043
92043
92043
92055
92055
92066
92066
110
110
156
156
311
311
311
311
410
410
410A
410A
92070
92070
92071
92071
92071A
92071A
92071B
92071B
92072
92072
92072
92072
92072
92072
92072
92072
92093
92093
92150
92150
92170
92170
92170
92170
92170
92170
92170
92170
92191
92191
92191A
92191A
92191B
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3005 3
CAP 11012A 11012-3791 1
BRACKET 11053 11053-3721 1
GASKET 11060 11060-3709 1
GASKET,ELECTRIC CASE 11060A 11060-3805 1
HOLDER 13091 13091-3785 1
PLATE 13271 13271-3707 1
PLATE 13271A 13271-3842 1
HOLDER 13280 13280-3711 1
HOLDER 13280A 13280-3712 1
HOLDER 13280B 13280-3739 1
REGULATOR-VOLTAGE 21066 21066-3716 1
IGNITER 21119 21119-3765 1
COIL-IGNITION,#1 21121 21121-3714 1
COIL-IGNITION,#2 21121A 21121-3715 1
COIL-IGNITION,#3 21121B 21121-3716 1
CAP-SPARK PLUG 21130 21130-3706 3
SENSOR,INTAKE AIR TEMP 21176 21176-3730 1
SENSOR,COOLING WATER TEMP 21176A 21176-3731 1
FUSE-ASSY 26004 26004-3728 1
FUSE,10A-R 26006 26006-1007 4
FUSE,3A-P 26006A 26006-1060 2
WIRE-LEAD 26011 26011-3857 1
WIRE-LEAD 26011A 26011-3900 1
SWITCH 27010 27010-3777 1
CASE-ELECTRIC 59416 59416-3710 1
CASE-ELECTRIC 59416A 59416-3711 1
CASE-ELECTRIC,UPP 59416B 59416-3749 1
CASE-ELECTRIC,LWR 59416C 59416-3750 1
SCREW,TAPPING,6X25 92009 92009-1640 8
SCREW,6X15 92009A 92009-3830 3
SCREW,6X14 92009B 92009-3845 1
SCREW,6X18 92009C 92009-3846 2
WASHER 92022 92022-3035 2
WASHER 92022A 92022-567 2
SPACER 92026 92026-3703 2
CLAMP,HOSE 92037 92037-1603 3
PIN 92043 92043-3715 2
RING-O 92055 92055-1292 1
PLUG 92066 92066-1347 1
BOLT,6X20 110 110R0620 2
BOLT-WP,6X20 156 156R0620 2
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
PLUG-SPARK,BR9ES(NGK),SOLID 92070 92070-1157 3
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-3837 1
GROMMET 92071B 92071-527 3
BAND,L=99 92072 92072-3871 8
SEAL 92093 92093-3754 1
BOLT,6X80 92150 92150-3711 4
CLAMP 92170 92170-3765 4
TUBE,8X10X690 92191 92191-3847 1
TUBE,8X10X570 92191A 92191-3848 1
TUBE,8X10X500 92191B 92191-3849 1
