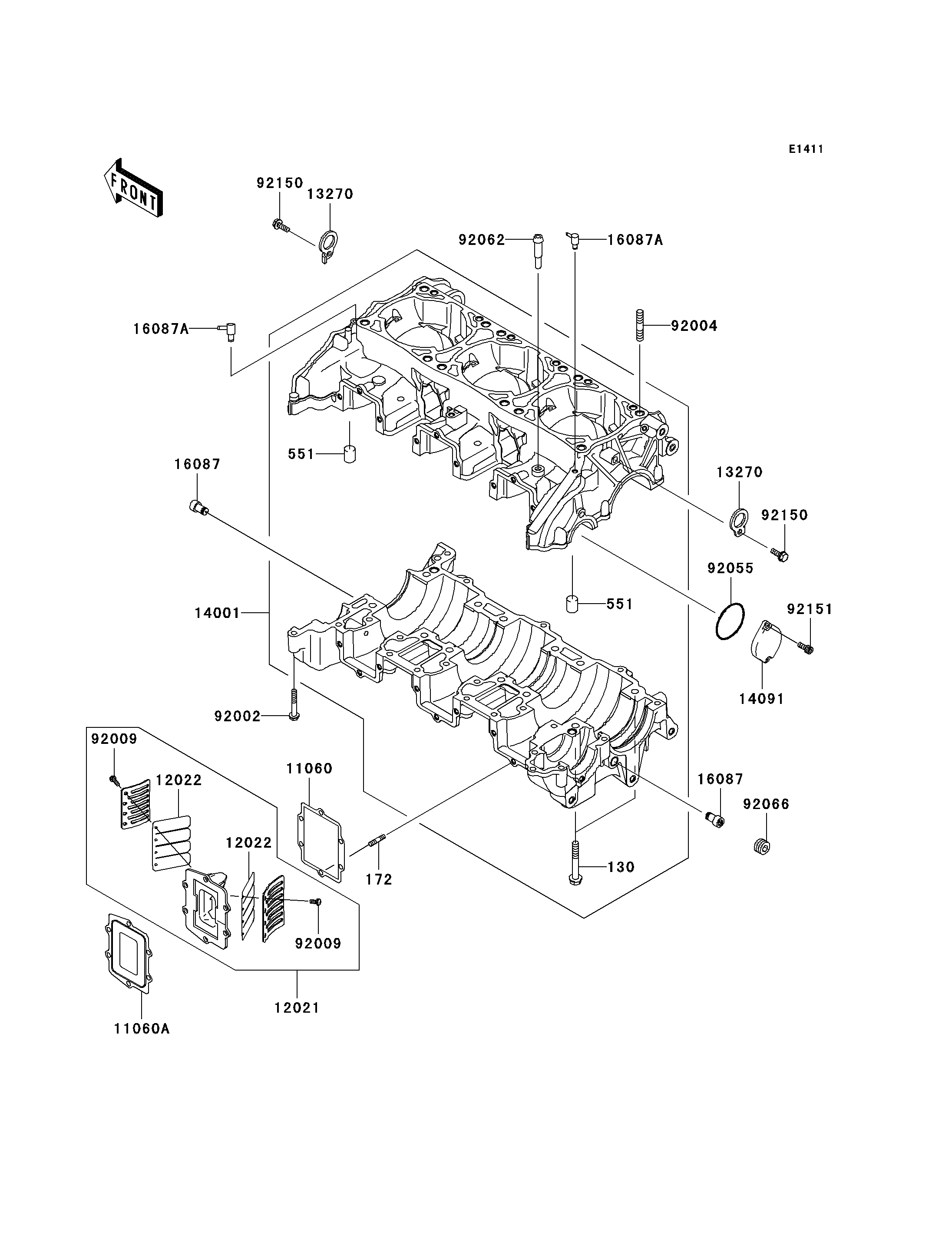

2004 1200 STX-R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
130
172
551
551
11060
11060A
12021
12022
12022
13270
13270
14001
14091
16087
16087
16087A
16087A
92002
92004
92009
92009
92055
92062
92066
92150
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130Z0855 12
BOLT-STUD 172 172R0620 18
PIN-DOWEL 551 551R1012 2
GASKET,REED VALVE 11060 11060-3717 3
GASKET,REED VALVE 11060A 11060-3757 3
VALVE-ASSY-REED 12021 12021-3711 3
VALVE-REED 12022 12022-3709 6
PLATE 13270 13270-3899 2
SET-CRANKCASE 14001 14001-5377 1
COVER,BALANCER 14091 14091-3736 1
VALVE-CHECK 16087 16087-3707 2
VALVE-CHECK 16087A 16087-3708 2
BOLT,6X40 92002 92002-3716 21
STUD,10X35 92004 92004-3731 12
SCREW,3X6 92009 92009-1371 24
RING-O 92055 92055-1397 1
NOZZLE 92062 92062-3705 1
PLUG,PT1/4X8.9 92066 92066-3765 1
BOLT,6X18 92150 92150-3729 2
BOLT 92151 92151-3779 2
