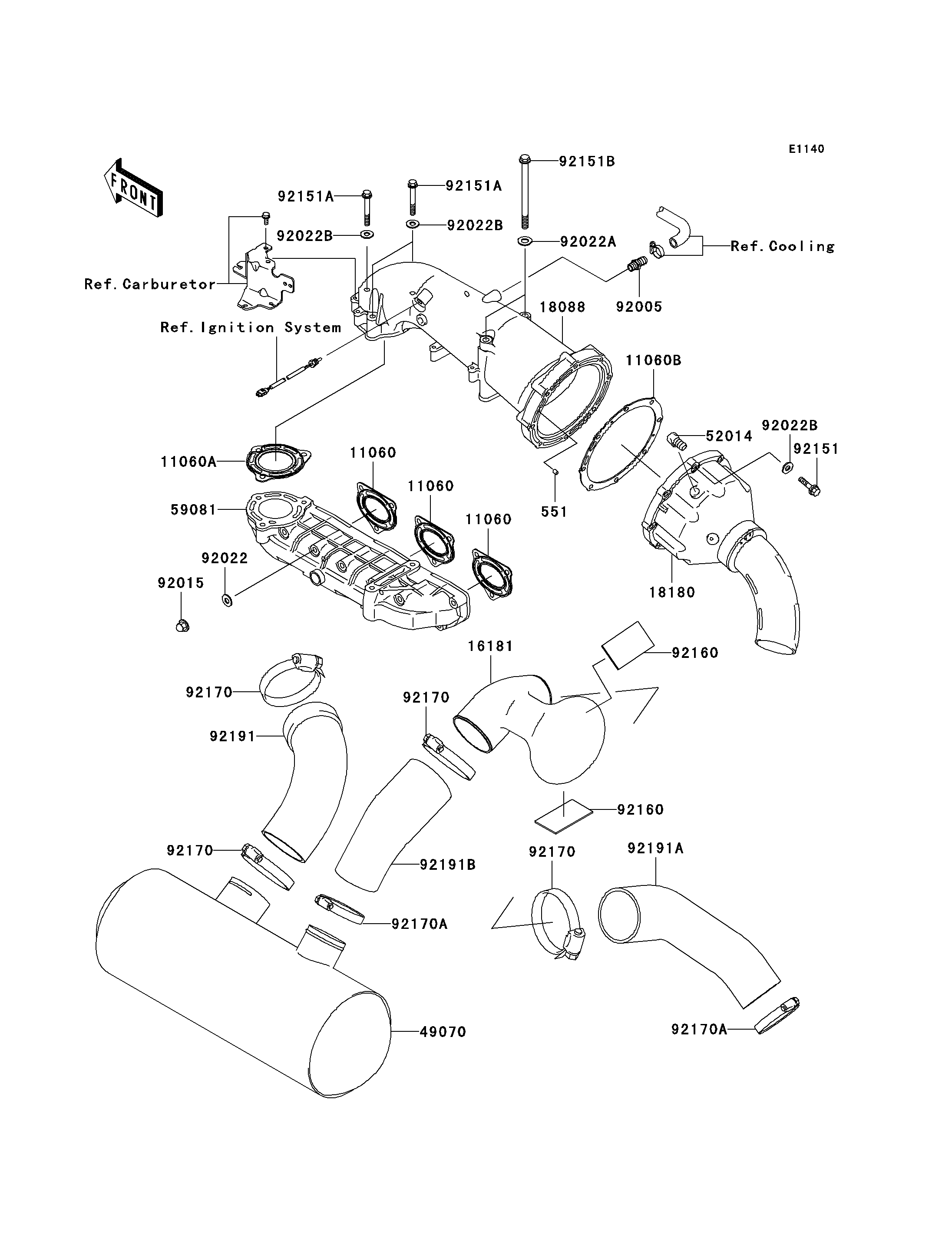

2004 1200 STX-R - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
551
11060
11060
11060
11060A
11060B
16181
18088
18180
49070
52014
59081
92005
92015
92022
92022A
92022B
92022B
92022B
92151
92151A
92151A
92151B
92160
92160
92170
92170
92170
92170
92170A
92170A
92191
92191A
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-DOWEL 551 551R0408 1
GASKET,EXHAUST MANIFOLD 11060 11060-3785 3
GASKET,EXHAUST PIPE 11060A 11060-3786 1
GASKET,MUFFLER BODY 11060B 11060-3807 1
TANK-RESONATOR 16181 16181-3702 1
PIPE-EXHAUST 18088 18088-3713 1
BODY-MUFFLER 18180 18180-3722 1
MUFFLER-COMP 49070 49070-3733 1
ELBOW 52014 52014-3711 1
MANIFOLD-EXHAUST 59081 59081-3735 1
FITTING 92005 92005-3714 1
NUT,CAP,8MM 92015 92015-1371 9
WASHER,8.2X18X1.5 92022 92022-1964 9
WASHER,10.2X20X1.5 92022A 92022-3742 2
WASHER,8.2X18X1.5 92022B 92022-3743 11
BOLT,8X35 92151 92151-3729 8
BOLT,8X60 92151A 92151-3730 3
BOLT,10X140 92151B 92151-3804 2
DAMPER 92160 92160-3913 2
CLAMP 92170 92170-3760 4
CLAMP 92170A 92170-3764 2
TUBE 92191 92191-3835 1
TUBE,RESONATOR-TAILPIPE 92191A 92191-3942 1
TUBE,RESONATOR-TAILPIPE 92191B 92191-3945 1
