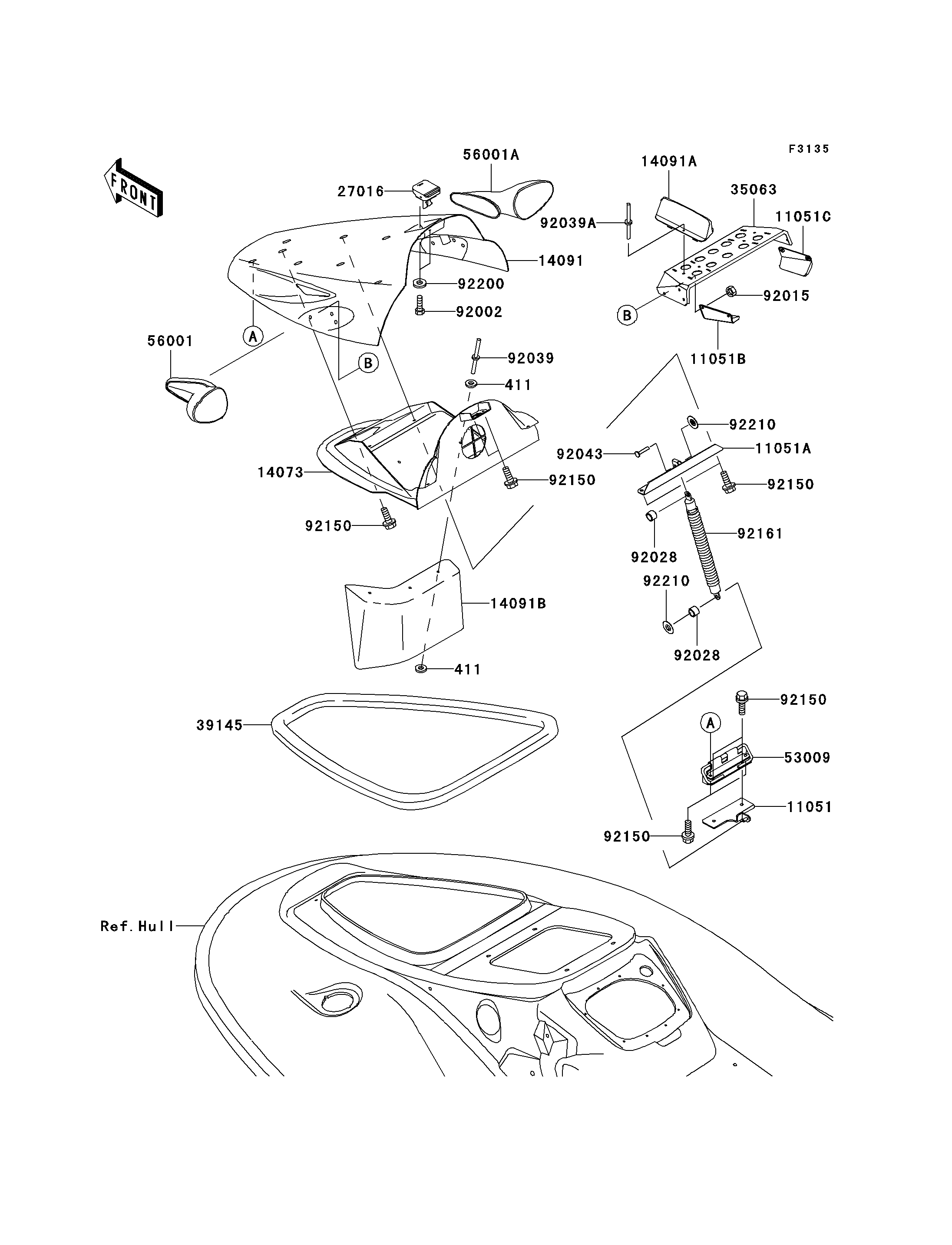

2003 1100 STX D.I. - Hull Front Fittings

DOWNLOAD PDF
SELECT A NEW PART
411
411
11051
11051A
11051B
11051C
14073
14091
14091A
14091B
27016
35063
39145
53009
56001
56001A
92002
92015
92028
92028
92039
92039A
92043
92150
92150
92150
92150
92150
92161
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,5MM 411 411S0500 6
BRACKET 11051 11051-3741 1
BRACKET 11051A 11051-3766 1
BRACKET,HATCH,LH 11051B 11051-3798 1
BRACKET,HATCH,RH 11051C 11051-3799 1
DUCT,FR 14073 14073-3777 1
COVER,HATCH,M.R.RED 14091 14091-3704-369 1
COVER 14091A 14091-3707 2
COVER,FRONT DUCT 14091B 14091-3722 1
LOCK-ASSY,HATCH COVER 27016 27016-3756 1
STAY,MIRROR 35063 35063-3703 1
TRIM-SEAL,L=1380 39145 39145-3776 1
HINGE,HATCH COVER 53009 53009-3725 1
MIRROR-ASSY,LH,M.R.RED 56001 56001-3719-468 1
MIRROR-ASSY,RH,M.R.RED 56001A 56001-3720-468 1
BOLT,5X16 92002 92002-3747 2
NUT,LOCK,6MM 92015 92015-3766 6
BUSHING 92028 92028-3765 2
RIVET 92039 92039-3714 3
RIVET,4.8MM 92039A 92039-3719 4
PIN,6X33 92043 92043-3748 1
BOLT,6X18 92150 92150-3729 9
DAMPER 92161 92161-3705 1
WASHER,5.9X16X1.5 92200 92200-3714 2
NUT,SPEED,6MM 92210 92210-3739 2
