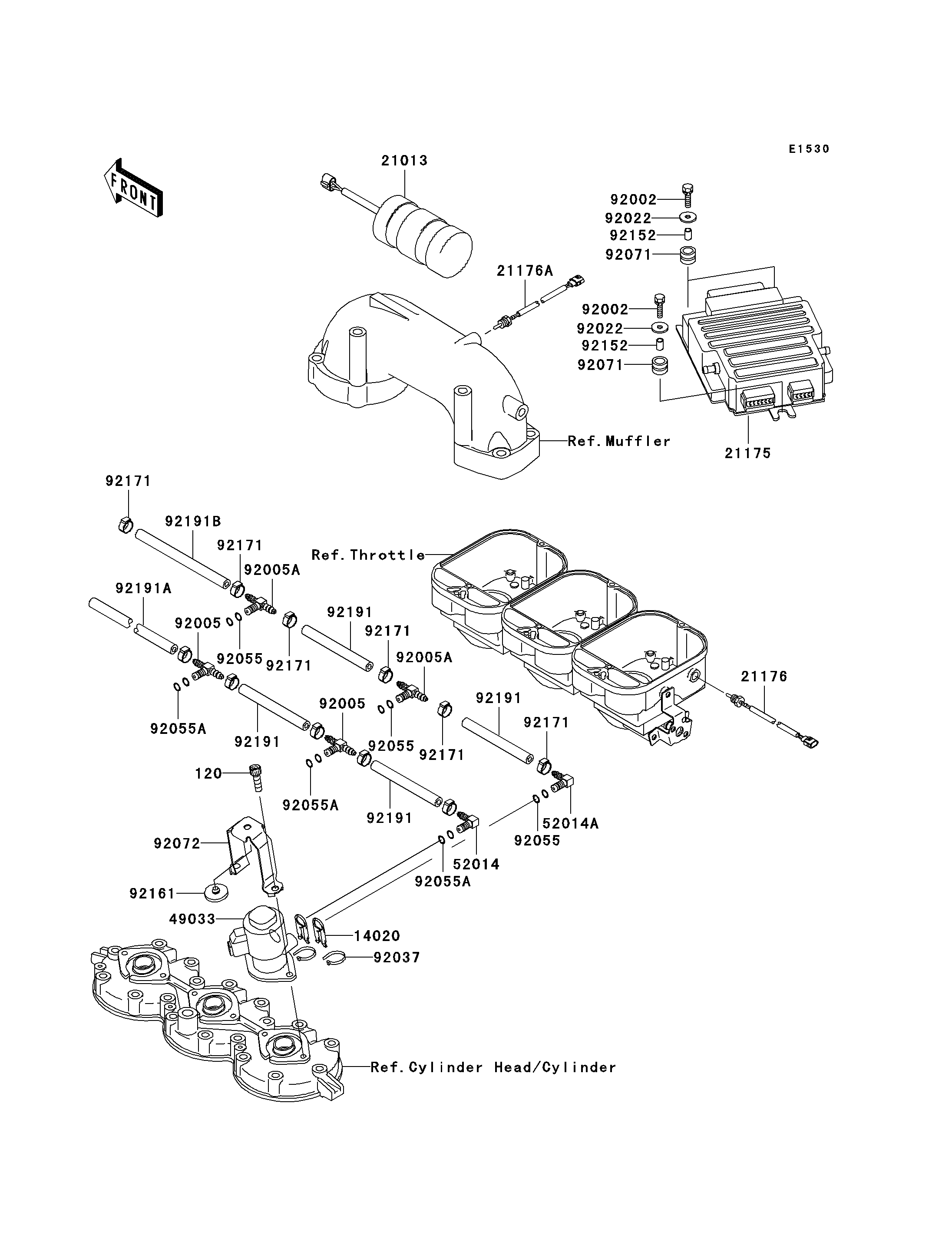

2003 1100 STX D.I. - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
120
14020
21013
21175
21176
21176A
49033
52014
52014A
92002
92002
92005
92005
92005A
92005A
92022
92022
92037
92055
92055
92055
92055A
92055A
92055A
92071
92071
92072
92152
92152
92161
92171
92171
92171
92171
92171
92171
92191
92191
92191
92191
92191A
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120Z0820 6
RETAINER 14020 14020-3705 6
CONDENSER 21013 21013-3701 1
CONTROL UNIT-ELECTRONIC 21175 21175-3718 1
SENSOR 21176 21176-3756 1
SENSOR 21176A 21176-3757 1
NOZZLE-INJECTION 49033 49033-3704 3
ELBOW,INLET 52014 52014-3715 1
ELBOW,OUTLET 52014A 52014-3716 1
BOLT,6X25 92002 92002-3775 3
FITTING,INLET 92005 92005-3733 2
FITTING,OUTLET 92005A 92005-3734 2
WASHER,6.2X20X2 92022 92022-3714 3
CLAMP 92037 92037-1173 6
RING-O,OUTLET 92055 92055-3758 6
RING-O,INLET 92055A 92055-3759 6
GROMMET 92071 92071-3834 3
BAND,INJECTION 92072 92072-3854 3
COLLAR,6.2X8X12 92152 92152-3716 3
DAMPER 92161 92161-3718 3
CLAMP 92171 92171-3706 11
TUBE,6X12X110 92191 92191-3870 4
TUBE,6X12X235 92191A 92191-3894 1
TUBE,6X12X180 92191B 92191-3921 1
