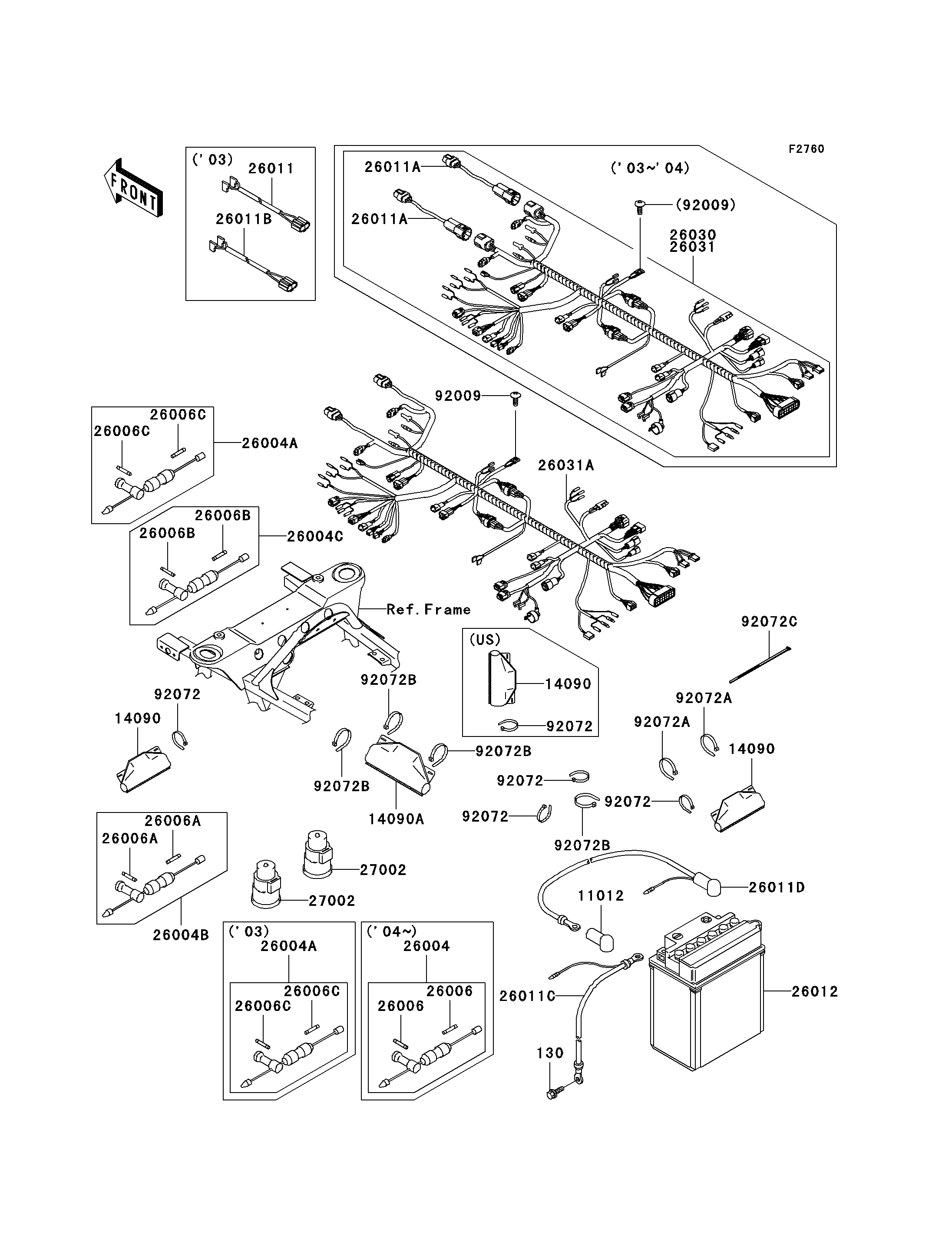

2004 Prairie 360 4X4 Hardwoods Green HD - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
11012
14090A
26004
26004A
26004A
26004B
26004C
26006
26006
26006A
26006A
26006B
26006B
26006C
26006C
26006C
26006C
26011A
26011A
26011C
26011D
26012
26031
27002
27002
92009
92072A
92072A
92072B
92072B
92072B
92072B
92072C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130B0612 1
CAP,TERMINAL 11012 11012-1354 1
COVER,COUPLER 14090A 14090-1611 1
FUSE-ASSY 26004 26004-0005 1
FUSE-ASSY 26004A 26004-1114 1
FUSE-ASSY 26004B 26004-1127 1
FUSE-ASSY 26004C 26004-7501 1
FUSE,10A,L=30 26006 26006-0003 2
FUSE,30A,L=30 26006A 26006-1059 2
FUSE,20A,L=32 26006B 26006-1064 2
FUSE,5A,L=30 26006C 26006-1074 2
WIRE-LEAD,HEAD LAMP 26011A 26011-1834 2
WIRE-LEAD,BATTERY(-) 26011C 26011-7503 1
WIRE-LEAD,BATTERY(+) 26011D 26011-7507 1
BATTERY,YB14A-A2,12V 14AH 26012 26012-0006 1
HARNESS,MAIN 26031 26031-0048 1
RELAY-ASSY 27002 27002-1095 2
SCREW 92009 92009-1166 1
BAND,L=149 92072A 92072-031 2
BAND,L=186 92072B 92072-056 4
BAND,L=188 92072C 92072-1239 21
COVER,COUPLER 14090 14090-1331 2 CN
COVER,COUPLER 14090 14090-1331 3 US
BAND,L=123 92072 92072-030 4 CN
BAND,L=123 92072 92072-030 5 US
