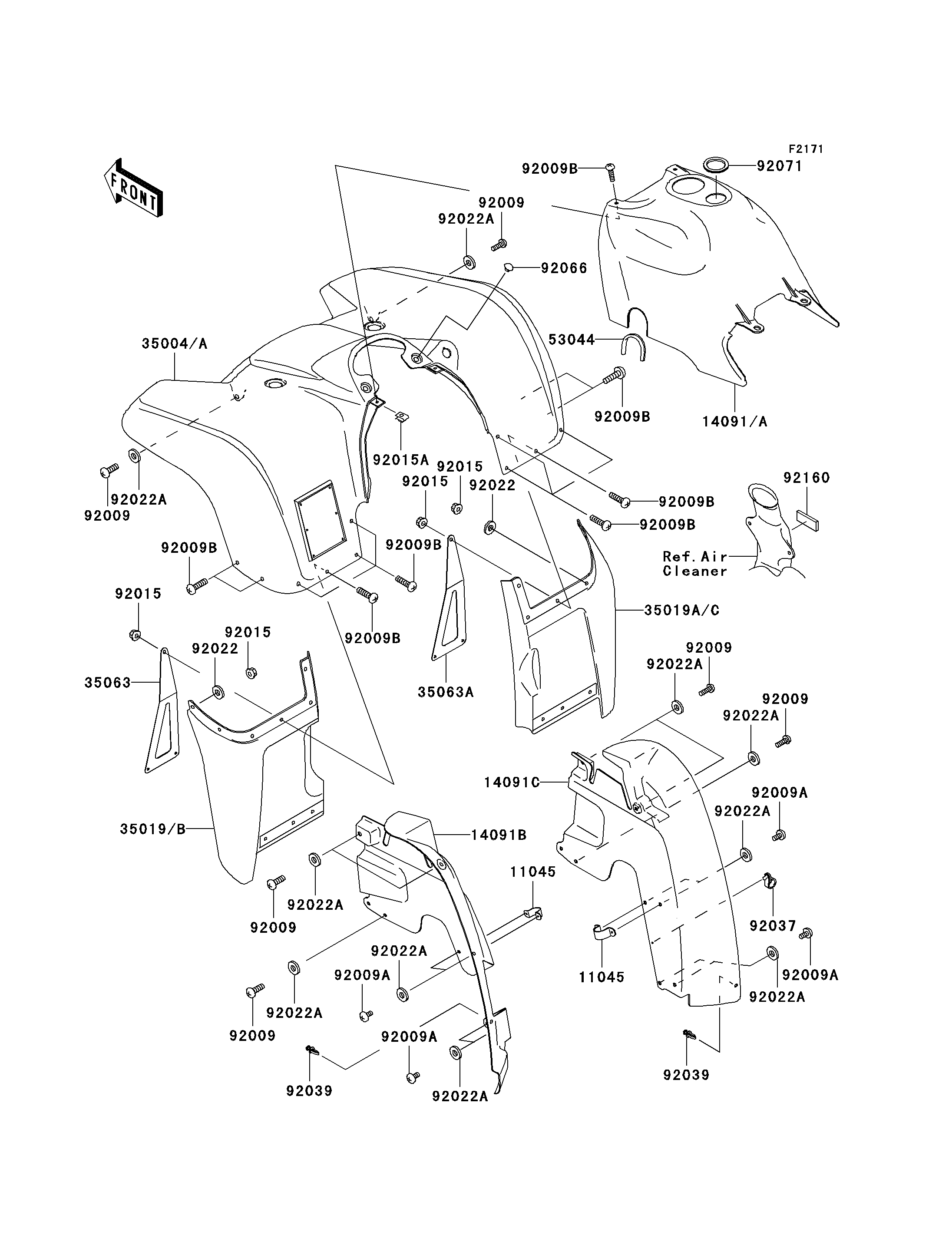

2004 Prairie 360 4X4 Hardwoods Green HD - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11045
11045
14091A
14091B
14091C
35004A
35019B
35019C
35063
35063A
53044
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92015
92015
92015
92015
92015A
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92037
92039
92039
92066
92071
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FENDER 11045 11045-1882 2
COVER,FUEL TANK,C.H.GREEN 14091A 14091-0007-374 1
COVER,INNER FLAP,LH 14091B 14091-7521 1
COVER,INNER FLAP,RH 14091C 14091-7527 1
FENDER-FRONT,C.H.GREEN 35004A 35004-0001-374 1
FLAP,FR,LH,F.BLACK 35019B 35019-7506-6Z 1
FLAP,FR,RH,F.BLACK 35019C 35019-7507-6Z 1
STAY,FRONT FENDER,LH 35063 35063-7506 1
STAY,FRONT FENDER,RH 35063A 35063-7507 1
TRIM,L=150 53044 53044-1303 1
SCREW 92009 92009-1166 8
SCREW,TAPPING,5X10 92009A 92009-1332 8
SCREW,6X16 92009B 92009-1621 14
NUT,FLANGED,6MM 92015 92015-1367 12
NUT,CLAMP,6MM 92015A 92015-1678 2
WASHER,6.5X16X1.0 92022 92022-1093 10
WASHER,6.5X20X1.6,BLACK 92022A 92022-1346 16
CLAMP,SPEED,L=80.5 92037 92037-1903 1
RIVET 92039 92039-1229 2
PLUG 92066 92066-1485 2
GROMMET,FUEL TANK COVER 92071 92071-7503 1
DAMPER 92160 92160-1834 1
