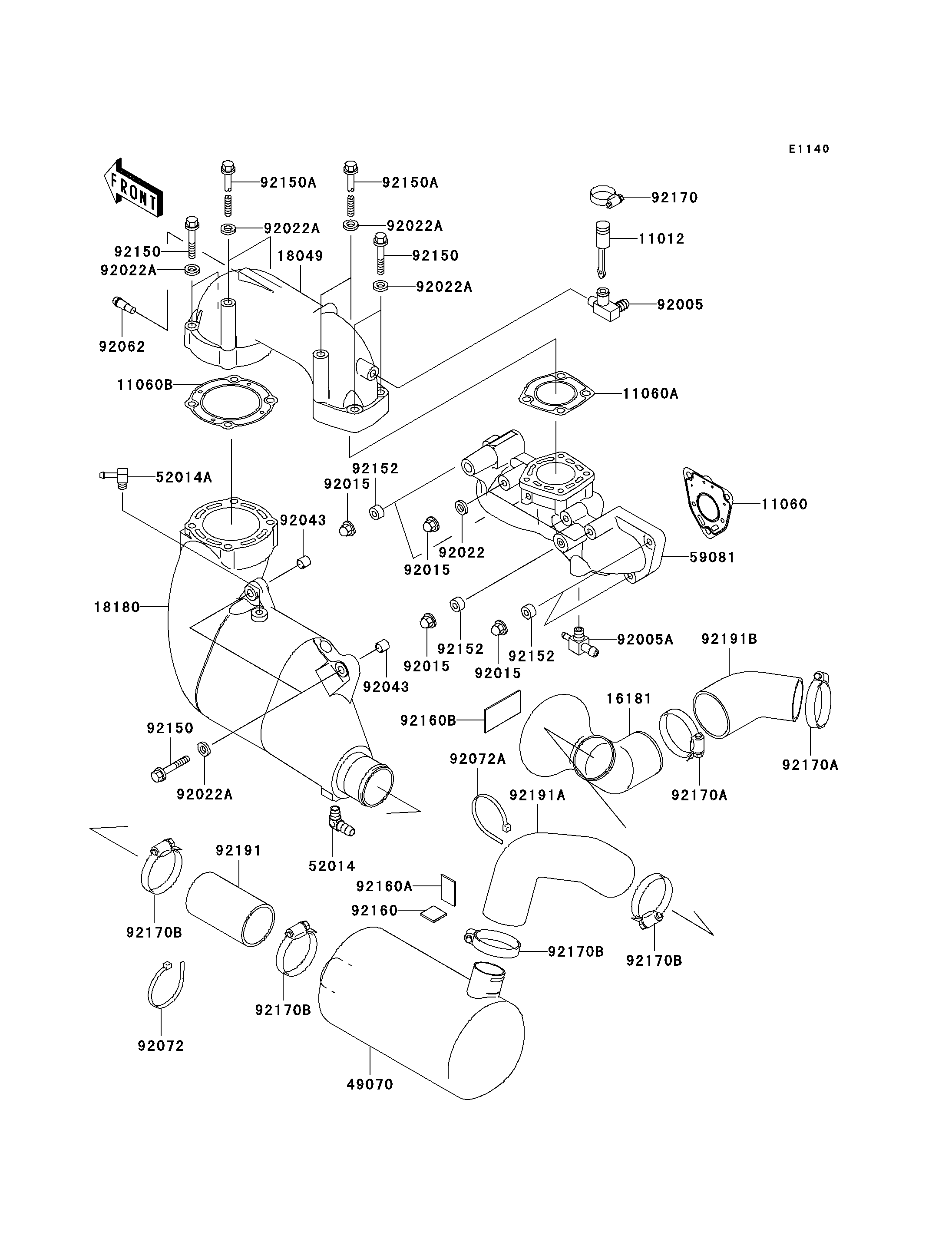

Parts Diagrams |
11012
11060
11060A
11060B
16181
18049
18180
49070
52014
52014A
59081
92005
92005A
92015
92015
92015
92015
92022
92022A
92022A
92022A
92022A
92022A
92043
92043
92062
92072
92072A
92150
92150
92150
92150A
92150A
92152
92152
92152
92160
92160A
92160B
92170
92170A
92170A
92170B
92170B
92170B
92170B
92191
92191A
92191B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-3757 | 1 | ||
| GASKET | 11060 | 11060-3767 | 3 | ||
| GASKET,MANIFOLD | 11060A | 11060-3768 | 1 | ||
| GASKET,MUFFLER | 11060B | 11060-3769 | 1 | ||
| TANK-RESONATOR | 16181 | 16181-3702 | 1 | ||
| PIPE-EXHAUST | 18049 | 18049-3776 | 1 | ||
| BODY-MUFFLER | 18180 | 18180-3730 | 1 | ||
| MUFFLER-COMP | 49070 | 49070-3736 | 1 | ||
| ELBOW | 52014 | 52014-3711 | 1 | ||
| ELBOW | 52014A | 52014-3721 | 1 | ||
| MANIFOLD-EXHAUST | 59081 | 59081-3730 | 1 | ||
| FITTING | 92005 | 92005-3715 | 1 | ||
| FITTING | 92005A | 92005-3720 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 9 | ||
| WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 4 | ||
| WASHER,10.2X20X1.5 | 92022A | 92022-3742 | 10 | ||
| PIN,11X14X12.3 | 92043 | 92043-1266 | 2 | ||
| NOZZLE | 92062 | 92062-3705 | 1 | ||
| BAND,L=368.3 | 92072 | 92072-3808 | 1 | ||
| BAND | 92072A | 92072-3857 | 3 | ||
| BOLT,10X50 | 92150 | 92150-3819 | 6 | ||
| BOLT,10X125 | 92150A | 92150-3825 | 4 | ||
| COLLAR | 92152 | 92152-3726 | 5 | ||
| DAMPER,25X25 | 92160 | 92160-3864 | 1 | ||
| DAMPER,40X25 | 92160A | 92160-3865 | 1 | ||
| DAMPER | 92160B | 92160-3913 | 1 | ||
| CLAMP | 92170 | 92170-3729 | 1 | ||
| CLAMP | 92170A | 92170-3760 | 2 | ||
| CLAMP | 92170B | 92170-3764 | 4 | ||
| TUBE | 92191 | 92191-3922 | 1 | ||
| TUBE,MUFFLER-RESONATOR | 92191A | 92191-3944 | 1 | ||
| TUBE,RESONATOR-TAILPIPE | 92191B | 92191-3945 | 1 |
