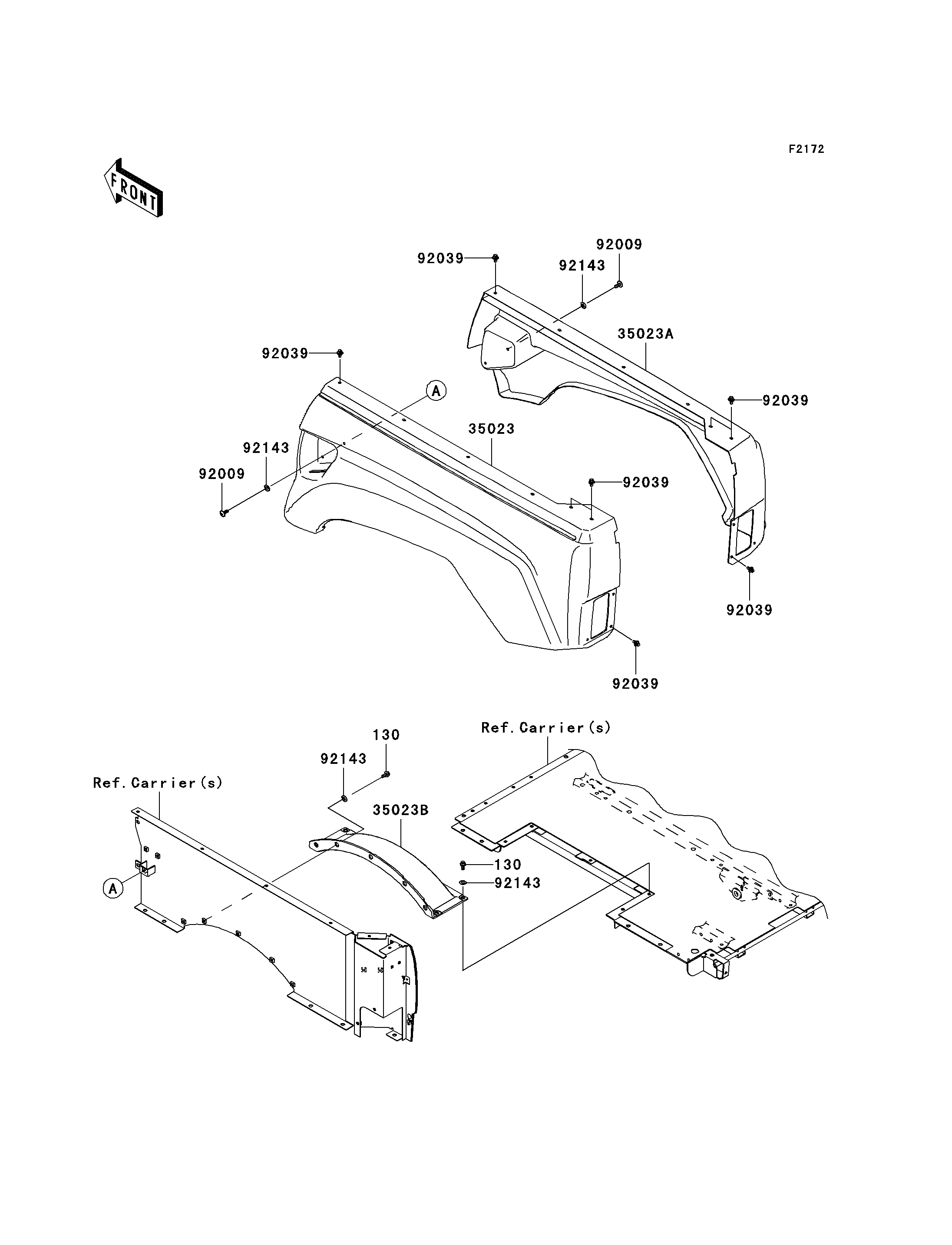

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130BB0614 | 20 | ||
| FENDER-REAR,RR,LH,C.H.GREEN | 35023 | 35023-0130-826 | 1 | ||
| FENDER-REAR,RR,RH,C.H.GREEN | 35023A | 35023-0131-826 | 1 | ||
| FENDER-REAR | 35023B | 35023-0151 | 2 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 2 | ||
| RIVET | 92039 | 92039-1227 | 18 | ||
| COLLAR | 92143 | 92143-1087 | 22 |
