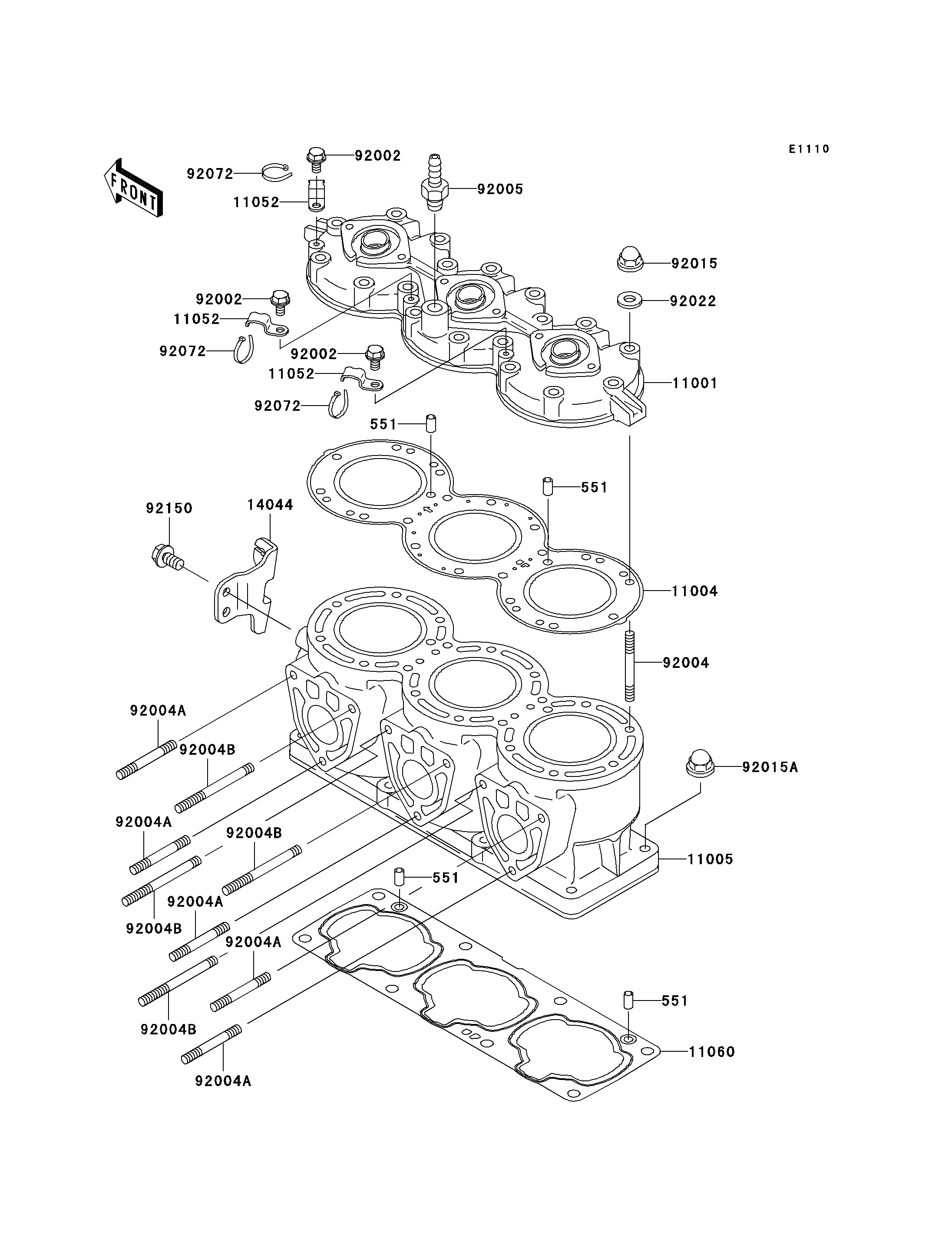

2003 1100 STX D.I. - Cylinder Head/Cylinder
551
551
551
551
11001
11004
11005
11052
11052
11052
11060
14044
92002
92002
92002
92004
92004A
92004A
92004A
92004A
92004A
92004B
92004B
92004B
92004B
92005
92015
92015A
92022
92072
92072
92072
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-DOWEL | 551 | 551R0812 | 4 | ||
| HEAD-CYLINDER | 11001 | 11001-3740 | 1 | ||
| GASKET-HEAD | 11004 | 11004-3715 | 1 | ||
| CYLINDER-ENGINE | 11005 | 11005-3752 | 1 | ||
| BRACKET | 11052 | 11052-3758 | 3 | ||
| GASKET,CYLINDER BASE | 11060 | 11060-3817 | 1 | ||
| HOLDER-CABLE,CYLINDER | 14044 | 14044-3743 | 1 | ||
| BOLT,6X12 | 92002 | 92002-3763 | 3 | ||
| STUD,8X56 | 92004 | 92004-3733 | 18 | ||
| STUD,8X40,L=56 | 92004A | 92004-3736 | 5 | ||
| STUD,8X75 | 92004B | 92004-3744 | 4 | ||
| FITTING | 92005 | 92005-3714 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 18 | ||
| NUT,10MM | 92015A | 92015-1649 | 8 | ||
| WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 18 | ||
| BAND,L=201 | 92072 | 92072-3778 | 3 | ||
| BOLT,8X16 | 92150 | 92150-3722 | 2 |
| PIN-DOWEL | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HEAD-CYLINDER | |
| REF # | 11001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD | |
| REF # | 11004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CABLE,CYLINDER | |
| REF # | 14044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| STUD,8X56 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| STUD,8X40,L=56 | |
| REF # | 92004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| STUD,8X75 | |
| REF # | 92004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X18X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| BAND,L=201 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X16 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
