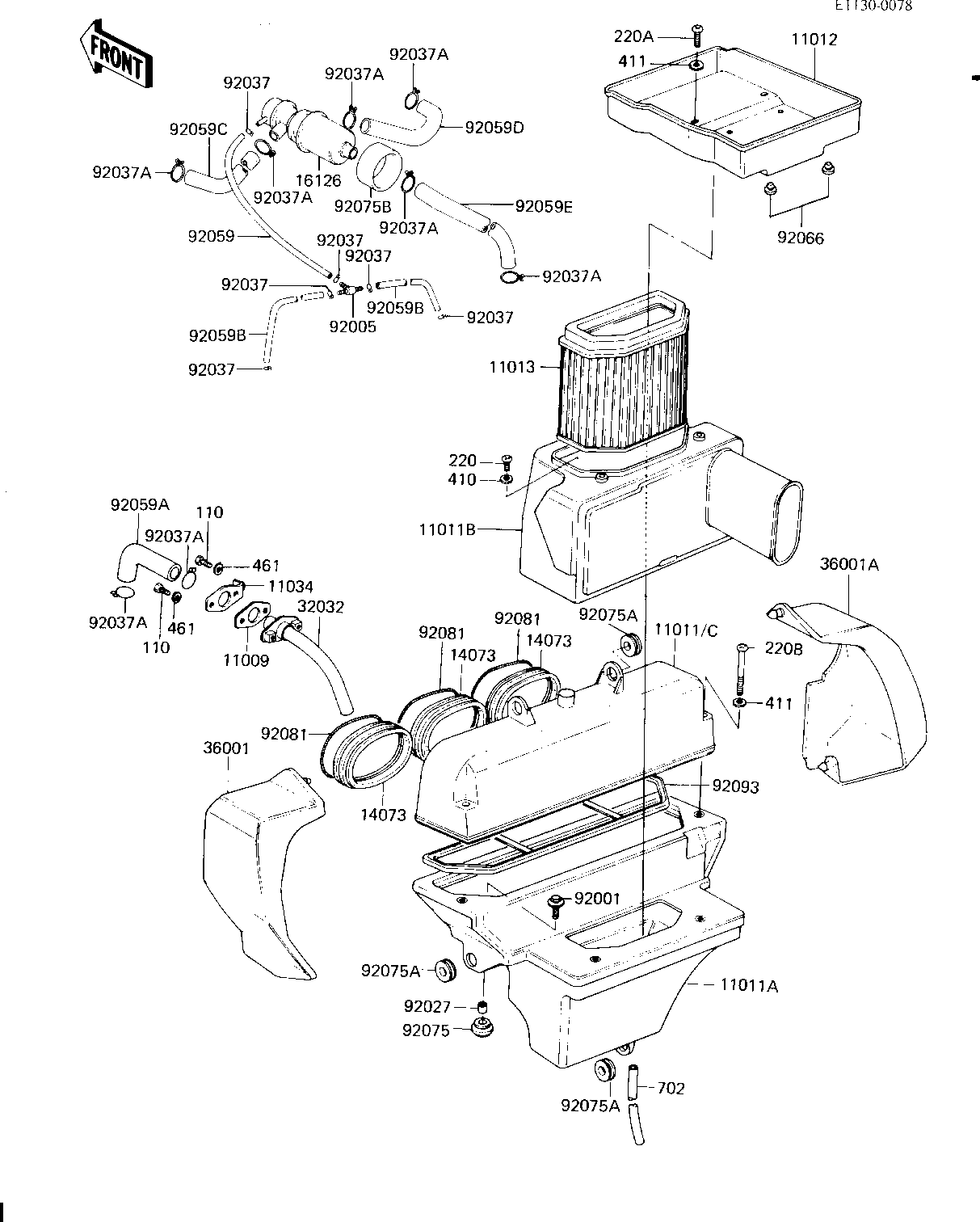

1982 KZ1300-A4 - AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,BREATHER PIPE 11009 11009-1097 1
CASE,AIR CLEANER,FRNT 11011 11011-1021 1 US
CASE,AIR CLEANER LOWR 11011A 11011-1022 1
CASE,AIR CLEANER,REAR 11011B 11011-1023 1
CASE,AIR CLEANER,FR 11011C 11011-1098 1 CN
CAP,AIR CLEANER 11012 11012-1062 1
ELEMENT,AIR CLNR 11013 11013-1014 1
BRACKET,FUEL VALVE 11034 11034-1561 1
DUCT,AIR CLEANER 14073 14073-1015 3
VALVE ASSY,AIR SWITNG 16126 16126-1015 1 US
PIPE,BREATHER 32032 32032-1199 1
COVER-SIDE AR FLTR,LH 36001 36001-1121 1
COVER SIDE AR FLTR RH 36001A 36001-1122 1
BOLT,6X25,W/WASHER 92001 92001-1140 2
FITTING,TUBE 92005 92005-1017 1 US
COLLAR 6.8X10X10.5 92027 92027-120 2
CLAMP-PIPE 92037 92037-072 6 US
CLAMP,BREATHER TUBE 92037A 92037-213 2 CN
CLAMP,BREATHER TUBE 92037A 92037-213 8 CN
TUBE,VACUUM,LONG 92059 92059-1162 1 US
TUBE,BREATHER PIPE 92059A 92059-1053 1
TUBE,4X5X100,VACUUM 92059B 92059-1058 2 US
TUBE,SWITCH VALVE,L.H 92059C 92059-1076 1 US
TUBE,SWITCH VALVE,R.H 92059D 92059-1077 1 US
TUBE,SWITH VALVE,CLNR 92059E 92059-1078 1 US
PLUG,RUBBER 92066 92074-028 2
DAMPER,AIR CLEANER 92075 92075-1124 2
DAMPER,CLEANER COVER 92075A 92075-1126 5
DAMPER,AIR SWITCHNG,V 92075B 92075-1195 1 US
SPRING,CLEANER DUCT 92081 92081-1150 3
SEAL,CLEANER LWR CASE 92093 92093-1025 1
BOLT-UPSET,6X16 110 112G0616 2
SCREW PAN HEAD 6X12 220 220B0612 2
SCREW PAN HEAD 6X20 220A 220B0620 2
SCREW PAN HEAD 6X55 220B 220B0655 2
WASHER PLAIN 6MM 410 410B0600 2
WASHER PLAIN 6MM 411 411B0600 4
WASHER SPRING 6MM 461 461F0600 2
TUBE-RUBBER,6X110 702 702A06110 1
