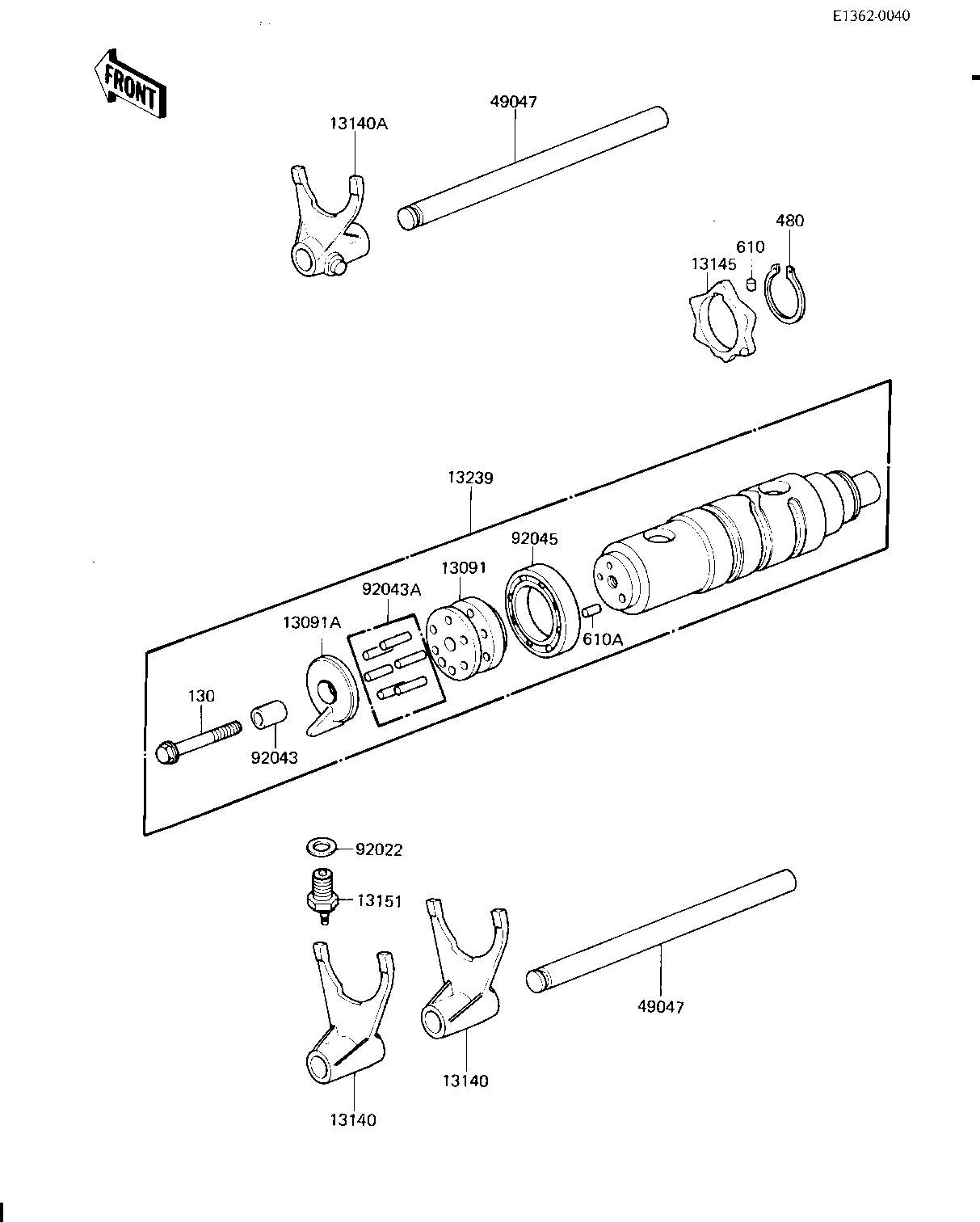

1982 KZ1300-A4 - GEAR CHANGE DRUM & FORKS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,BEARING | 13091 | 13091-1113 | 1 | ||
| HOLDER,DRUM PIN | 13091A | 13091-1114 | 1 | ||
| FORK-SHIFT,LOW,2,3RD | 13140 | 13140-1050 | 2 | ||
| FORK-SHIFT,4TH&TOP | 13140A | 13140-1051 | 1 | ||
| CAM-CHANGE DRUM | 13145 | 13145-1058 | 1 | ||
| SWITCH,NEUTRAL | 13151 | 13151-1007 | 1 | ||
| DRUM ASSY,GEAR CHANGE | 13239 | 13239-1050 | 1 | ||
| ROD,SHIFT,12X173 | 49047 | 49047-1008 | 2 | ||
| GASKET CHECK VALVE | 92022 | 92065-058 | 1 | ||
| PIN-DOWEL | 92043 | 92042-007 | 1 | ||
| PIN GEAR CHANGE DRUM | 92043A | 92042-014 | 6 | ||
| BEARING,BALL,#6906 | 92045 | 92045-1016 | 1 | ||
| BOLT,FLANGED,6X40 | 130 | 130G0640 | 1 | ||
| CIRCLIP,30MM | 480 | 480J3000 | 1 | ||
| PIN-DOWEL,4X6 | 610 | 610A0406 | 1 | ||
| PIN DOWEL 4X8 | 610A | 610A0408 | 1 |
