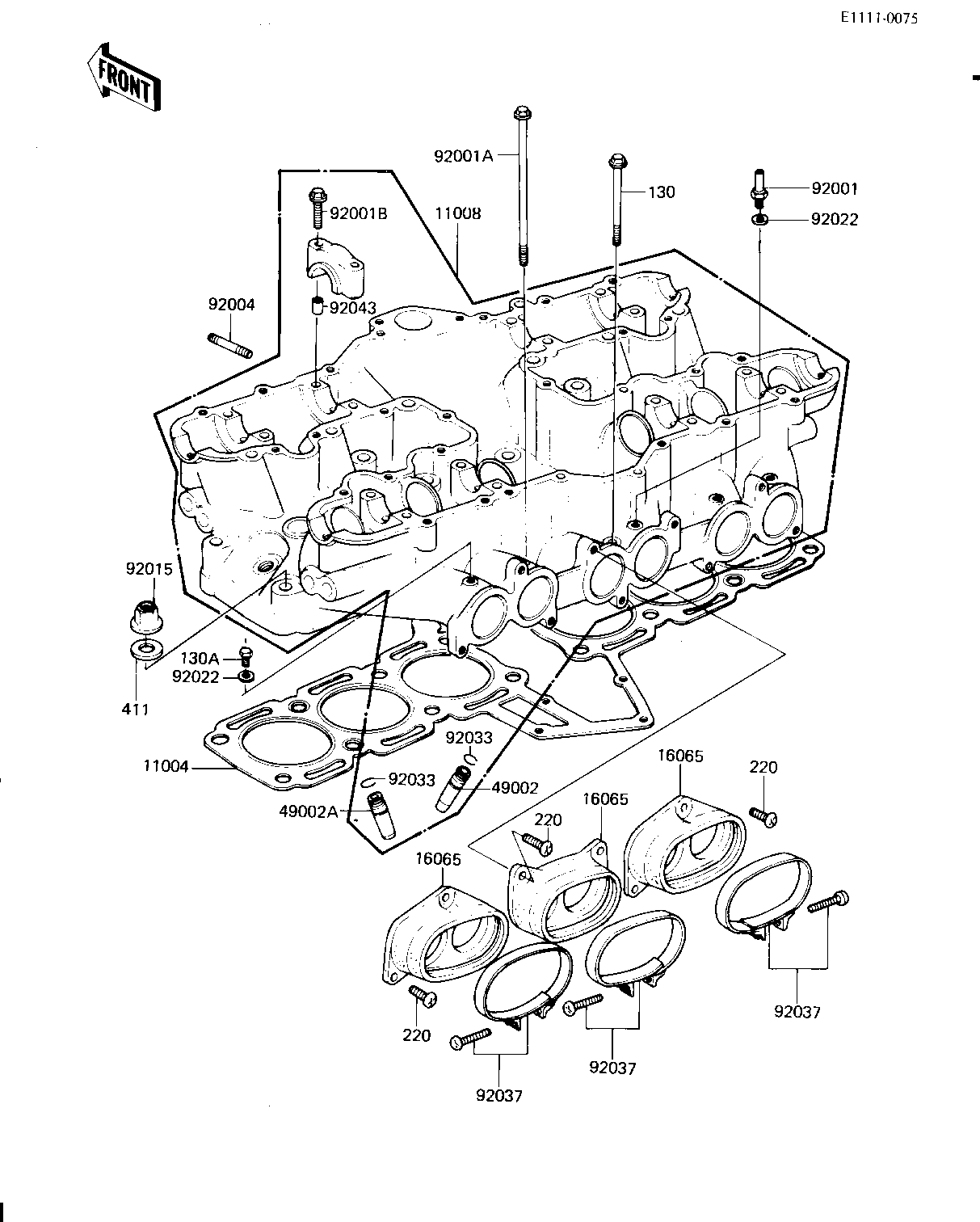

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HEAD,CYLINDER | 11004 | 11004-1014 | 1 | ||
| HEAD-COMP-CYLINDER | 11008 | 11008-1022 | 1 | ||
| HOLDER,CARBURETOR | 16065 | 16065-1016 | 3 | ||
| GUIDE,INLET VALVE | 49002 | 12013-009 | 6 | ||
| GUIDE,EXHAUST VALVE | 49002A | 49002-1002 | 6 | ||
| BOLT,VACUUM | 92001 | 92001-1143 | 2 | US | |
| BOLT,HEX HEAD,6X161 | 92001A | 92001-1302 | 16 | ||
| BOLT,HEX HEAD,6X45 | 92001B | 92003-092 | 12 | ||
| STUD,6X27 | 92004 | 92004-066 | 12 | ||
| NUT,CYLINDER HEAD | 92015 | 92015-076 | 16 | ||
| WASHER,PLAIN | 92022 | 92022-304 | 6 | ||
| CIRCLIP-VALVE | 92033 | 92036-023 | 12 | ||
| CLAMP,CARBURETOR HLDR | 92037 | 92037-1119 | 3 | ||
| PIN-DOWEL | 92043 | 92042-007 | 16 | ||
| BOLT,FLANGED,6X65 | 130 | 130G0665 | 3 | ||
| BOLT,FLANGED,6X8 | 130A | 130B0608 | 4 | US | |
| BOLT,FLANGED,6X8 | 130A | 130B0608 | 6 | US | |
| SCREW PAN HEAD 6X16 | 220 | 220B0616 | 9 | ||
| WASHER PLAIN 10MM | 411 | 411B1000 | 16 |
| GASKET,HEAD,CYLINDER | |
| REF # | 11004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HEAD-COMP-CYLINDER | |
| REF # | 11008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CARBURETOR | |
| REF # | 16065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GUIDE,INLET VALVE | |
| REF # | 49002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GUIDE,EXHAUST VALVE | |
| REF # | 49002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,VACUUM | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| BOLT,HEX HEAD,6X161 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X45 | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| STUD,6X27 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| NUT,CYLINDER HEAD | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-VALVE | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CARBURETOR HLDR | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X65 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X8 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X8 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | US |
| SCREW PAN HEAD 6X16 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 10MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
