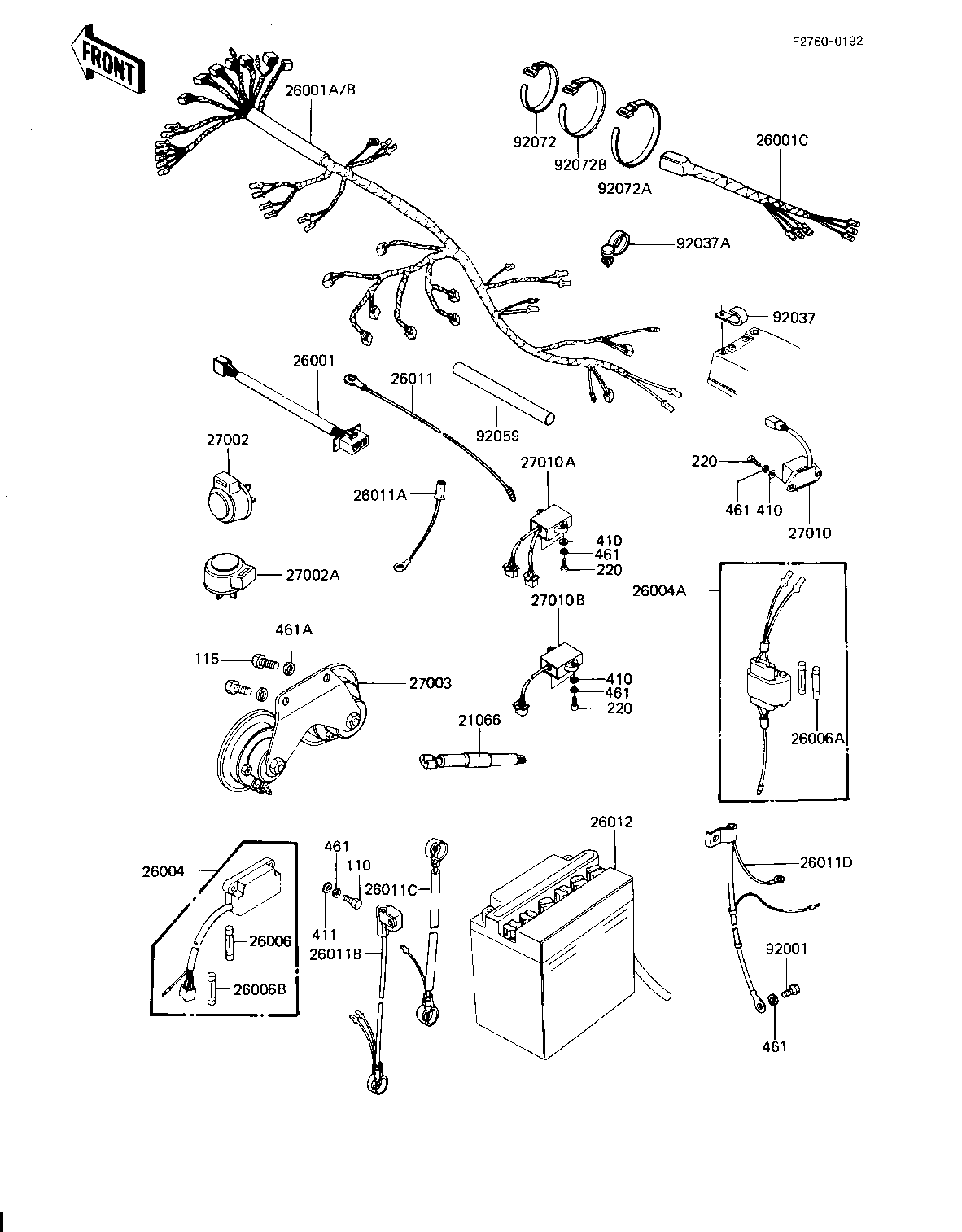

1982 Spectre - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REGULATOR 21066 21066-026 1
HARNESS,RESERVE LIGHT 26001 26001-1248 1
HARNESS,MAIN 26001A 26001-1305 1
WIRING HARNESS,REAR 26001C 26002-063 1
FUSE-ASSY 26004 26004-1011 1
FUSE-ASSY,ACCESSORY 26004A 26004-1014 1
FUSE 10A 26006 26006-003 5
FUSE,10A,L=30M/M 26006A 26006-1002 3
FUSE,30A,L=25M/M 26006B 26006-1005 2
WIRE,LEAD 26011 26011-095 2
WIRE-LEAD,ACCESSORY G 26011A 26011-1100 1
WIRE-LEAD 26011B 26011-1118 1
WIRE-LEAD,BATTERY,(-) 26011D 26011-1124 1
YUA BAT YB18L-A 26012 26012-1039 1
RELAY-TURN SIGNAL 27002 27002-011 1
RELAY,TURN SIGNAL 27002A 27002-016 1
HORN,F.BLACK 27003 27003-1064 1
SWITCH,RESERVE LIGHTI 27010 27010-1024 1
SWITCH,TRN SGNL LAMP 27010A 27010-1048 1
BOLT,HEX HEAD,6MM 92001 92001-137 1
CLAMP,WIRING HARNESS 92037 92037-1069 3
CLAMP 92037A 92037-1163 1
BAND,MIDDLE 92072 92072-031 7
BAND,LONG 92072A 92072-032 1
BAND,WIRING HARNESS 92072B 92072-056 3
BOLT 6X22 110 112B0622 2
BOLT-SMALL,8X16,BLACK 115 115C0816 2
SCREW PAN HEAD 6X20 220 220B0620 4
WASHER PLAIN 6MM 410 410B0600 4
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 7
WASHER-SPRING,8MM,BLA 461A 461K0800 2
