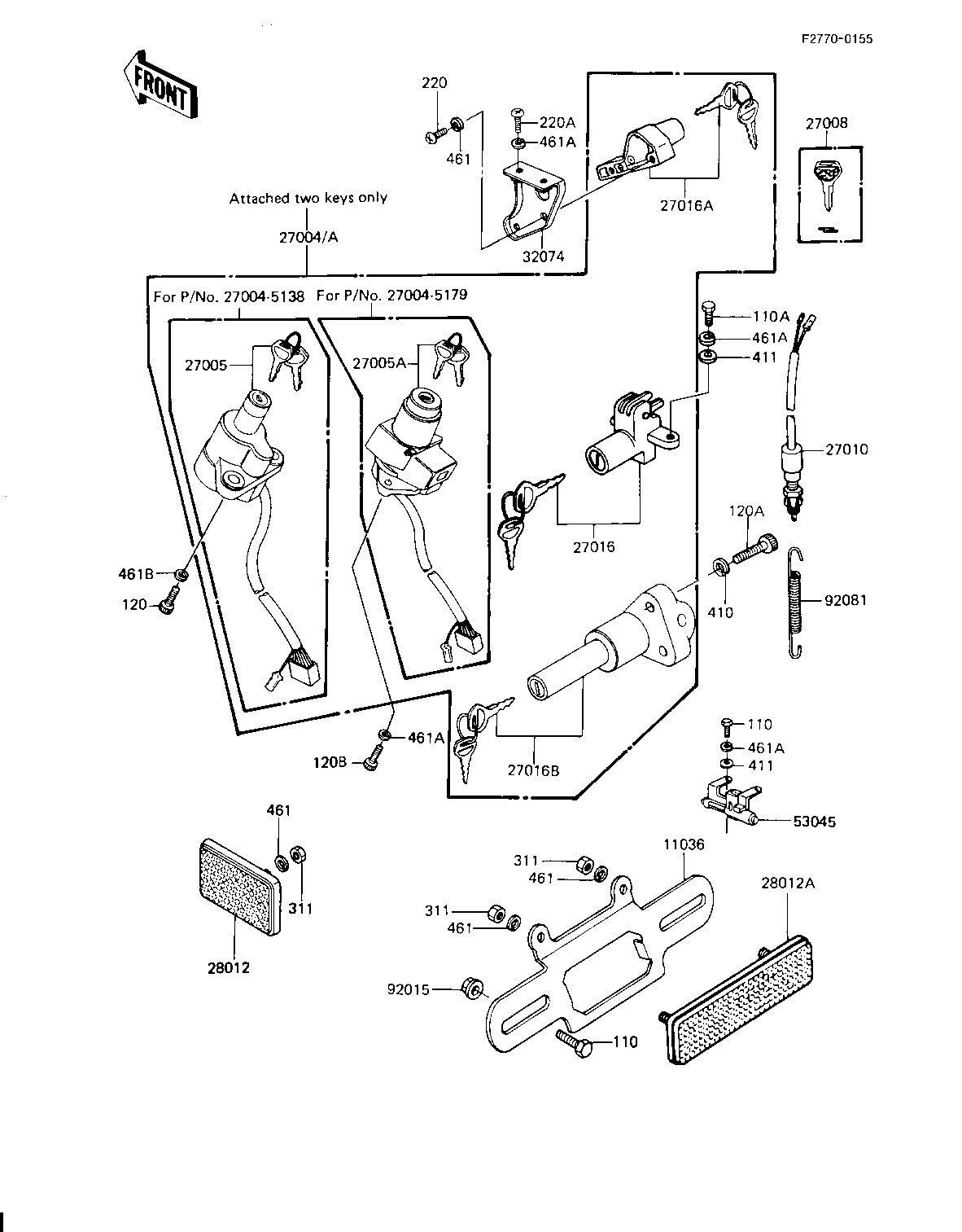

1982 Spectre - IGNITION SWITCH/LOCKS/REFLECTORS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REFLECTOR,RR | 11036 | 11036-1150 | 1 | ||
| SWITCH-ASSY,ALL | 27004 | 27004-5138 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5019 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | (OPTION) | |
| SWITCH,BRAKE LAMP | 27010 | 27010-1019 | 1 | ||
| LOCK ASSY,SEAT | 27016 | 27016-5015 | 1 | ||
| LOCK-ASSY,HELMET | 27016A | 27016-5070 | 1 | ||
| LOCK-ASSY,STAND | 27016B | 27016-5043 | 1 | ||
| REFLECTOR,REFLEX(FRON | 28012 | 28012-1003 | 2 | ||
| REFLECTOR,REAR REFLEX | 28012A | 28012-1005 | 1 | ||
| BRACKET-LOCK | 32074 | 32074-1026 | 1 | ||
| HOOK ASSY,HELMET | 53045 | 53045-1001 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| SPRING,BRAKE LAMP SWI | 92081 | 92081-1086 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 4 | ||
| BOLT-UPSET 6X14 | 110A | 112B0614 | 1 | ||
| BOLT,SOCKET,8X22 | 120 | 120P0822 | 2 | ||
| BOLT,SOCKET,8X30 | 120A | 120P0830 | 2 | ||
| SCREW PAN HEAD 5X8 | 220 | 220B0508 | 2 | ||
| SCREW PAN HEAD 6X10 | 220A | 220B0610 | 2 | ||
| NUT,5MM | 311 | 311B0500 | 4 | ||
| WASHER PLAIN 8MM | 410 | 410B0800 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 3 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 6 | ||
| WASHER SPRING 6MM | 461A | 461F0600 | 5 | ||
| WASHER SPRING 8MM | 461B | 461F0800 | 2 |
