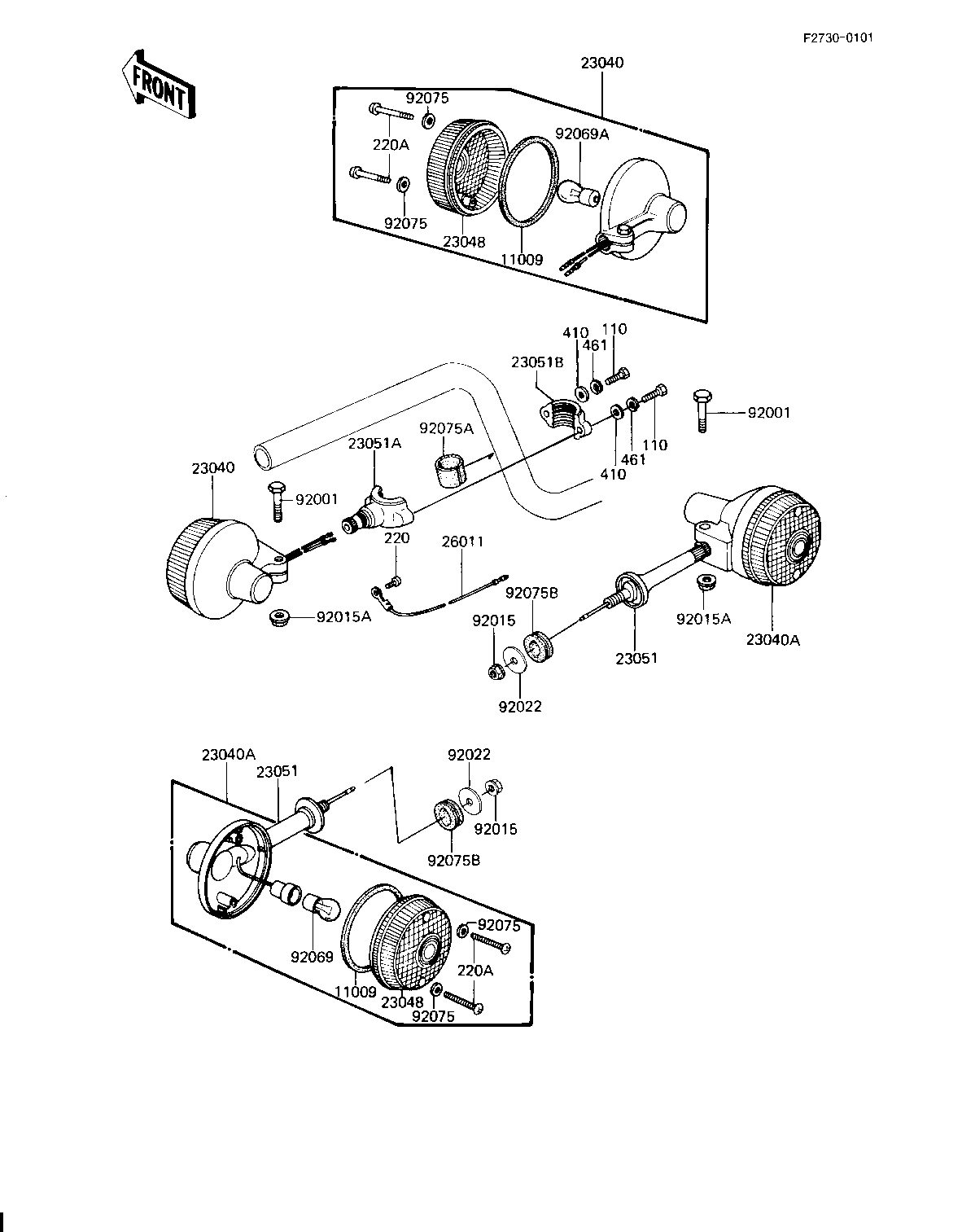

1982 Spectre - TURN SIGNALS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-SIG LAMP LENS 11009 23050-003 4
LAMP-SIGNAL,FR 23040 23040-1042 2
LAMP-SIGNAL,RR 23040A 23040-1043 2
LENS,TURN SIGNAL LAMP 23048 23048-1001 4
BRACKET-SIGNAL LAMP,R 23051 23051-1076 2
BRACKET-SIGNAL LAMP,F 23051A 23051-1077 2
BRACKET-SIGNAL LAMP,F 23051B 23051-1079 2
WIRE-TURN SIGNAL LEAD 26011 26011-061 2
BOLT,6X30,BLACK 92001 92001-1750 4
NUT,FLANGED,10MM 92015 92015-1428 2
NUT,FLANGED,6MM,BLACK 92015A 92015-1237 4
WASHER,10.5X37X1.6 92022 92022-1246 2
BULB 12V 32CP 92069 92069-055 2
BULB,12V 23/8W 92069A 92069-060 2
WASHER-PLAIN,4MM 92075 23058-002 8
DAMPER RUBBER 92075A 23066-003 2
DAMPER,SIGNAL LAMP 92075B 92075-1391 2
BOLT,5X16,BLACK 110 110C0516A 4
SCREW PAN HEAD 3X5 220 220B0305A 2
SCREW-PAN-CROS 220A 220B0420 8
WASHER PLAIN 410 410F0500 4
WASHER-SPRING,5MM,BLA 461 461K0500 4
