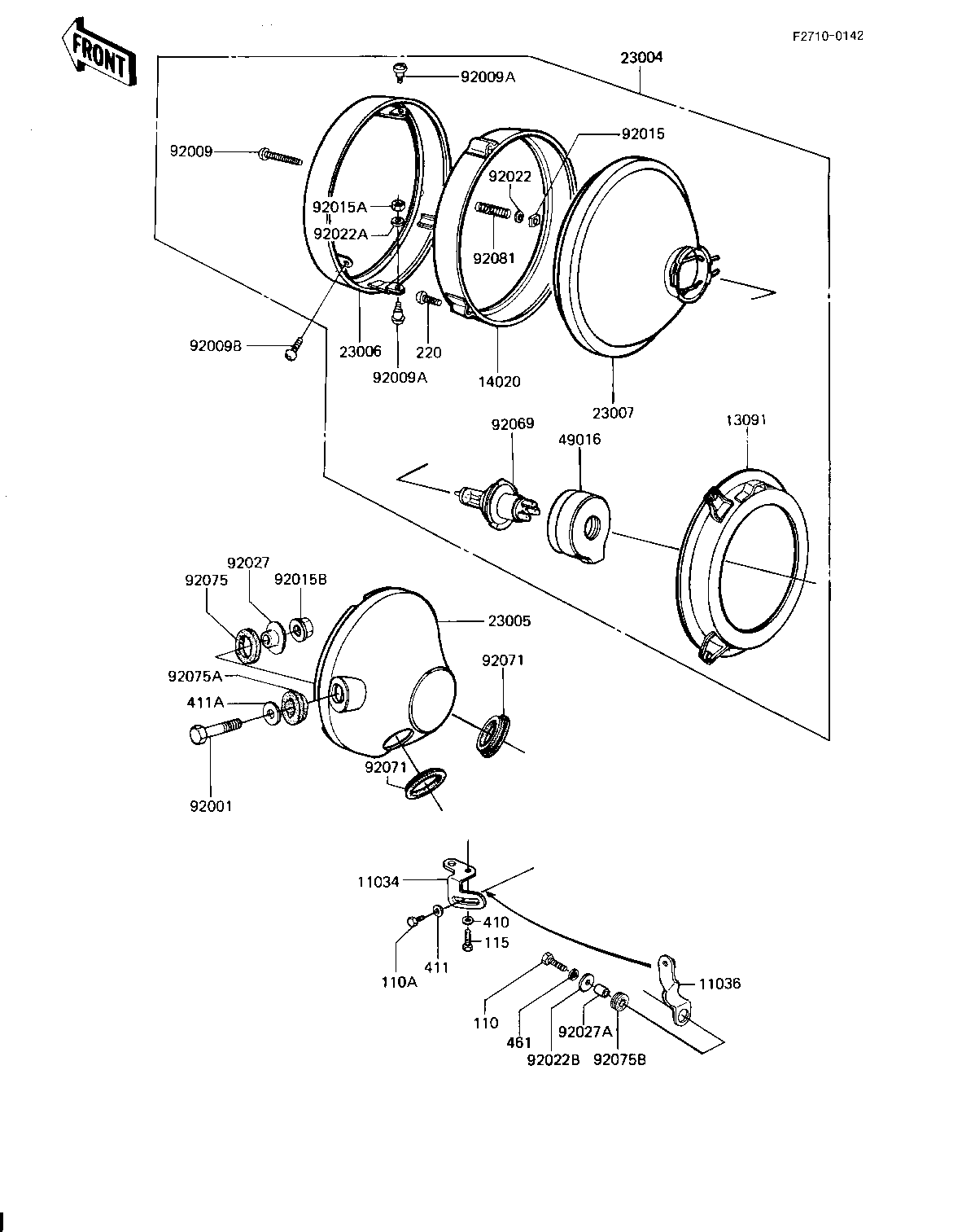

1982 Spectre - HEADLIGHT (KZ1100-D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET, 11034 11034-1792 1
BRACKET-A,HEAD LAMP,B 11036 11036-1468 1
RING,HEAD LAMP MOUNT 13091 23074-001 1
RING,HEAD LAMP MOUNT 14020 23072-001 1
LAMP-HEAD 23004 23004-1066 1
BODY-HEAD LAMP,EBONY 23005 23005-1015-8G 1
RIM-LAMP,BLACK 23006 23006-1015 1
LENS UNIT,HEAD LAMP 23007 23007-1009 1
DUST COVER 49016 49016-1016 1
BOLT,10MM 92001 92007-024 2
SCREW FORCUS ADJUST 92009 23019-021 1
SCREW-PAN HEAD,5X12 92009A 23019-023 2
SCREW,SPECIAL,5X14,BL 92009B 92009-1149 2
NUT,4MM 92015 23020-018 1
NUT,HEAD LAMP RIM FIT 92015A 23020-023 2
NUT,FLANGED,10MM 92015B 92015-1428 2
WASHER 92022 23021-004 1
WASHER-PLAIN,5MM 92022A 23021-012 2
WASHER 6.5X20X1.6T 92022B 92022-125 1
COLLAR,HEAD LIGHT 92027 23052-011 2
COLLAR,REAR FENDER 92027A 92027-162 1
BULB,12V-60/55W 92069 92069-1002 1
GROMMET 92071 92071-1008 2
DAMPER RUBBER 92075 23066-021 2
DAMPER RUBBER 92075A 23066-022 2
DAMPER RUBBER,RR FENR 92075B 92075-209 1
SPRING FOCUS ADJUST 92081 23014-005 1
BOLT-UPSET 110 112G0625 1
BOLT, 6X14, BLACK 110A 112C0614 1
BOLT-SMALL,8X16,BLACK 115 115C0816 1
SCREW PAN HEAD 3X12 220 220B0312 2
WASHER,PLAIN,8MM 410 92022-1554 1
WASHER PLAIN 411 411F0600 1
WASHER-PLAIN,10MM 411A 411D1000 2
WASHER SPRING 6MM 461 461F0600 1
