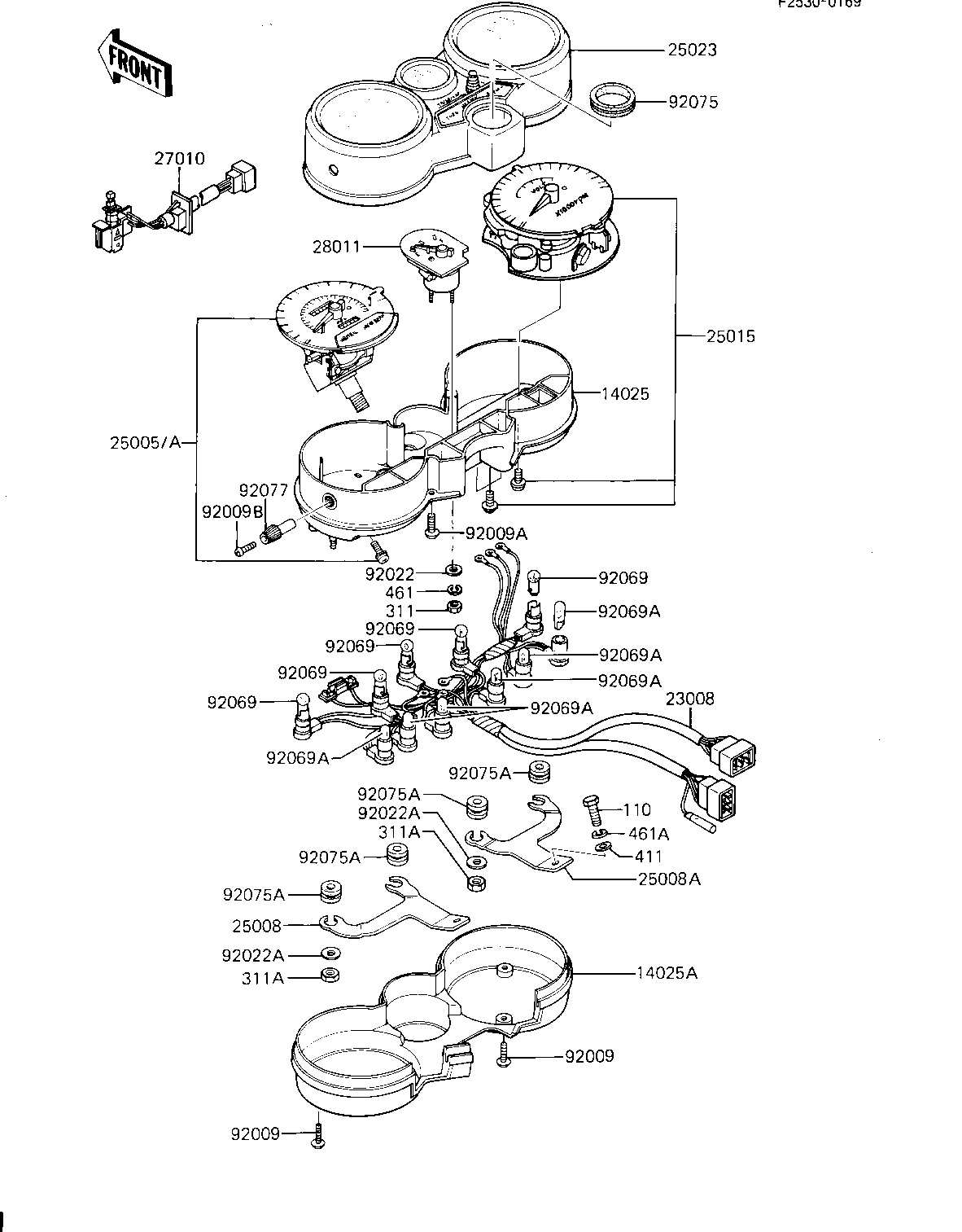

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER HOUSING | 14025 | 14025-1594 | 1 | ||
| COVER,METER CASE,LWR | 14025A | 14025-1595 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1174 | 1 | ||
| SPEEDOMETER,MPH | 25005 | 25005-1202 | 1 | US | |
| SPEEDOMETER,KPH (Canada) | 25005A | 25005-1203 | 1 | CN | |
| BRACKET-METER,LH | 25008 | 25008-1053 | 1 | ||
| BRACKET-METER,RH | 25008A | 25008-1054 | 1 | ||
| TACHOMETER,X1000RPM | 25015 | 25015-1136 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1045 | 1 | ||
| SWITCH TACHO/JOLT | 27010 | 27010-1090 | 1 | ||
| METER,FUEL | 28011 | 28011-1033 | 1 | ||
| SCREW,4X16,BLACK | 92009 | 92009-1158 | 4 | ||
| SCREW,TAPPING,4X16 | 92009A | 92009-1163 | 4 | ||
| SCREW,2X6,BLACK | 92009B | 92009-1172 | 1 | ||
| WASHER | 92022 | 92022-1374 | 3 | ||
| WASHER,PLAIN,6MM | 92022A | 92022-263 | 4 | ||
| BULB 12V 1.5W | 92069 | 92069-017 | 5 | ||
| BULB,12V3.4W | 92069A | 92069-1007 | 6 | ||
| DAMPER RUBBER | 92075 | 92075-1256 | 1 | ||
| DAMPER,METER BRACKET | 92075A | 92075-1435 | 4 | ||
| KNOB,METER | 92077 | 92077-1015 | 1 | ||
| BOLT, 6X14, BLACK | 110 | 112C0614 | 2 | ||
| NUT-HEX | 311 | 311B0300 | 3 | ||
| NUT,5MM | 311A | 311B0500 | 4 | ||
| WASHER PLAIN | 411 | 411F0600 | 2 | ||
| WASHER SPRING 3MM | 461 | 461F0300 | 3 | ||
| WASHER-SPRING,6MM,BLA | 461A | 461K0600 | 2 |
