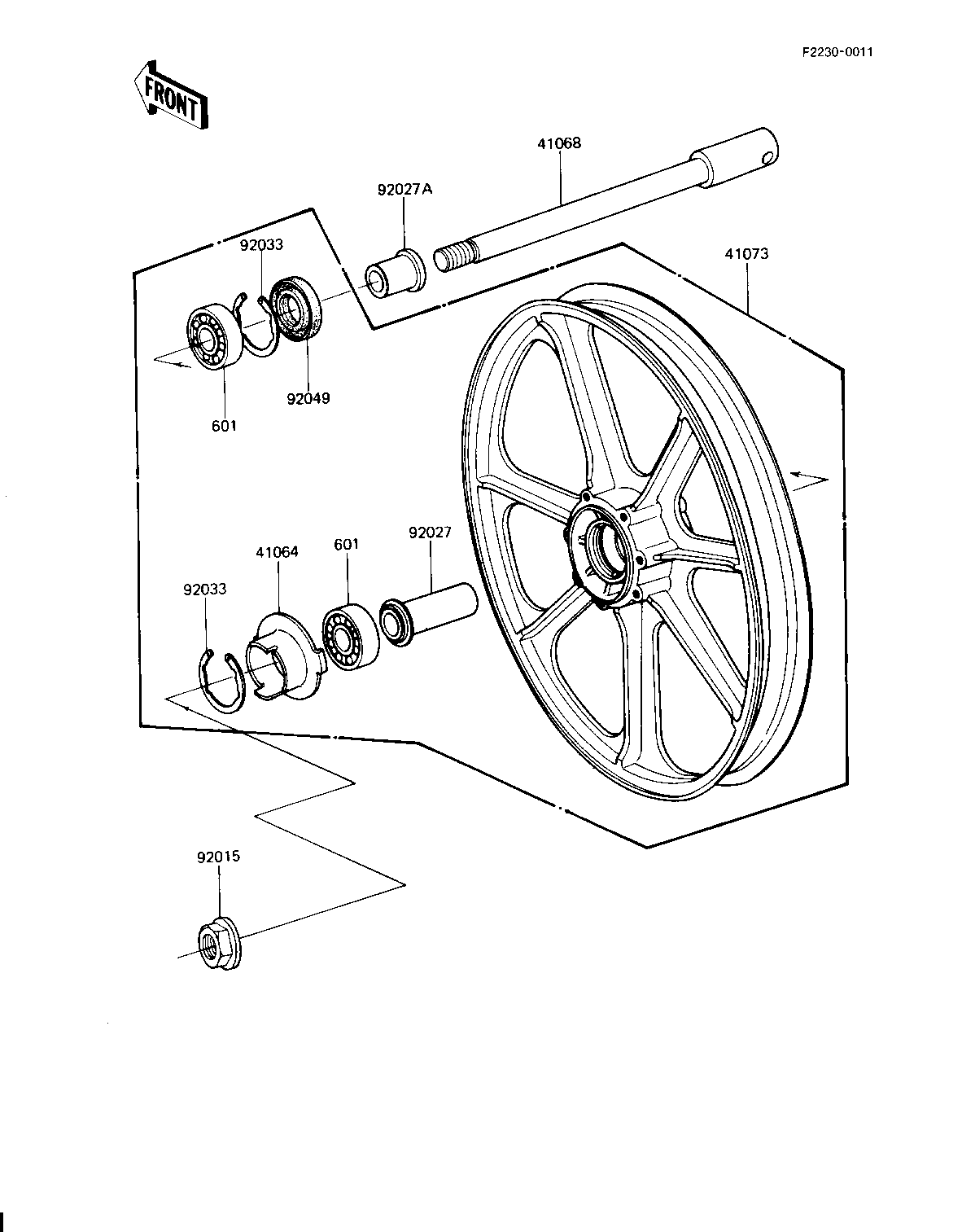

1982 Spectre - FRONT WHEEL/HUB (KZ1100-D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RECEIVER-SPEEDOMETER | 41064 | 41064-1008 | 1 | ||
| AXLE,FRONT,L=204M/M | 41068 | 41068-1009 | 1 | ||
| WHEEL-ASSY,FR,SOLID,G | 41073 | 41073-1129-F6 | 1 | ||
| NUT,14MM | 92015 | 92015-1407 | 1 | ||
| COLLAR,FR HUB L=55M/M | 92027 | 92027-1223 | 1 | ||
| COLLAR,FR AXLE L=30MM | 92027A | 92027-1225 | 1 | ||
| CIRCLIP,42MM | 92033 | 92033-1041 | 2 | ||
| OIL SEAL,AG1144AO | 92049 | 92049-1058 | 1 | ||
| BEARING BALL #6302Z | 601 | 601B6302Z | 2 |
| RECEIVER-SPEEDOMETER | |
| REF # | 41064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FRONT,L=204M/M | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL-ASSY,FR,SOLID,G | |
| REF # | 41073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR HUB L=55M/M | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR AXLE L=30MM | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,42MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,AG1144AO | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6302Z | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
