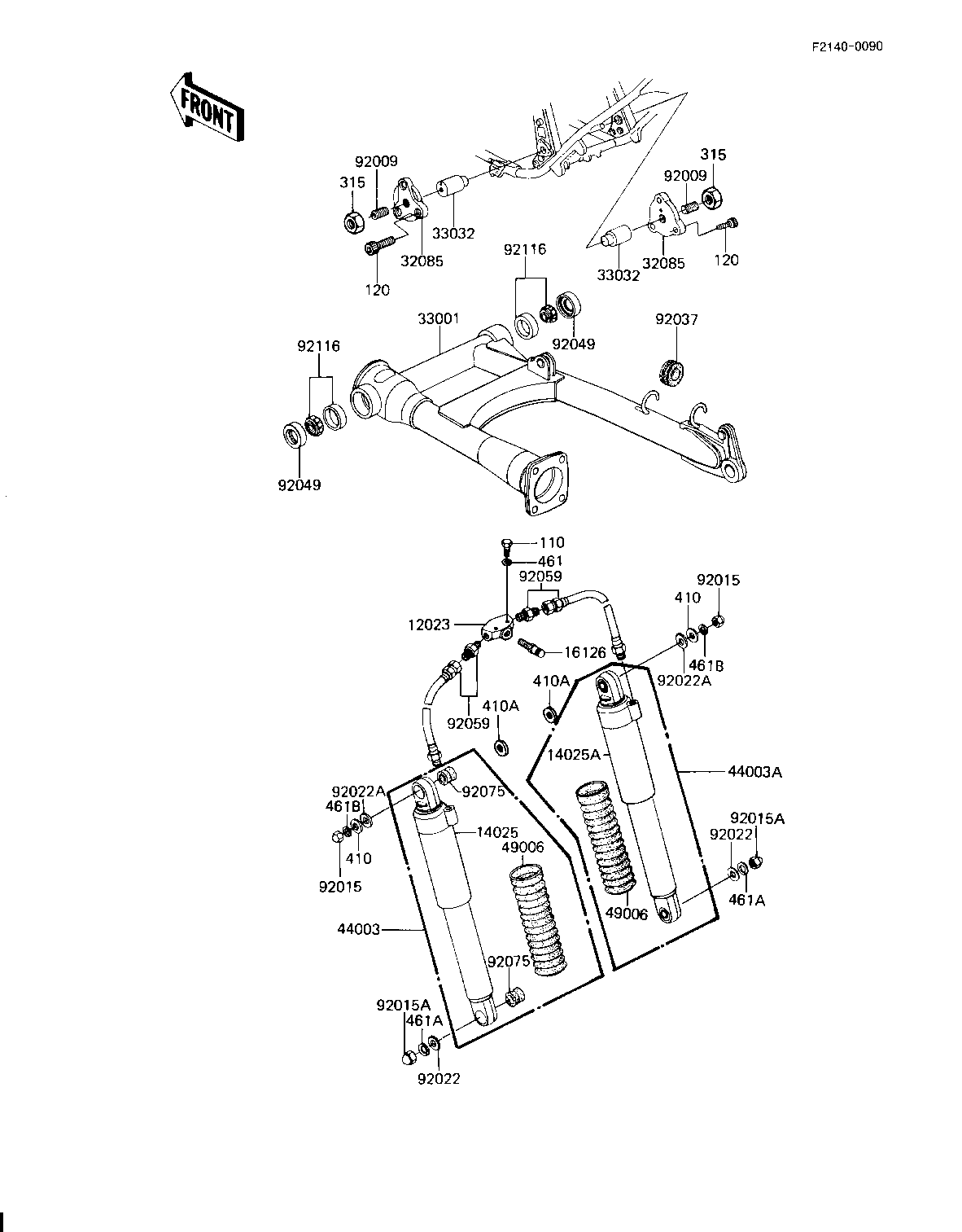

1982 Spectre - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-VALVE,AIR 12023 12023-1012 1
COVER,SHOCKABSORBER,L 14025 14025-1488 1
COVER,SHOCKABSORBER,R 14025A 14025-1489 1
VALVE AIR 16126 16126-1052 1
STOPPER,SWING ARM 32085 32085-1071 2
ARM-COMP-SWING 33001 33001-1102 1
SHAFT-SWING ARM 33032 33032-1021 2
DAMPER-ASSY,RR,LH,GOL 44003 44003-1239 1
DAMPER-ASSY,RR,RH,GOL 44003A 44003-1240 1
BOOT,RR SHOCKABSORBER 49006 49006-1077 2
SCREW,14X22 92009 92009-1087 2
NUT,LOCK,CAP,12MM,BLA 92015 92015-1192 2
NUT,CAP,10MM,BLACK 92015A 92015-1203 2
WASHER,10.5X30X2.3,BL 92022 92022-1302 2
WASHER,12.4X28X2.3,BL 92022A 92022-1303 2
DAMPER RUBBER 92037 43064-007 2
OIL SEAL,26406 92049 92049-1030 2
TUBE,SHOCKABSORBER,RR 92059 92059-1194 2
BUSHING,SHOCK ABSORBE 92075 92075-1141 4
BRG,ROLLER,4T30203E1 92116 92116-1001 2
BOLT-UPSET 6X14 110 112B0614 2
BOLT-SOCKET,8X20 120 120S0820 6
NUT 14MM 315 315B1400 2
WASHER-PLANE-SMALL 410 410F1200 2
WASHER-PLANE-SMALL 410A 410F1400 2
WASHER SPRING 6MM 461 461F0600 2
WASHER-SPRING,10MM 461A 461K1000 2
WASHER-SPRING,12MM,BL 461B 461K1200 2
