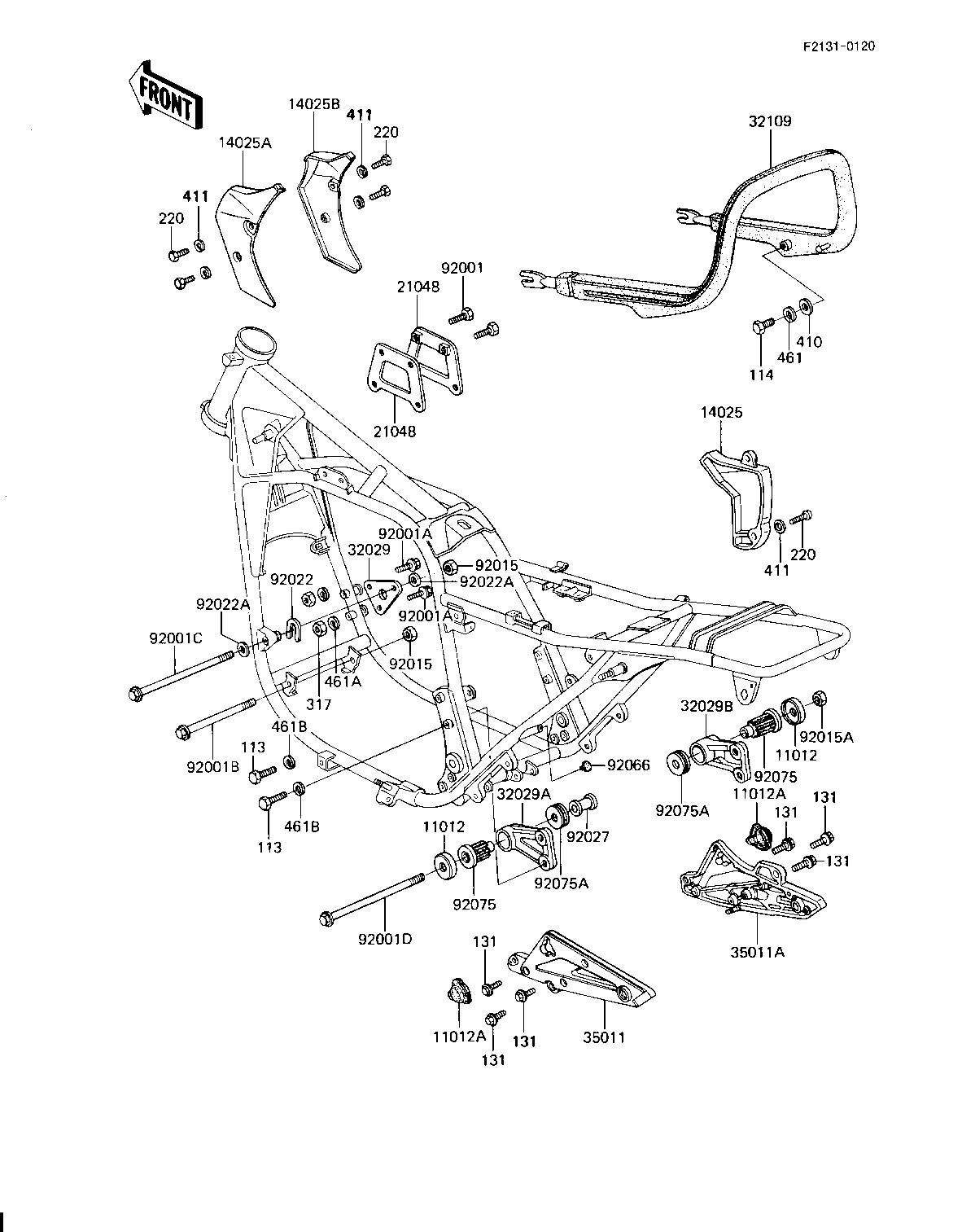

1982 Spectre - FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,ENG MOUNT DAMPER 11012 11012-1182 2
CAP,MUFFLER STAY 11012A 11012-1240 2
COVER,ORNAMENT,RH 14025 14025-1375 1
COVER,FUEL TANK,LH,BL 14025A 14025-1388 1
COVER,FUEL TANK,RH,BL 14025B 14025-1389 1
PLATE,IGNITION COIL 21048 21048-1001 2
BRACKET-ENGINE 32029 32029-1142 1
BRACKET-ENGINE,RR,LH 32029A 32029-1163 1
BRACKET-ENGINE,RR,RH 32029B 32029-1164 1
GRIP-FRAME,BLACK 32109 32109-1030 1
STAY,MUFFLER,LH 35011 35011-1109 1
STAY,MUFFLER,RH 35011A 35011-1110 1
BOLT,HEX HEAD,6MM 92001 92001-137 4
BOLT,FLANGED,8X65,BLA 92001A 92001-1616 2
BOLT,FLANGED,10X155,B 92001B 92001-1620 1
BOLT,FLANGED,10X320,B 92001C 92001-1624 1
BOLT,FLANGED,10X320,B 92001D 92001-1625 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT,LOCK,12MM,BLACK 92015A 92015-1190 1
WASHER,U FORMED 92022 92022-1259 1
WASHER,PLAIN 92022A 92022-1022 2
COLLAR,13X25X39.5,BLA 92027 92027-1433 1
PLUG,FRAME END 92066 92066-1034 1
DAMPER,ENG MOUNT,RR,I 92075 92075-1330 2
DAMPER,ENG MOUNT,RR,S 92075A 92075-1331 2
BOLT-SMALL, 10X45,BLK 113 113J1045 4
BOLT-SMALL-UPSET,8X16 114 115G0816 2
BOLT-FLANGED,8X35,BLA 131 131J0835 6
SCREW-PAN-CROS, 6X14 220 220C0614 6
NUT-HEX-SMALL,8MM,BLA 317 317C0800 2
WASHER PLAIN 8MM 410 410B0800 2
WASHER PLAIN 411 411F0600 6
WASHER SPRING 8MM 461 461F0800 2
WASHER-SPRING,8MM,BLA 461A 461K0800 2
WASHER-SPRING,10MM 461B 461K1000 4
