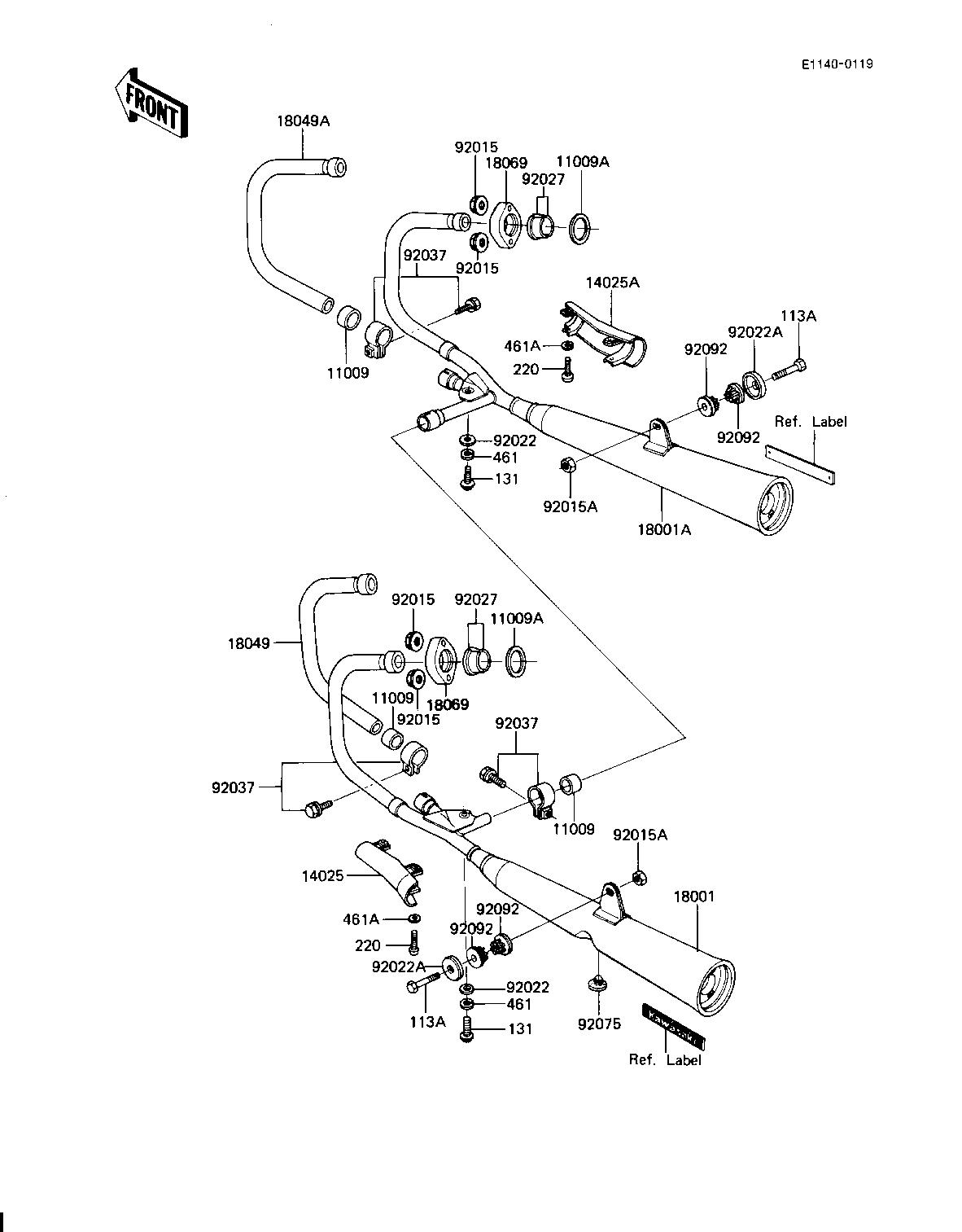

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MANIFOLD EXHAU | 11009 | 11060-1068 | 3 | ||
| GASKET,EXHAUST PIPE H | 11009A | 11009-1906 | 4 | ||
| COVER,MUFFLER,LH,BLAC | 14025 | 14025-1412 | 1 | ||
| COVER,MUFFLER,RH,BLAC | 14025A | 14025-1413 | 1 | ||
| MUFFLER,L.H.BLACK | 18001 | 18001-5080 | 1 | ||
| MUFFLER,RH,BLACK | 18001A | 18001-5081 | 1 | ||
| PIPE-EXHAUST,#2,BLACK | 18049 | 18049-1192 | 1 | ||
| PIPE-EXHAUST,#3,BLACK | 18049A | 18049-1193 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1019 | 4 | ||
| NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 8 | ||
| NUT,LOCK,10MM | 92015A | 92019-021 | 2 | ||
| WASHER,PLAIN | 92022 | 92022-1022 | 2 | ||
| WASHER,CUP TYPE,BLACK | 92022A | 92022-1313 | 2 | ||
| COLLAR,EXHAUST PIPE,B | 92027 | 92027-1457 | 8 | ||
| CLAMP,MUFFLER,BLACK | 92037 | 92037-1270 | 3 | ||
| DAMPER RUBBER,MAIN ST | 92075 | 92075-1002 | 1 | ||
| BUSHING-RUBBER | 92092 | 92092-1013 | 4 | ||
| BOLT HEX HEAD 10X80 | 113 | 113B1080 | 2 | ||
| BOLT-FLANGED,10X55 | 131 | 131J1055 | 2 | ||
| SCREW-PAN-CROS,6X45,B | 220 | 220C0645 | 4 | ||
| WASHER SPRING 10MM | 461 | 461F1000 | 2 | ||
| WASHER-SPRING,6MM,BLA | 461A | 461K0600 | 4 |
| GASKET,MANIFOLD EXHAU | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE H | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER,MUFFLER,LH,BLAC | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,MUFFLER,RH,BLAC | |
| REF # | 14025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER,L.H.BLACK | |
| REF # | 18001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER,RH,BLACK | |
| REF # | 18001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST,#2,BLACK | |
| REF # | 18049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST,#3,BLACK | |
| REF # | 18049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-EXHAUST PIPE | |
| REF # | 18069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,CUP TYPE,BLACK | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,EXHAUST PIPE,B | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MUFFLER,BLACK | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,MAIN ST | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 10X80 | |
| REF # | 113 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X55 | |
| REF # | 131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X45,B | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,6MM,BLA | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
