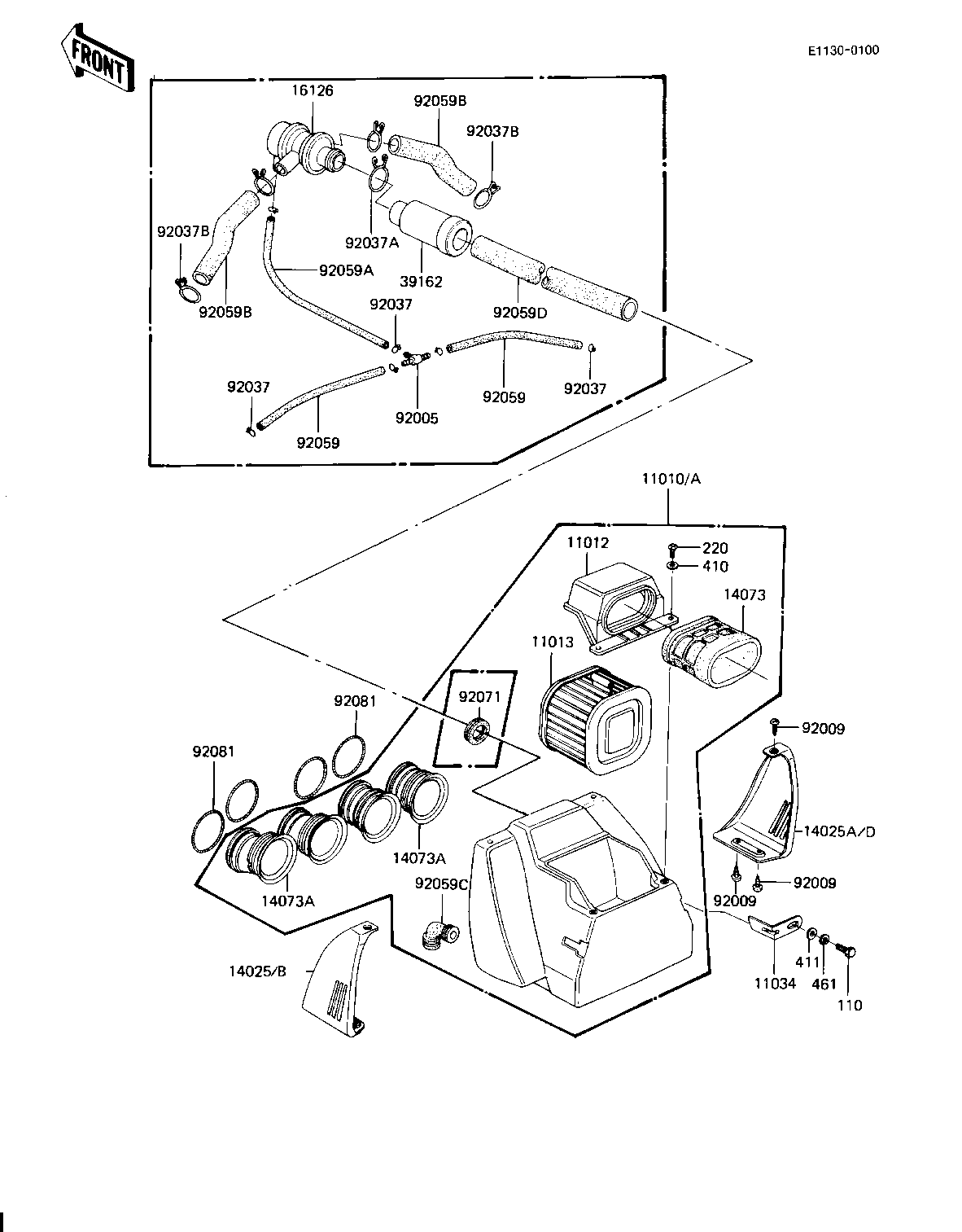

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR (Canada) | 11010 | 11010-1115 | 1 | CN | |
| FILTER-ASSY-AIR | 11010A | 11010-1143 | 1 | US | |
| CAP,AIR FILTER | 11012 | 11012-1167 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-1037 | 1 | ||
| BRACKET,AIR CLEANER | 11034 | 32070-038 | 2 | ||
| COVER,AIR FILTER,LH,B | 14025 | 14025-1507 | 1 | (SUBSTITUTES 14025-1507) | |
| COVER,AIR FILTER,RH,B | 14025A | 14025-1508 | 1 | (SUBSTITUTES 14025-1508) | |
| DUCT,AIR FILTER,INTAK | 14073 | 14073-1049 | 1 | ||
| DUCT,AIR FILTER,OUTLE | 14073A | 14073-1055 | 4 | ||
| VALVE ASSY,AIR SWITCH | 16126 | 16126-1014 | 1 | US | |
| SILENCER | 39162 | 39162-1003 | 1 | US | |
| FITTING,TUBE | 92005 | 92005-1017 | 1 | US | |
| SCREW,TAPPING,5X12,BL | 92009 | 92009-1138 | 6 | ||
| CLAMP-PIPE | 92037 | 92037-072 | 6 | US | |
| CLAMP | 92037A | 92037-1076 | 1 | US | |
| CLAMP,BREATHER TUBE | 92037B | 92037-213 | 4 | US | |
| TUBE,VACUUM,LONG | 92059 | 92059-1162 | 2 | US | |
| TUBE,VACUUM,LONG | 92059A | 92059-1162 | 1 | US | |
| TUBE,14X20X89 | 92059B | 92059-1155 | 2 | US | |
| TUBE,AIR FILTER BLEED | 92059C | 92059-1170 | 1 | ||
| TUBE,14X20X340 | 92059D | 92059-1171 | 1 | US | |
| GROMMET,AIR FILTER | 92071 | 92071-1042 | 1 | US | |
| SPRING,COIL,BLACK | 92081 | 92081-1457 | 4 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 2 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 |
