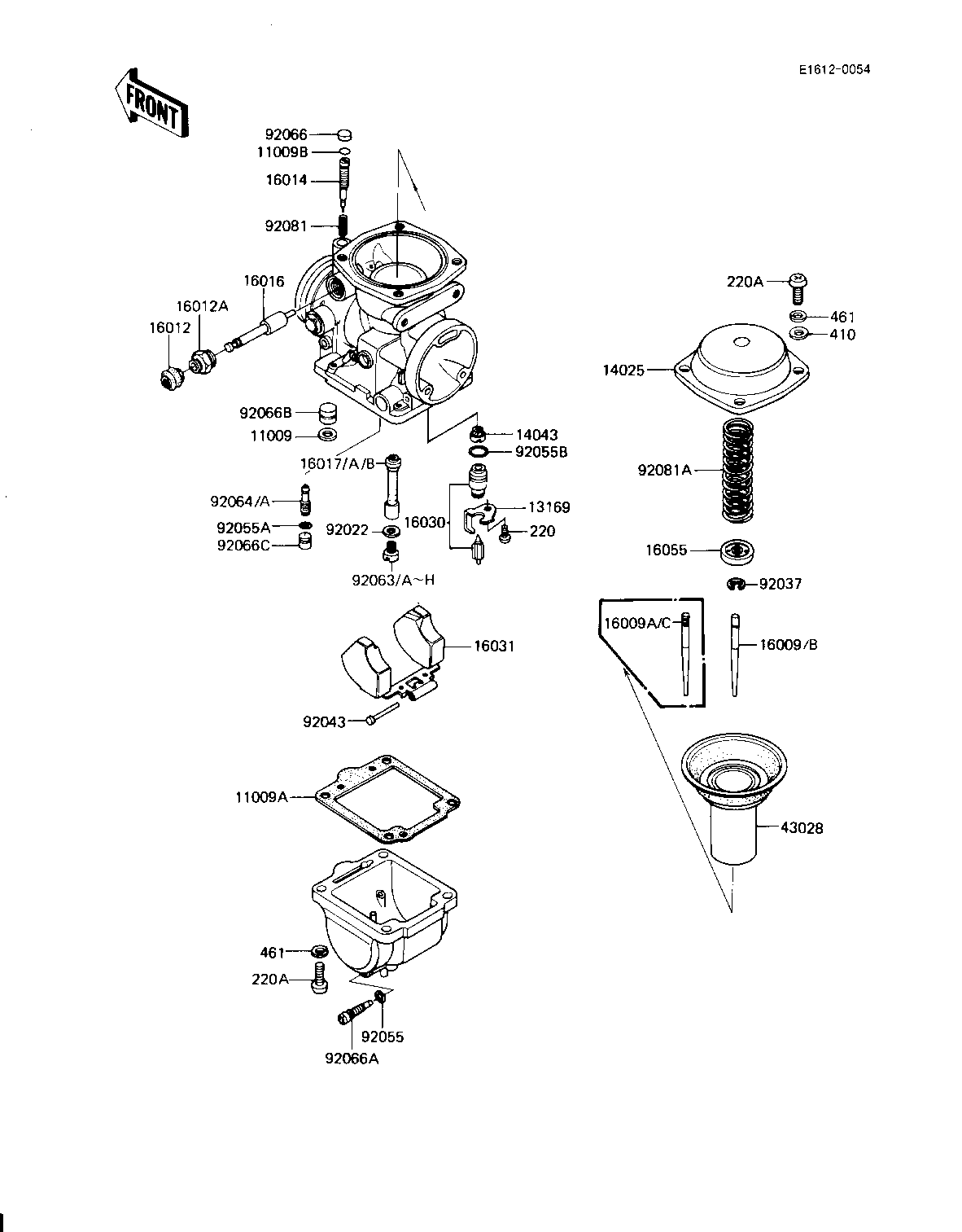

1982 Spectre - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CARB. PLUG 11009 11009-1240 4
GASKET,FLOAT CHAMBER 11009A 11009-1241 4
"O" RING 11009B 16038-022 4
PLATE 13169 13169-1482 4
TOP-CHAMBER,MIXING 14025 14025-1527 4
FILTER,FLOAT VALVE 14043 14043-1010 4
NEEDLE-JET 16009 16009-1107 4 US
*** N.L.A.*** (Canada) 16009A 16009-1108 4 CN
CAP-STARTER PLUNGER 16012 16012-1010 4
CAP-STARTER PLUNGER 16012A 16012-1011 4
SCREW-PILOT AIR 16014 16014-1014 4
PLUNGER 16016 16016-1019 4
JET-NEEDLE 16017 16017-1086 4 US
JET-NEEDLE (Canada) 16017A 16017-1087 4 CN
VALVE-FLOAT 16030 16030-1016 4
FLOAT 16031 16031-1013 4
PLATE,NEEDLE 16055 16055-010 4
DIAPHRAGM,VALVE 43028 43028-1025 4
WASHER MAIN JET 92022 16034-001 4
CIRCLIP 92037 16008-014 4
PIN,FLOAT 92043 16032-008 4
"0" RING 92055 92055-044 4
"O" RING,CHECK VALVE 92055A 92055-1059 4
"0" RING 92055B 92055-1105 4
JET-MAIN,#A122.5 92063A 92063-1101 4 (RACING USE ONLY)
JET-MAIN,#A125 92063C 92063-1102 4 (RACING USE ONLY)
JET-MAIN,#A120 92063E 92063-1106 4
JET-MAIN,#117.5 92063G 92063-1107 4 (RACING USE ONLY)
MAIN JET,A115 92063H 92063-1109 4 (RACING USE ONLY)
JET-PILOT,#A40.0 92064A 92064-1053 4
PLUG,PILOT SCREW 92066 92066-1051 4 US
SCREW,DRAIN 92066A 92066-1064 4
PLUG,CARBURETOR 92066B 92066-1086 4
PLUG,PILOT JET 92066C 92066-1087 4
SPRING,PILOT SCREW 92081 16022-016 4
SPRING,DPHRGM VALVE 92081A 92081-1363 4
SCREW PAN HEAD 4X6 220 220B0406 4
SCREW-PAN-CROS 220A 220C0516 30
WASHER PLAIN 410 410F0500 14
WASHER-SPRING,5MM,BLA 461 461K0500 30
