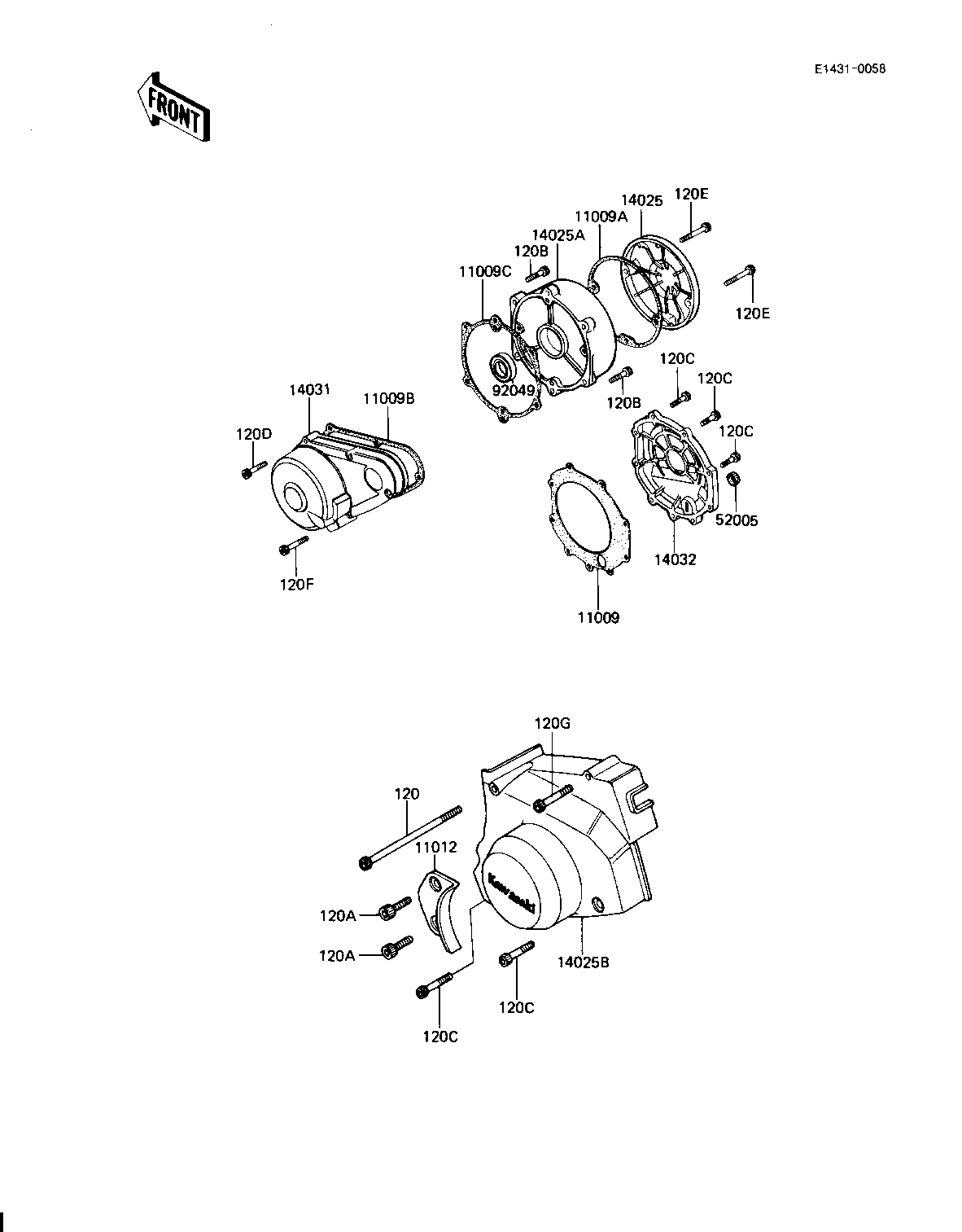

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CLUTCH COVER | 11009 | 11060-1070 | 1 | ||
| GASKET,PULSING COIL C | 11009A | 11060-1072 | 1 | ||
| GASKET,GENERATOR COVE | 11009B | 11060-1075 | 1 | ||
| GASKET,RH ENGINE COVE | 11009C | 11060-1071 | 1 | ||
| CAP,CLUTCH RELEASE | 11012 | 11012-1220 | 1 | ||
| COVER,PULSING COIL | 14025 | 14025-1615 | 1 | ||
| COVER,ENGINE,RH,GOLD | 14025A | 14025-1417 | 1 | ||
| COVER,BEVEL GEAR CASE | 14025B | 14025-1418 | 1 | ||
| COVER,GENERATOR,GOLD | 14031 | 14031-1079 | 1 | ||
| COVER-CLUTCH,GOLD | 14032 | 14032-1073 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| OIL SEAL,SC32487 | 92049 | 92049-1033 | 1 | ||
| BOLT-SOCKET,6X125 | 120 | 120P06125 | 1 | ||
| BOLT,6X14 | 120A | 120P0614 | 2 | ||
| BOLT,SOCKET,6X22 | 120B | 120P0622 | 6 | ||
| BOLT,6X25 | 120C | 120P0625 | 11 | ||
| BOLT,SOCKET,6X30 | 120D | 120P0630 | 6 | ||
| BOLT,SOCKET,6X35 | 120E | 120P0635 | 2 | ||
| BOLT,SOCKET,6X40 | 120F | 120P0640 | 2 | ||
| BOLT,SOCKET,6X45 | 120G | 120P0645 | 1 |
