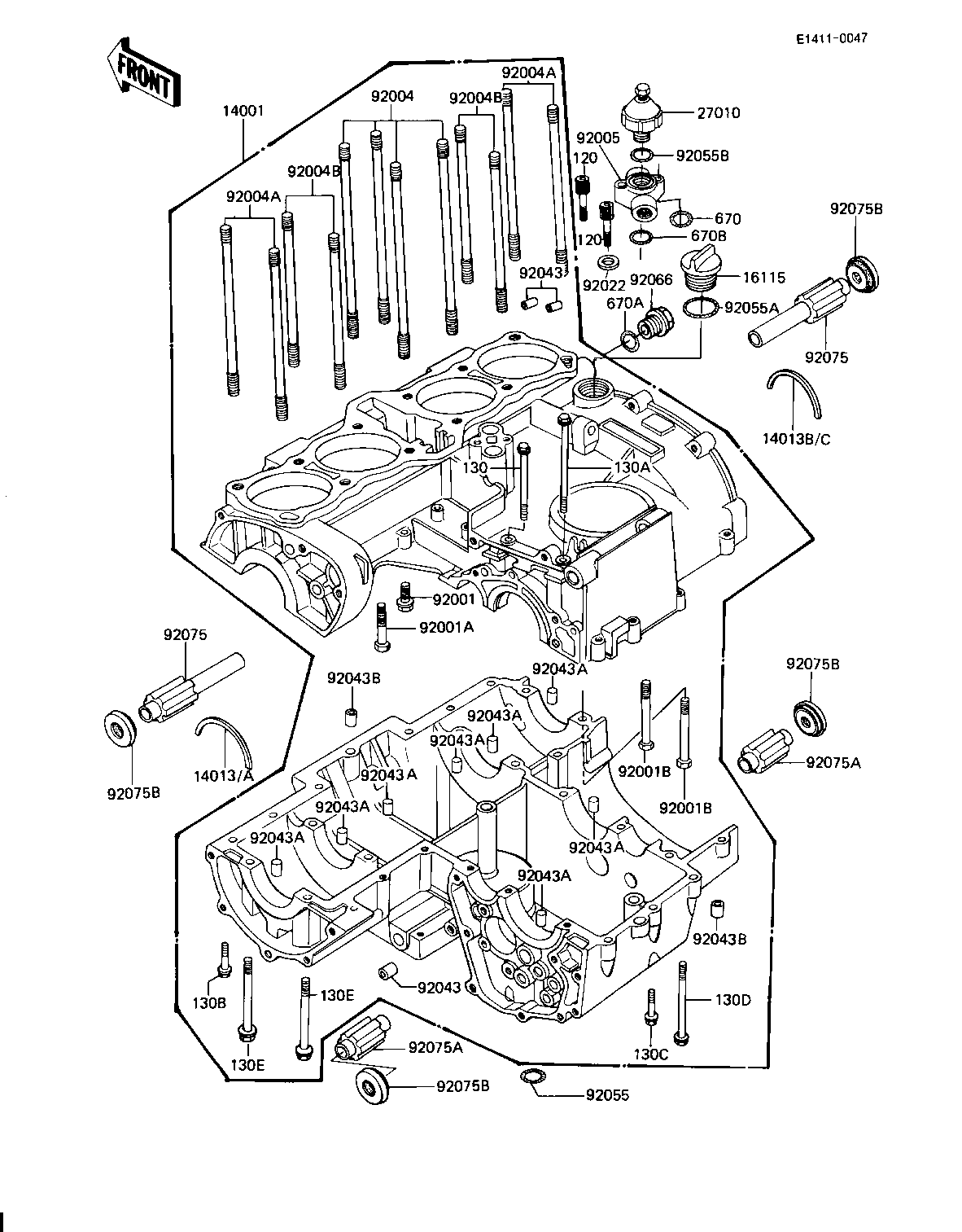

1982 Spectre - CRANKCASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SET-CRANKCASE,GOLD 14001 14001-5105 1
RING-BEARING SET 14013 14013-013 1
RING,POSITION 14013A 14013-1004 1
RING-POSITION 14013B 14013-1005 1
RING-POSITION 14013C 14013-1006 1
CAP-OIL FILLER,GOLD 16115 16115-1010 1
SWITCH,OIL PRESSURE 27010 27010-1013 1
BOLT,FLANGED,8X16 92001 92001-1349 1
BOLT,HEX HEAD,8X72 92001A 92003-107 8
BOLT,HEX HEAD,8X81 92001B 92003-108 2
STUD,10X190 92004 92004-1002 4
STUD,10X158 92004A 92004-1003 4
STUD,10X133 92004B 92004-1004 4
FITTING,OIL PRESSURE 92005 92005-1030 1
WASHER 92022 92022-1086 1
PIN-DOWEL 92043 92042-007 6
PIN DOWEL 6MM 92043A 92042-016 10
PIN,DOWEL,10X8.2X14 92043B 92043-1037 2
O RING,0.D=18MM 92055 92055-048 1
"0" RING,31MM 92055A 92055-049 1
"O" RING 92055B 92055-055 1
PLUG 92066 92066-021 1
DAMPER 92075 92075-1272 2
DAMPER 92075A 92075-1273 2
DAMPER 92075B 92075-1274 4
BOLT 120 120P0835 2
BOLT-FLANGED,6X100 130 130G06100 1
BOLT-FLANGED,6X115 130A 130G06115 1
BOLT,FLANGED,6X40 130B 130G0640 3
BOLT,FLANGED,6X55 130C 130G0655 2
BOLT-FLANGED,6X95 130D 130G0695 3
BOLT-FLANGED,8X95 130E 130P0895 2
"O" RING,9MM 670 670B1509 1
"O" RING,15MM 670A 670B2015 1
"0" RING,18MM 670B 670B2018 2
