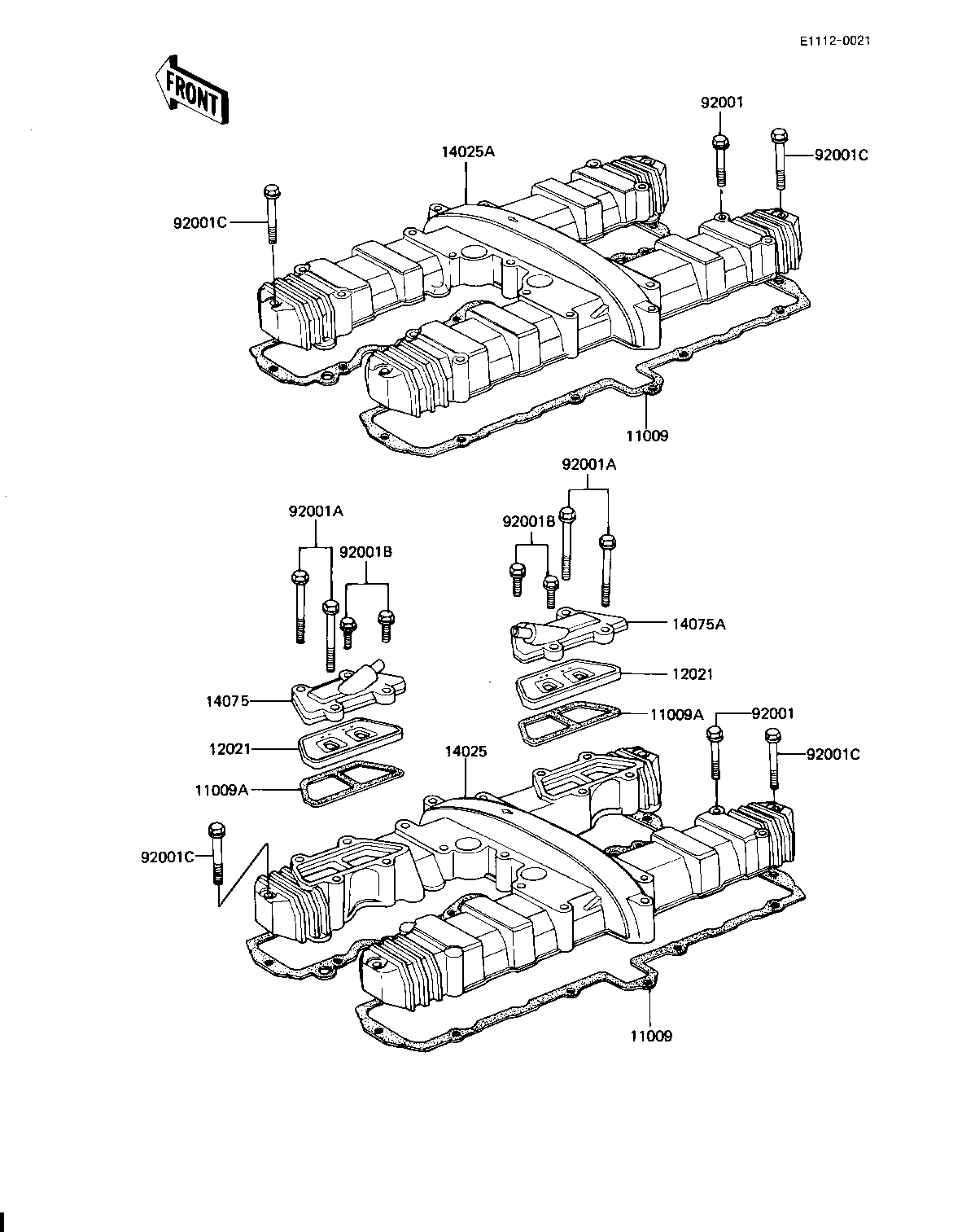

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYLINDER HEAD | 11009 | 11009-1205 | 1 | ||
| GASKET,REED VALVE | 11009A | 11060-1066 | 2 | US | |
| VALVE-ASSY-REED | 12021 | 12021-1008 | 2 | US | |
| COVER,CYLINDER HEAD,G | 14025 | 14025-1414 | 1 | US | |
| COVER,CYLINDER HEAD,GOLD (Cana | 14025A | 14025-1415 | 1 | CN | |
| CAP-ASSY,REED VALVE,L | 14075 | 14075-5020 | 1 | US | |
| CAP-ASSY,REED VALVE,R | 14075A | 14075-5021 | 1 | US | |
| BOLT,FLANGED,6X45 | 92001 | 92001-1350 | 16 | US | |
| BOLT,FLANGED,6X45 | 92001 | 92001-1350 | 20 | CN | |
| BOLT,FLANGED,6X70 | 92001A | 92001-1351 | 4 | US | |
| BOLT,FLANGED,6X22 | 92001B | 92001-1352 | 4 | US | |
| BOLT,FLANGED,6X52 | 92001C | 92001-1353 | 4 |
| GASKET,CYLINDER HEAD | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,REED VALVE | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| COVER,CYLINDER HEAD,G | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| COVER,CYLINDER HEAD,GOLD (Cana | |
| REF # | 14025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| CAP-ASSY,REED VALVE,L | |
| REF # | 14075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| CAP-ASSY,REED VALVE,R | |
| REF # | 14075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X45 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X45 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | CN |
| BOLT,FLANGED,6X70 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X22 | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X52 | |
| REF # | 92001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
