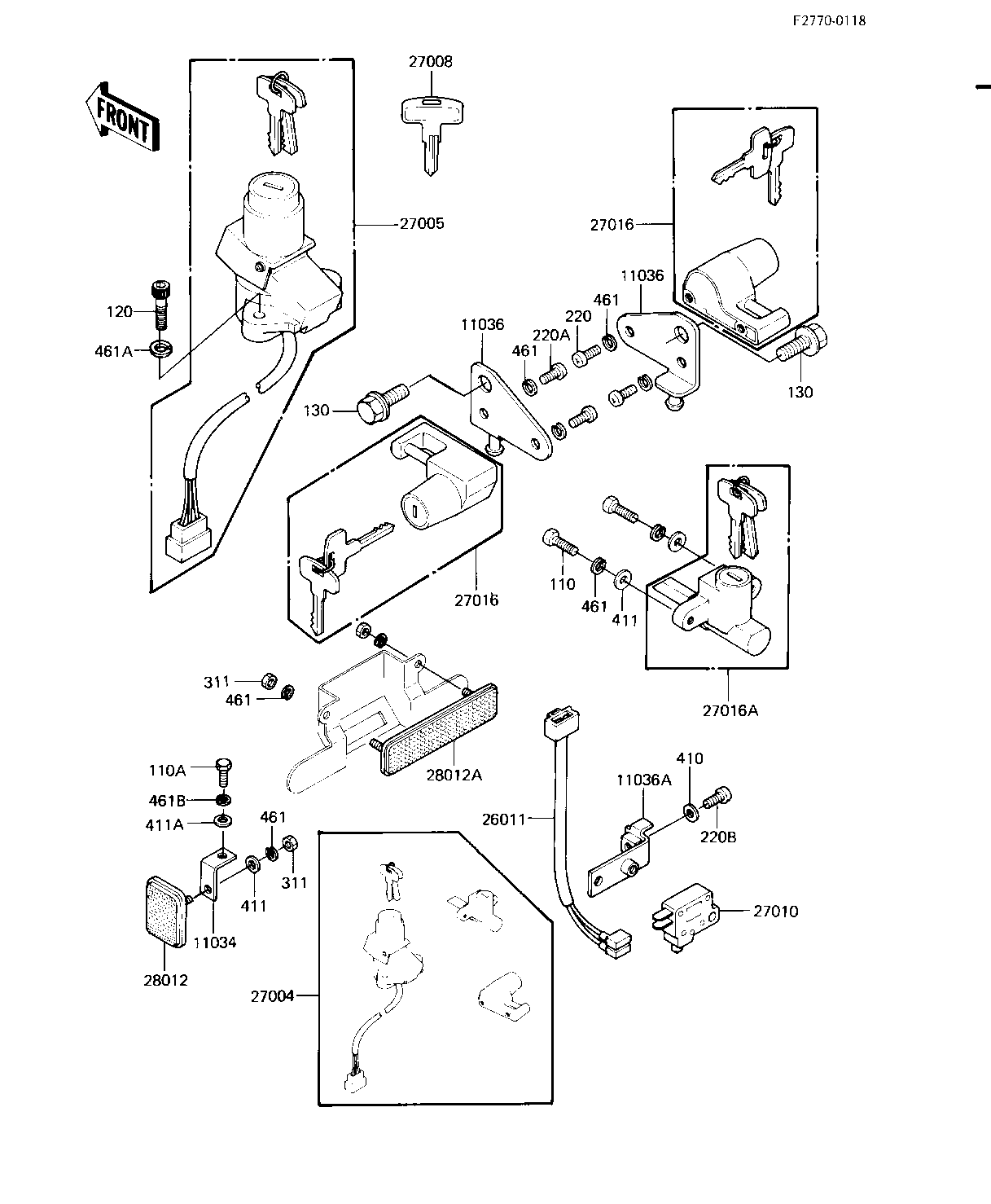

1983 GPz - IGNITION SWITCH/LOCKS/REFLECTORS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLEX REFLET 11034 11034-1540 2
BRACKET-A 11036 11036-1441 2
BRACKET-A,BRAKE SWITC 11036A 11036-1443 1
1WIRE-LEAD,LEAD 26011 26011-1152 1
SWITCH-ASSY 27004 27004-5154 1
SWITCH-ASSY-IGNITION 27005 27005-5029 1
KEY-LOCK,BLANK 27008 27008-1103 1 (OPTION)
SWITCH 27010 27010-1063 1
LOCK ASSY,HELMET 27016 27016-5038 2
LOCK-ASSY 27016A 27016-5048 1
REFLECTOR,REFLEX(FRON 28012 28012-1003 2
REFLECTOR,REAR REFLEX 28012A 28012-1005 1
BOLT,5X14 110 110B0514A 2
BOLT, 6X14, BLACK 110A 112C0614 2
BOLT SOCKET 6X16 120 120Q0616 2
BOLT,FLANGED,8X14 130 130G0814 2
SCREW PAN HEAD 5X10 220 220B0510 2
SCREW PAN HEAD 5X12 220A 220B0512 2
SCREW PAN HEAD 6X14 220B 220B0614 1
NUT,5MM 311 311B0500 4
WASHER PLAIN 6MM 410 410B0600 1
WASHER PLAIN 5MM 411 411B0500 4
WASHER PLAIN 411A 411F0600 2
WASHER SPRING 5MM 461 461F0500 10
WASHER SPRING 6MM 461A 461F0600 2
WASHER-SPRING,6MM,BLA 461B 461K0600 2
