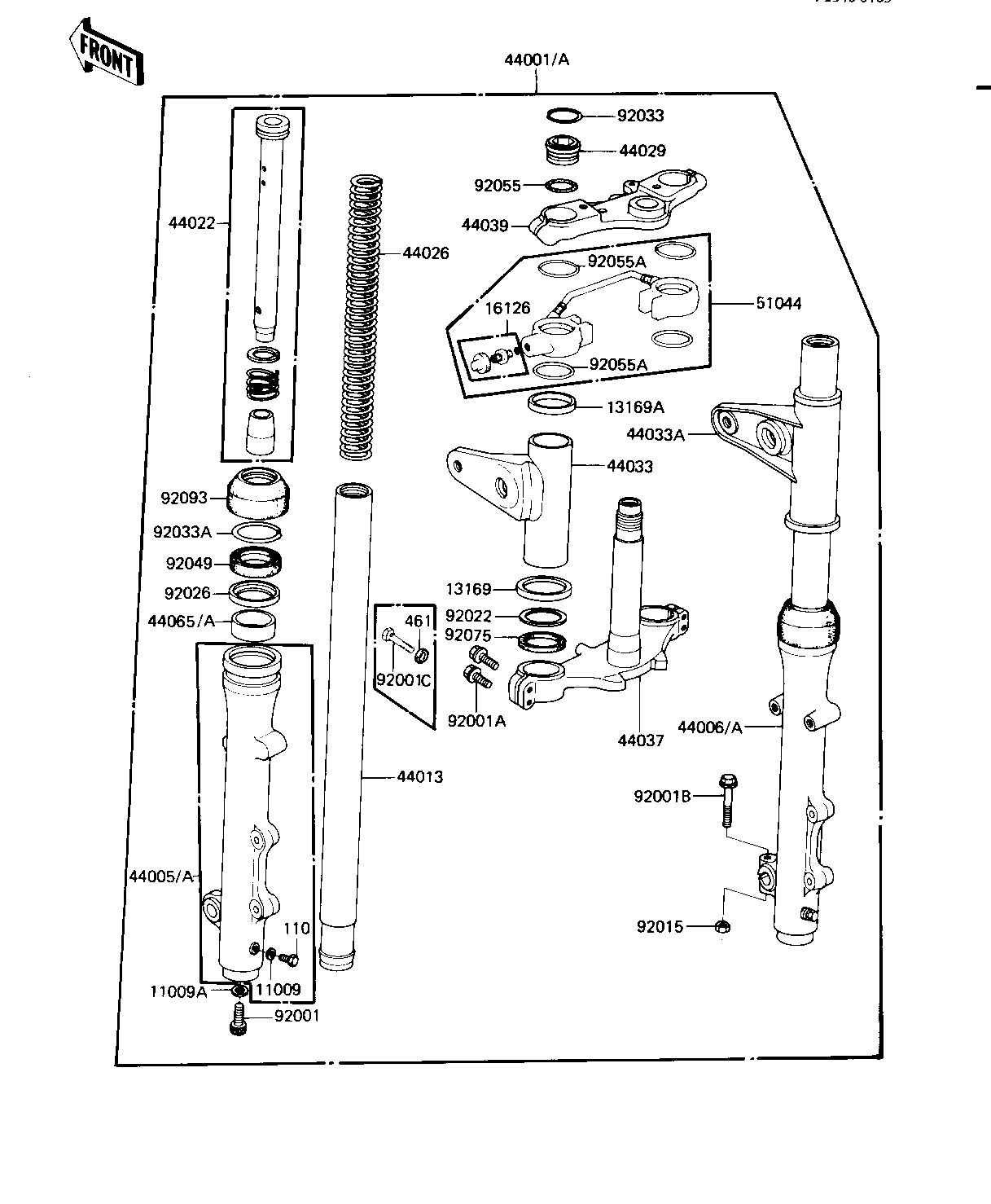

1983 GPz - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRAIN PLUG 11009 44045-047 2
GASKET,FORK CYL BOLT 11009A 44045-051 2
PLATE,FORK COVER LWR 13169 13169-1840 2
PLATE,FORK COVER,UPP 13169A 13169-1841 2
VALVE,AIR 16126 16126-1043 1
FORK FRONT 44001A 44001-1431 1
PIPE-LEFT FORK OUTER 44005A 44005-1120 1
PIPE RIGHT FORK OUTER 44006A 44006-1120 1
PIPE-FORK INNER 44013 44013-1087 2
CYLINDER-FORK 44022 44022-1077 2
SPRING-FRONT FORK,L=5 44026 44026-1138 2
SEAT,FORK SPRING 44029 44029-1012 2
COVER-FORK,LH 44033 44033-1091 1
COVER-FORK,RH 44033A 44033-1092 1
HOLDER-FORK UNDER,WG 44037 44037-1086 1
HOLDER-FORK UPPER 44039 44039-1055 1
BUSHING-FRONT FORK 44065A 44065-1020 2
TUBE-ASSY 51044 51044-1017 1
BOLT,FORK CYLINDER 92001 44041-078 2
BOLT 92001B 92001-1571 1
BOLT 92001C 92001-1745 6
NUT 92015 92015-1198 1
WASHER,FORK COVER 92022 92022-1111 2
SPACER 92026 92026-1108 2
CIRCLIP,FORK TOP 92033 92033-1023 2
RING,SNAP 92033A 92033-1055 2
SEAL-OIL 92049 92049-1089 2
"O" RING,SPRING SEAT 92055 92055-1060 2
RING-O 92055A 92055-1129 4
DAMPER RUBBER,FORK 92075 92075-1137 2
SEAL 92093 92093-1075 2
BOLT HEX HEAD 6X8 110 110B0608 2
WASHER-SPRING,8MM,BLA 461 461K0800 6
