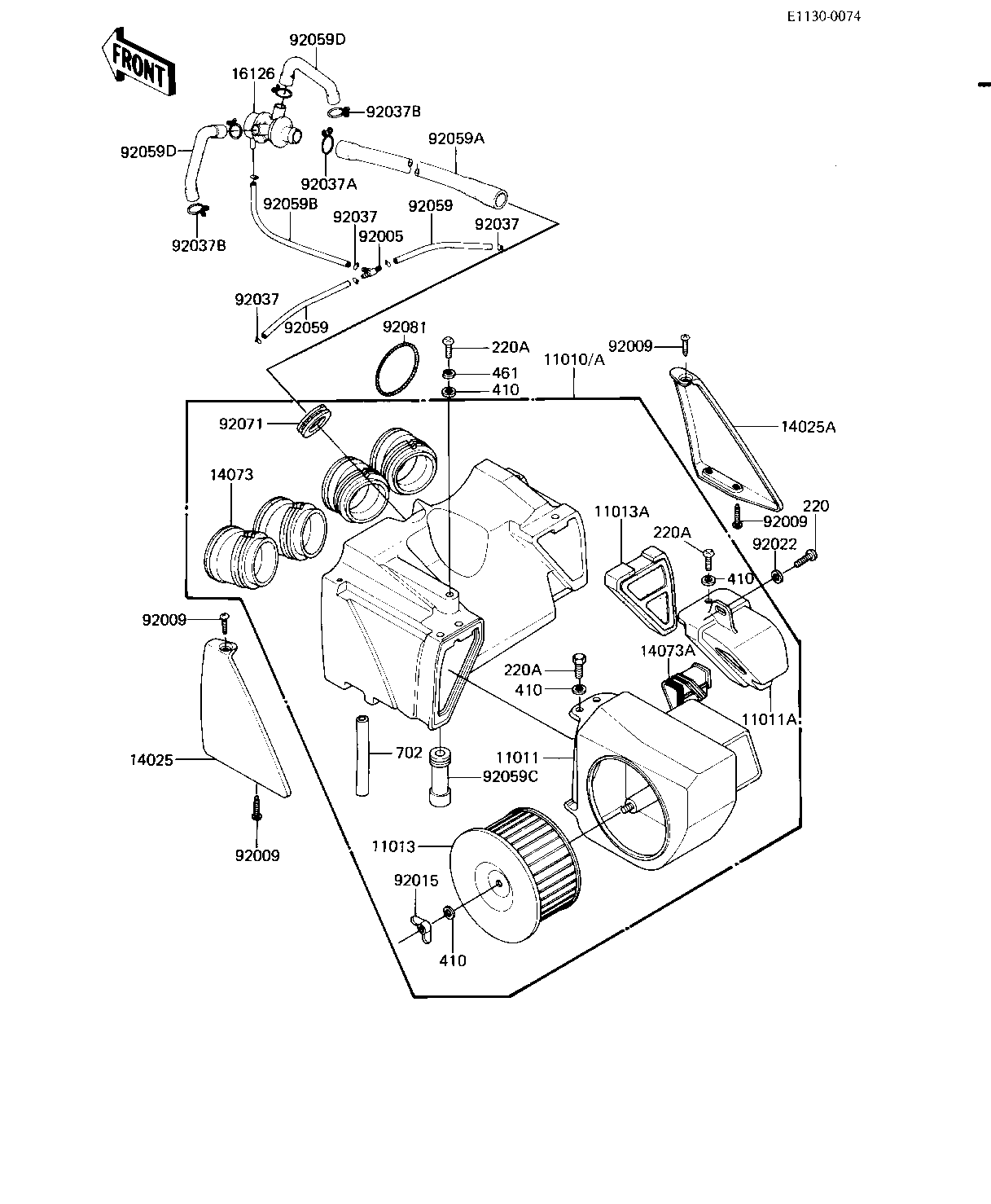

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-1122 | 1 | US | |
| FILTER-ASSY-AIR (Canada) | 11010A | 11010-1123 | 1 | CN | |
| CASE-AIR FILTER | 11011 | 11011-1104 | 1 | ||
| CASE-AIR FILTER | 11011A | 11011-1105 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-1058 | 1 | ||
| ELEMENT,AIR CLNR | 11013A | 11013-1059 | 1 | ||
| COVER,AIR FILTER,LH | 14025 | 14025-1405 | 1 | ||
| COVER,AIR FILTER,RH | 14025A | 14025-1406 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1073 | 4 | ||
| DUCT,AIR FILTER | 14073A | 14073-1075 | 1 | ||
| VALVE ASSY,AIR SWITCH | 16126 | 16126-1017 | 1 | US | |
| FITTING,TUBE | 92005 | 92005-1017 | 1 | US | |
| SCREW,TAPPING,5X12,BL | 92009 | 92009-1138 | 6 | ||
| NUT 6MM | 92015 | 92016-062 | 1 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 1 | ||
| CLAMP-PIPE | 92037 | 92037-072 | 6 | US | |
| CLAMP | 92037A | 92037-1076 | 1 | US | |
| CLAMP,BREATHER TUBE | 92037B | 92037-213 | 4 | US | |
| TUBE,VACUUM,LONG | 92059 | 92059-1162 | 2 | US | |
| TUBE,19X21X340L | 92059A | 92059-1039 | 1 | US | |
| TUBE,4X9X220L | 92059B | 92059-1040 | 1 | US | |
| TUBE,BREATHER,10X63L | 92059C | 92059-1200 | 1 | ||
| TUBE,AIR | 92059D | 92059-1208 | 2 | US | |
| GROMMET,AIR CLEANER | 92071 | 92071-1013 | 1 | US | |
| SPRING,AIR FILTER DUC | 92081 | 92144-1771 | 4 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 1 | ||
| SCREW PAN HEAD 6X16 | 220A | 220B0616 | 5 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 6 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 | ||
| TUBE-RUBBER,4X70 | 702 | 702A0470 | 1 |
| FILTER-ASSY-AIR | |
| REF # | 11010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| FILTER-ASSY-AIR (Canada) | |
| REF # | 11010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| CASE-AIR FILTER | |
| REF # | 11011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-AIR FILTER | |
| REF # | 11011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AIR FILTER,LH | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AIR FILTER,RH | |
| REF # | 14025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE ASSY,AIR SWITCH | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| FITTING,TUBE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SCREW,TAPPING,5X12,BL | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP-PIPE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | US |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| CLAMP,BREATHER TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| TUBE,VACUUM,LONG | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| TUBE,19X21X340L | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| TUBE,4X9X220L | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| TUBE,BREATHER,10X63L | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,AIR | |
| REF # | 92059D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| GROMMET,AIR CLEANER | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SPRING,AIR FILTER DUC | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,4X70 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
