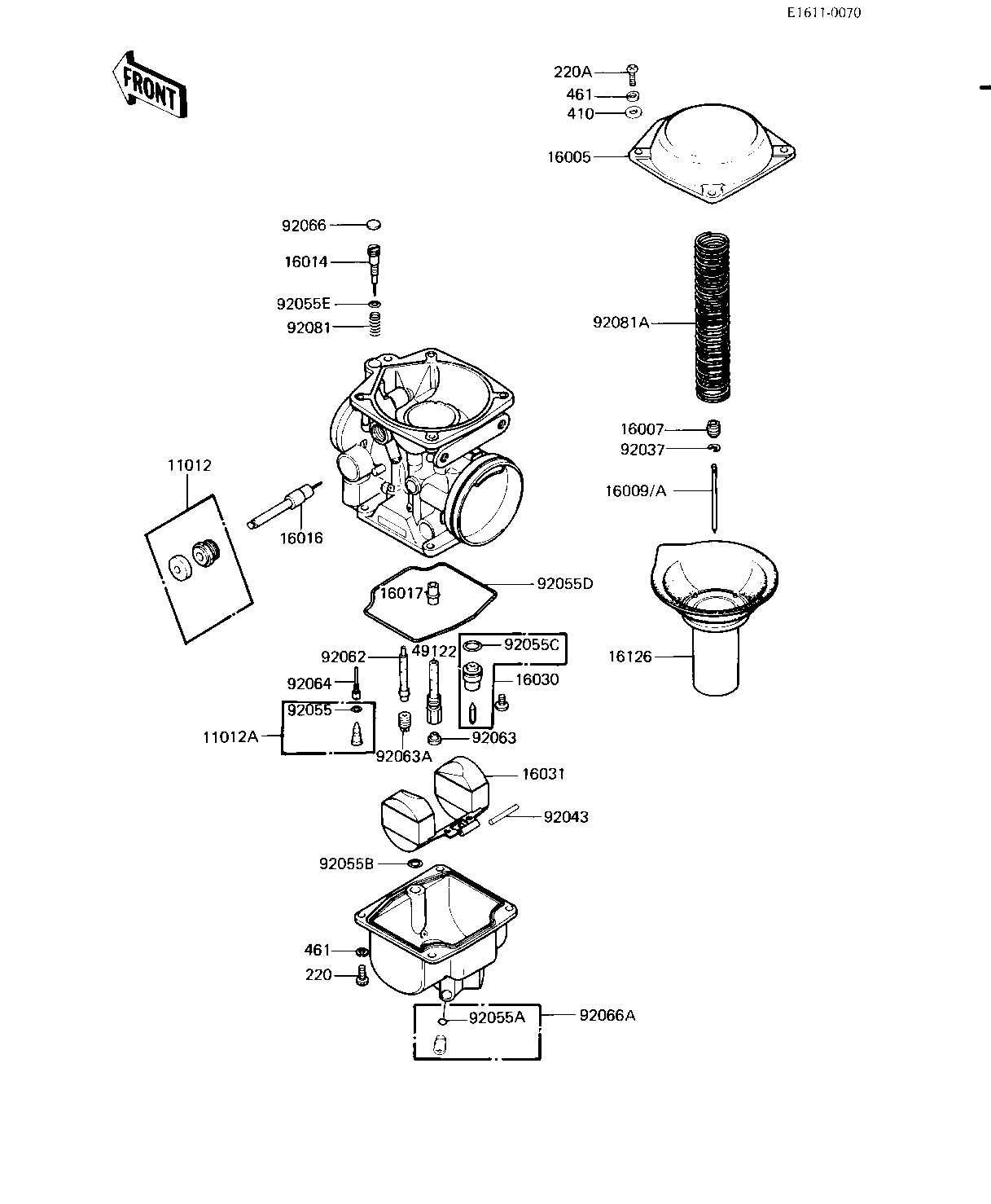

1983 GPz - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1243 4
CAP 11012A 11012-1244 4
TOP-CHAMBER 16005 16005-1020 4
SEAT-SPRING 16007 16007-1051 4
NEEDLE-JET 16009 16009-1112 4 US
NEEDLE-JET (Canada) 16009A 16009-1113 4 CN
SCREW-PILOT AIR 16014 16014-1032 4
PLUNGER 16016 16016-1023 4
JET-NEEDLE 16017 16017-1107 4
VALVE-FLOAT 16030 16030-1024 4
FLOAT 16031 16031-1018 4
VALVE 16126 16126-1047 4
PIPE-BLEEDER 49122 49122-1013 4
CLAMP 92037 92037-1303 4
PIN 92043 92043-1112 4
RING-O,PILOT JET CAP 92055 92055-1337 4
"O" RING,OVERFLOW 92055A 92055-1071 4
RING-0 92055B 92055-1126 4
RING-O 92055C 92055-1127 4
RING-0,FLOAT CHAMBER 92055D 92055-1128 4
RING-O 92055E 92055-1134 4
NOZZLE 92062 92062-1020 4
JET-MAIN,#86 92063 92063-1089 4
JET-MAIN 92063A 92063-1122 4
JET-PILOT 92064 92064-1055 4
PLUG,PILOT SCREW 92066 92066-1051 4 US
SCREW,DRAIN 92066A 92066-1065 4
SPRING 92081 92081-1441 4
SPRING 92081A 92081-1461 4
SCREW-PAN-CROS 220 220C0412 16
SCREW-PAN-CROS 220A 220C0416 14
WASHER-PLANE-SMALL 410 410F0400 14
WASHER-SPRING 461 461K0400 30
