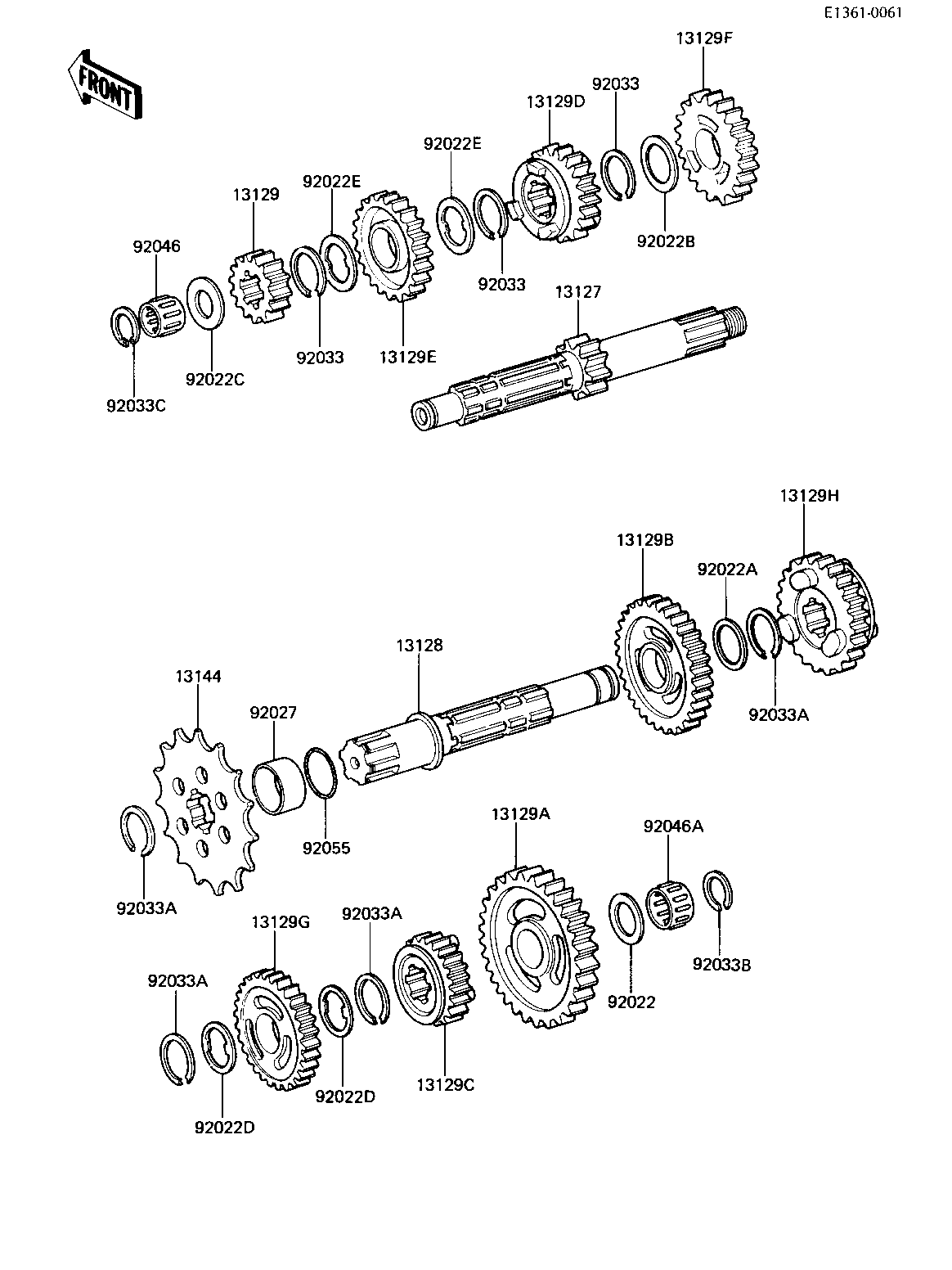

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1047 | 1 | ||
| SHAFT,OUTPUT | 13128 | 13128-1025 | 1 | ||
| 2ND GEAR,DRIVE,16T | 13129 | 13129-1156 | 1 | ||
| LOW GEAR,OUTPUT,32T | 13129A | 13129-1160 | 1 | ||
| 2ND GEAR,OUTPUT,27T | 13129B | 13129-1161 | 1 | ||
| TOP GEAR,OUTPUT,24T | 13129C | 13129-1164 | 1 | ||
| GEAR,INPUT 3RD,18T | 13129D | 13129-1956 | 1 | ||
| 4TH GEAR,DRIVE,25T | 13129E | 13129-1205 | 1 | ||
| TOP GEAR,DRIVE | 13129F | 13129-1206 | 1 | ||
| 3RD GEAR,OUTPUT,25T | 13129G | 13129-1272 | 1 | ||
| 4TH GEAR,OUTPUT,29T | 13129H | 13129-1273 | 1 | ||
| ENGINE SPROCKET,14T | 13144 | 13144-1006 | 1 | ||
| WASHER THRUST | 92022 | 92022-112 | 1 | ||
| WASHER-PLAIN 25MM | 92022A | 92022-159 | 1 | ||
| WASHER-PLAIN | 92022B | 92022-198 | 1 | ||
| WASHER,PLAIN | 92022C | 92022-281 | 1 | ||
| WASHER-LOCK | 92022D | 92024-038 | 2 | ||
| WASHER-LOCK | 92022E | 92024-039 | 2 | ||
| COLLAR-ENG SPROKET | 92027 | 92027-163 | 1 | ||
| CIRCLIP,25MM | 92033 | 92033-025 | 3 | ||
| CIRCLIP | 92033A | 92033-026 | 4 | ||
| CIRCLIP,18MM | 92033B | 92033-029 | 1 | ||
| CIRCLIP,16MM | 92033C | 92033-032 | 1 | ||
| BEARING-NEEDLE | 92046 | 92046-1184 | 1 | ||
| BEARING-NEEDLE,KT2026 | 92046A | 92046-1170 | 1 | ||
| "O" RING | 92055 | 92055-035 | 1 |
