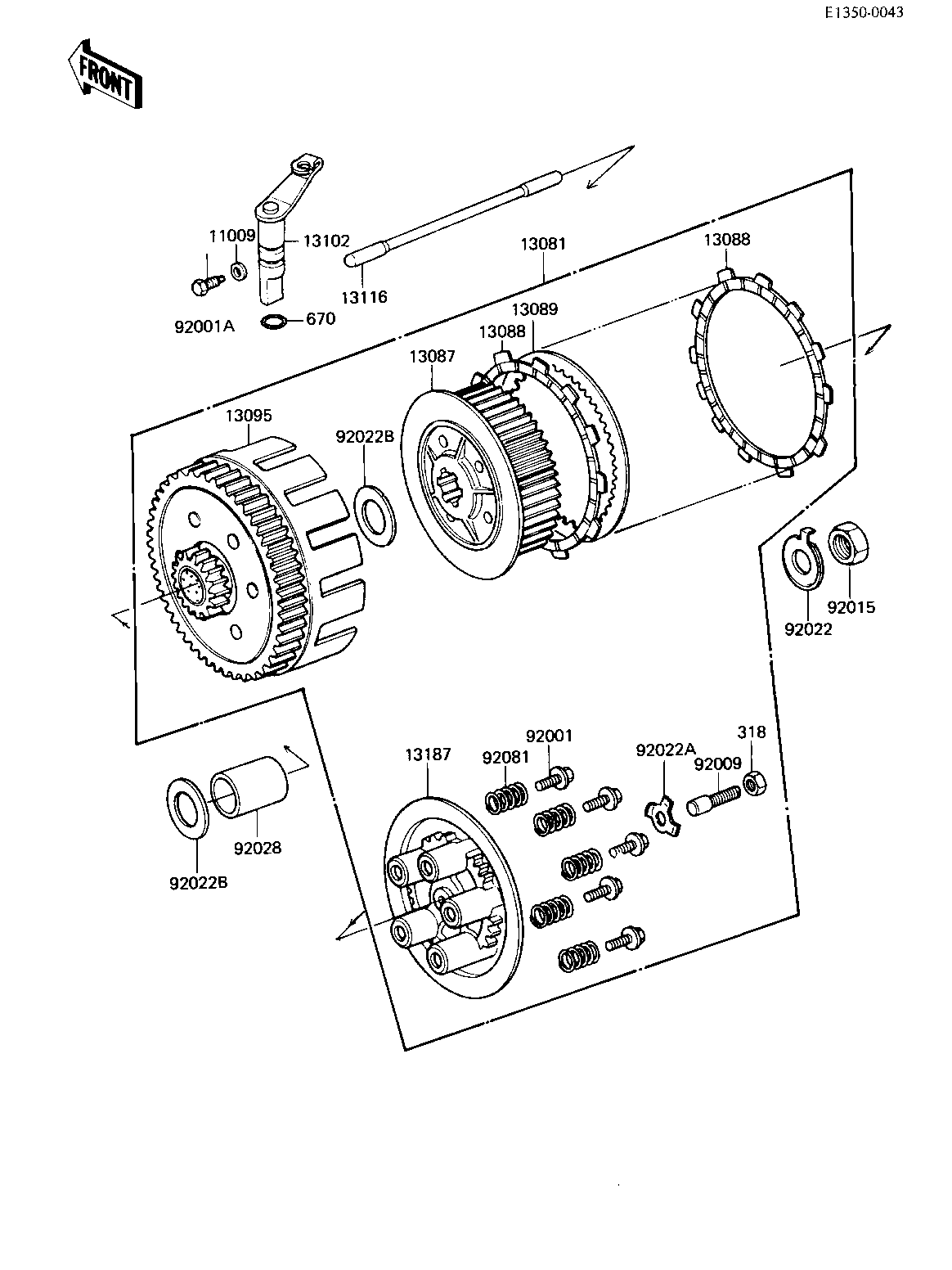

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,R.H ENG COVER | 11009 | 92065-092 | 1 | ||
| CLUTCH-ASSY | 13081 | 13081-1073 | 1 | ||
| HUB,CLUTCH | 13087 | 13087-044 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1009 | 7 | ||
| PLATE-CLUTCH | 13089 | 13089-1010 | 6 | ||
| HOUSING,CLUTCH | 13095 | 13095-1026 | 1 | ||
| RELEASE,CLUTCH | 13102 | 13102-1006 | 1 | ||
| ROD,CLUTCH PUSH | 13116 | 13116-1021 | 1 | ||
| PLATE-CLUTCH OPERATIN | 13187 | 13187-1009 | 1 | ||
| BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
| BOLT,CLUTCH RELEASE | 92001A | 92003-130 | 1 | ||
| SCREW,SLOTTED,8X35 | 92009 | 92014-017 | 1 | ||
| NUT 20MM | 92015 | 92016-028 | 1 | ||
| WASHER,LOCK | 92022 | 92022-1047 | 1 | ||
| WASHER,LOCK,8.5MM | 92022A | 92022-1287 | 1 | ||
| WASHER,CLUTCH THRUST | 92022B | 92022-282 | 2 | ||
| BUSHING,CLUTCH | 92028 | 92028-1076 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1151 | 5 | ||
| NUT 8MM | 318 | 318G0800 | 1 | ||
| "0" RING, 10MM | 670 | 670B2010 | 1 |
| GASKET,R.H ENG COVER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH-ASSY | |
| REF # | 13081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEASE,CLUTCH | |
| REF # | 13102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATIN | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH SPR FITT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH RELEASE | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,SLOTTED,8X35 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK,8.5MM | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLUTCH THRUST | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CLUTCH | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 318 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING, 10MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
