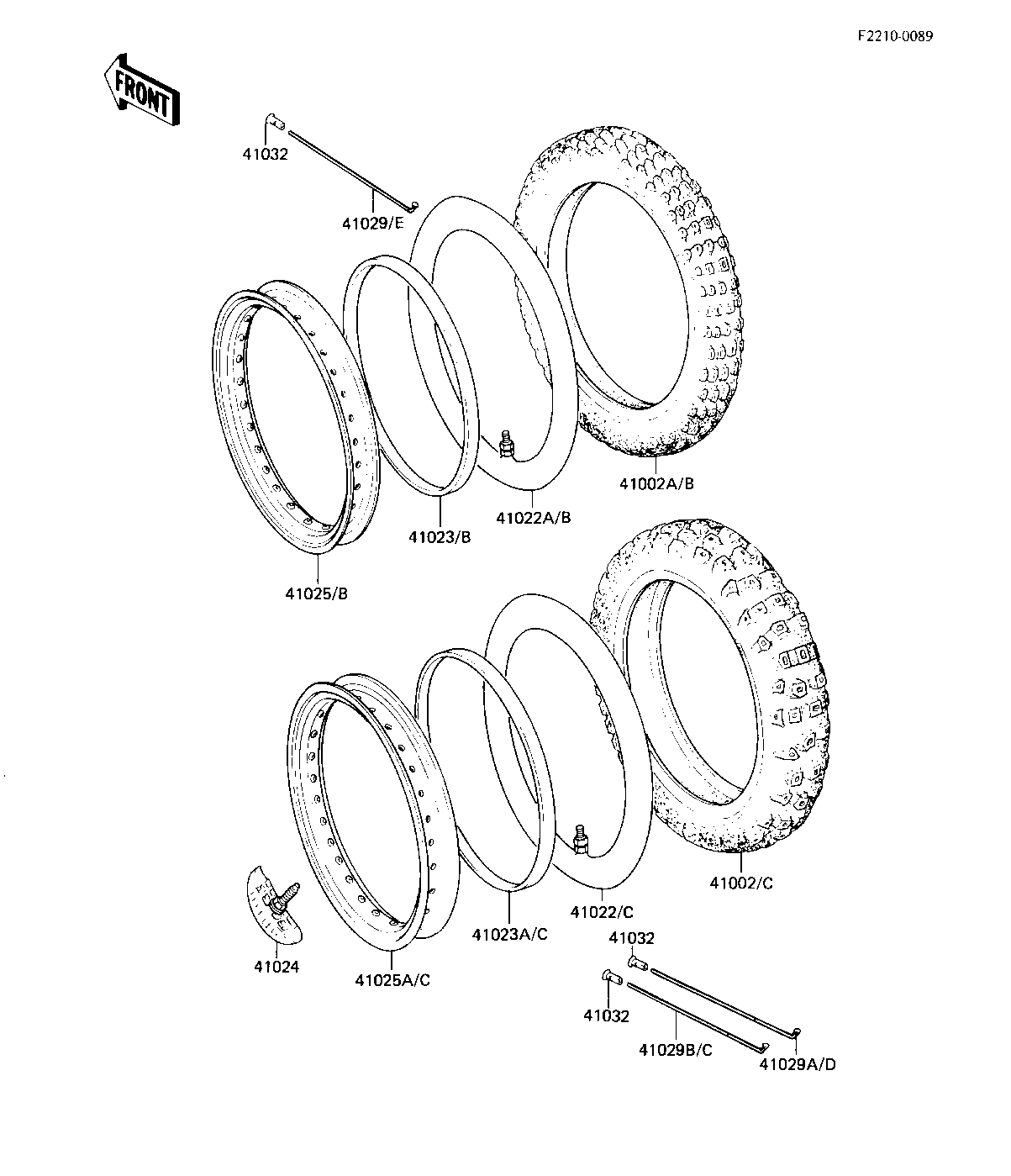

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 K490 F | 41002B | 41002-1312 | 1 | ||
| TIRE 400-18 K490 R | 41002C | 41002-1313 | 1 | ||
| TUBE 350/375/410-18 | 41022 | 41022-031 | 1 | ||
| TUBE,2.75/3.70-21 | 41022A | 41022-1021 | 1 | ||
| BAND,RIM,3.00-21 | 41023 | 41023-1001 | 1 | ||
| BAND,RIM,4.00/5.10-18 | 41023A | 41023-1006 | 1 | ||
| PROTECTOR,BEAD,1.85B | 41024 | 41024-011 | 1 | ||
| RIM,FR,1.60X21EFJ | 41025B | 41025-1073 | 1 | ||
| RIM,RR,1.85X18EFJ | 41025C | 41025-1074 | 1 | ||
| SPOKE-INNER,RR,RH,195 | 41029C | 41029-1080 | 18 | ||
| SPOKE-INNER,RR,LH,201 | 41029D | 41029-1081 | 18 | ||
| SPOKE-INNER,FR,240MMX | 41029E | 41029-1084 | 36 | ||
| NIPPLE-SPOKE | 41032 | 41032-1054 | 72 |
| TIRE 300-21 K490 F | |
| REF # | 41002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 400-18 K490 R | |
| REF # | 41002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE 350/375/410-18 | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,2.75/3.70-21 | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,3.00-21 | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD,1.85B | |
| REF # | 41024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,1.60X21EFJ | |
| REF # | 41025B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,1.85X18EFJ | |
| REF # | 41025C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,RH,195 | |
| REF # | 41029C |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,LH,201 | |
| REF # | 41029D |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,240MMX | |
| REF # | 41029E |
|---|---|
| PART NUMBER | |
| QUANTITY | 36 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 72 |
| DESTINATION | |
| REMARKS | |
