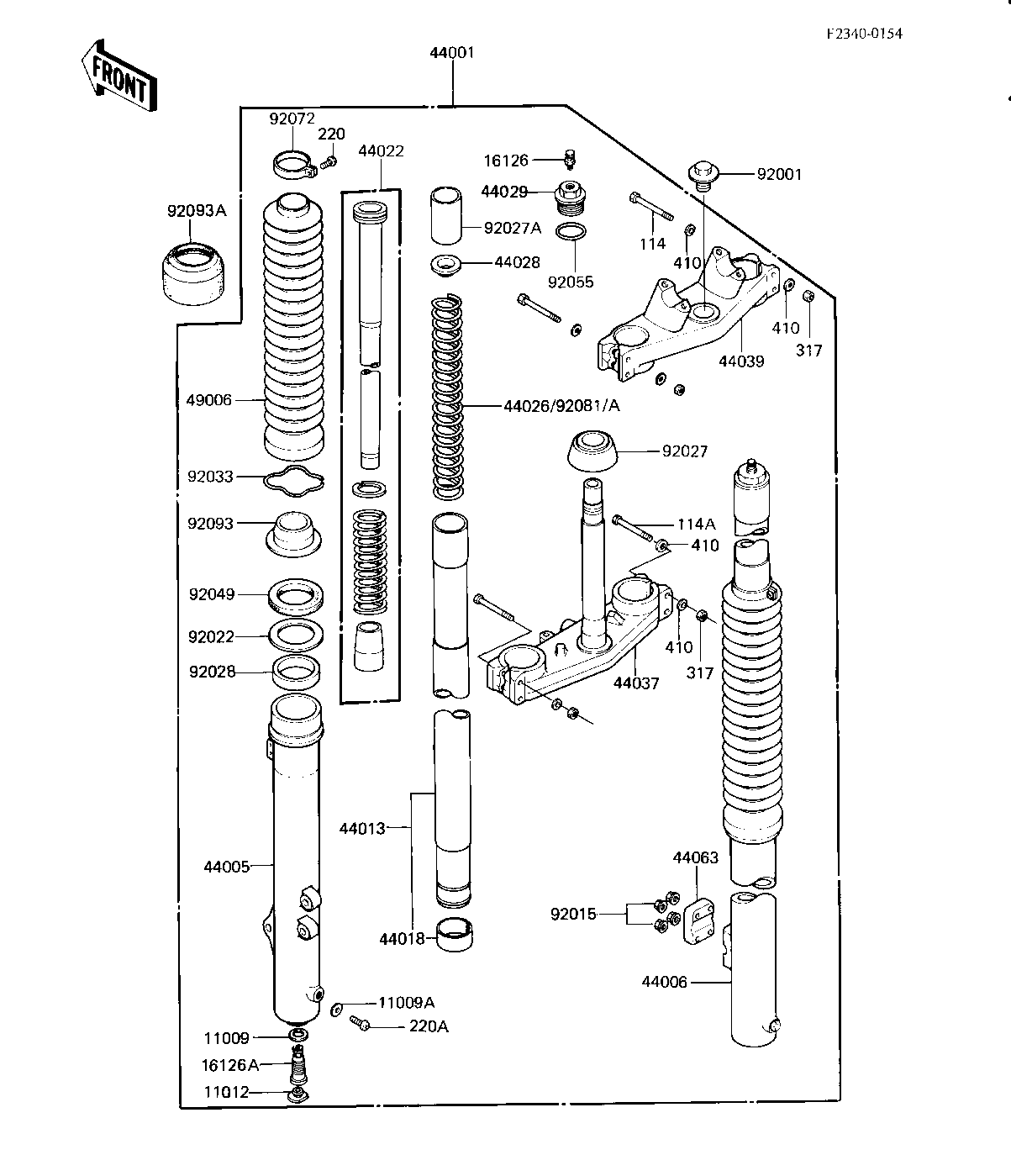

1983 KX125 - FRONT FORK (KX125-B2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1324 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
CAP,FORK CYLINDER 11012 11012-1277 2
VALVE,AIR FRONT FORK 16126 16126-1048 2
VALVE,FORK CYLINDER 16126A 16126-1054 2
FORK-FRONT 44001 44001-1381 1
PIPE-LEFT FORK OUTER 44005 44005-1122 1
PIPE-RIGHT FORK OUTER 44006 44006-1122 1
PIPE-FORK INNER 44013 44013-1101 2
PISTON-FORK 44018 44018-1005 4
CYLINDER-FORK 44022 44022-1087 2
SPRING-FRONT FORK 44026 44026-1169 2
GUIDE-FORK SPRING 44028 44028-1010 2
SEAT-FORK SPRING 44029 44029-1041 2
HOLDER-FORK UNDER 44037 44037-1084 1
HOLDER-FORK UPPER 44039 44039-1060 1
HOLDER-FRONT AXLE 44063 44063-1008 1
BOOT 49006 49006-1081 2
BOLT 92001 92001-1520 1
NUT-6MM 92015 92015-1078 4
WASHER 92022 92022-1299 2
COLLAR,FRONT FORK 92027 92027-1427 1
COLLAR,FORK INNER 92027A 92027-1533 2
BUSHING 92028 92028-1145 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL,FORK OUTER T 92049 92049-1295 2
RING-O 92055 92055-1123 2
BAND 92072 92072-1078 2
SPRING,FRONT FORK,K=0 92081 92081-1556 2 (OPTION)
SPRING,FRONT FORK,K=0 92081A 92081-1557 2 (OPTION)
SEAL,FORK DUST 92093 92093-1086 2
SEAL,FORK DUST 92093A 92093-1094 2 (OPTION)
BOLT HEX HEAD 8X50 114 114G0850 4
BOLT,HEX HEAD,8X55 114A 114G0855 4
SCREW-PAN-CROS 220 220B0316 2
SCREW PAN HEAD 4X8 220A 220B0408 2
NUT,8MM 317 317G0800 8
WASHER PLAIN 8MM 410 410B0800 16
