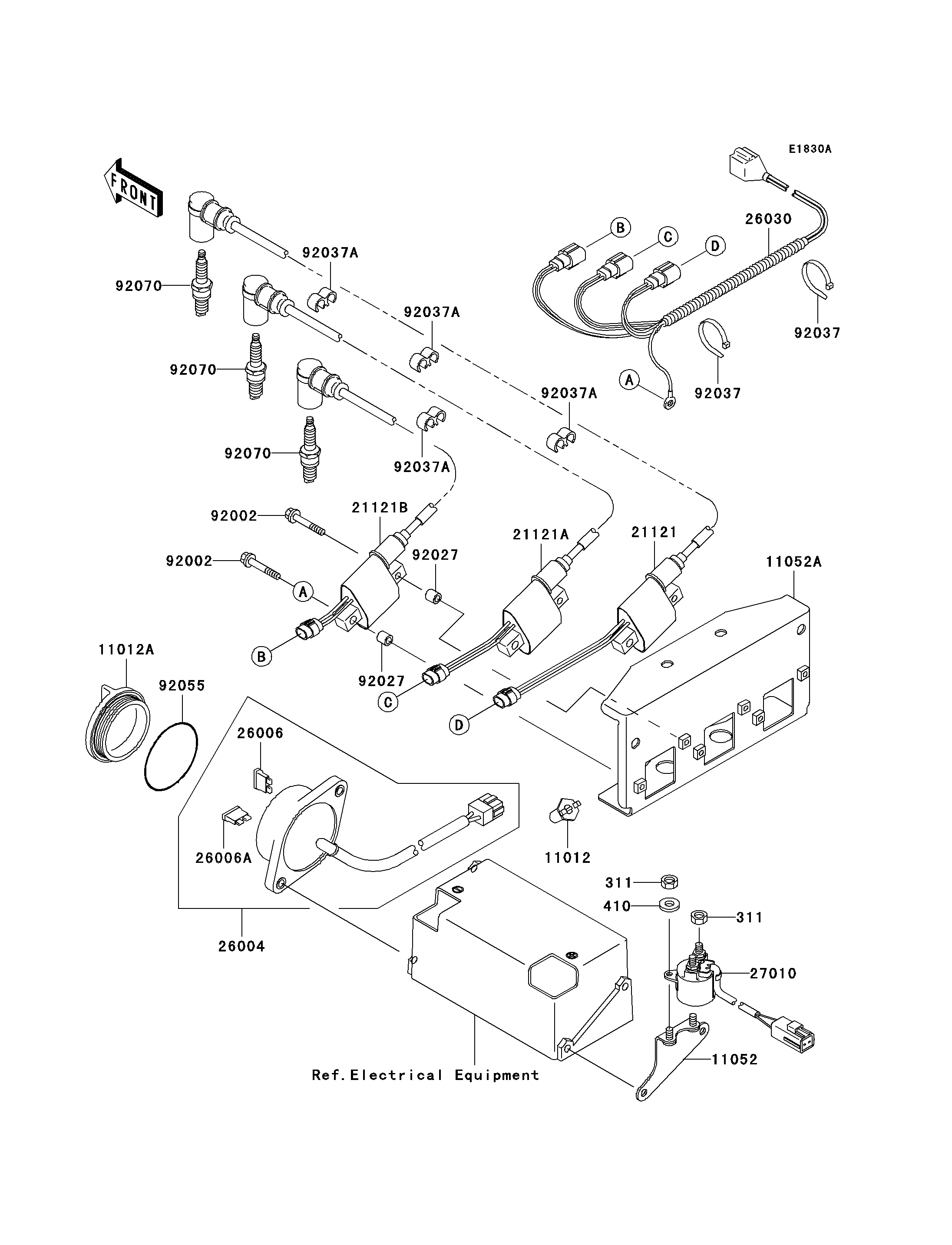

2002 1100 STX D.I. - Ignition System(JT1100-F2)

DOWNLOAD PDF
SELECT A NEW PART
311
311
410
11012
11012A
11052
11052A
21121
21121A
21121B
26004
26006
26006A
26030
27010
92002
92002
92027
92027
92037
92037
92037A
92037A
92037A
92037A
92055
92070
92070
92070
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,6MM 410 410S0600 2
CAP,HOLDER 11012 11012-3768 3
CAP 11012A 11012-3791 1
BRACKET 11052 11052-3745 1
BRACKET 11052A 11052-3753 1
COIL-IGNITION,#1 BLACK 21121 21121-3719 1
COIL-IGNITION,#2 GREEN 21121A 21121-3720 1
COIL-IGNITION,#3 WHITE 21121B 21121-3721 1
FUSE-ASSY 26004 26004-3722 1
FUSE,10A-R 26006 26006-1007 2
FUSE,20A-Y 26006A 26006-1051 2
HARNESS 26030 26030-3755 1
SWITCH 27010 27010-3774 1
BOLT,6X35 92002 92002-3715 6
COLLAR,6.2X10X10 92027 92027-3705 6
CLAMP 92037 92037-1173 2
CLAMP,HOSE 92037A 92037-1603 4
RING-O 92055 92055-1292 1
PLUG-SPARK,PZFR7G-G(NGK),SOLID 92070 92070-3705 3
