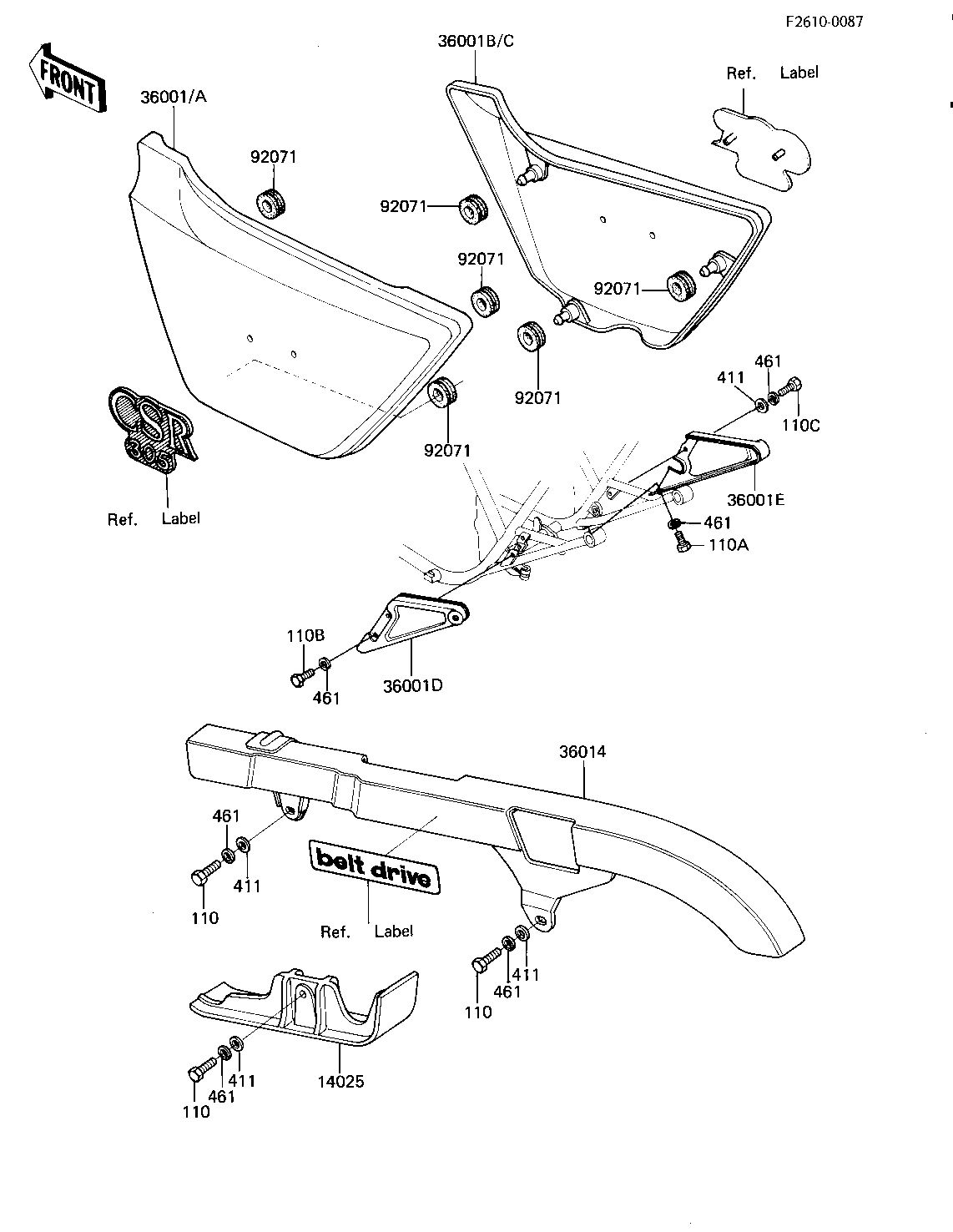

1982 CSR Belt - SIDE COVERS/BELT COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,DRIVE BELT | 14025 | 14025-1381 | 1 | ||
| COVER-SIDE,LH,L.M.RED | 36001 | 36001-1125-E2 | 1 | ||
| COVER-SIDE,LH,EBONY | 36001A | 36001-1125-8G | 1 | ||
| COVER-SIDE,RH,L.M.RED | 36001B | 36001-1126-E2 | 1 | ||
| COVER-SIDE,RH,EBONY | 36001C | 36001-1126-8G | 1 | ||
| COVER,MUFFLER STAY,LH | 36001D | 36001-1129 | 1 | ||
| COVER,MUFFLER STAY,RH | 36001E | 36001-1130 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1051 | 1 | ||
| GROMMET | 92071 | 92071-056 | 6 | ||
| BOLT-UPSET,6X16 | 110 | 112G0616 | 3 | ||
| BOLT,6X8 | 110A | 110N0608 | 1 | ||
| BOLT-FLANGED-SMALL | 110B | 132E0612 | 2 | ||
| BOLT-UPSET | 110C | 112G0614 | 1 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 4 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 7 |
