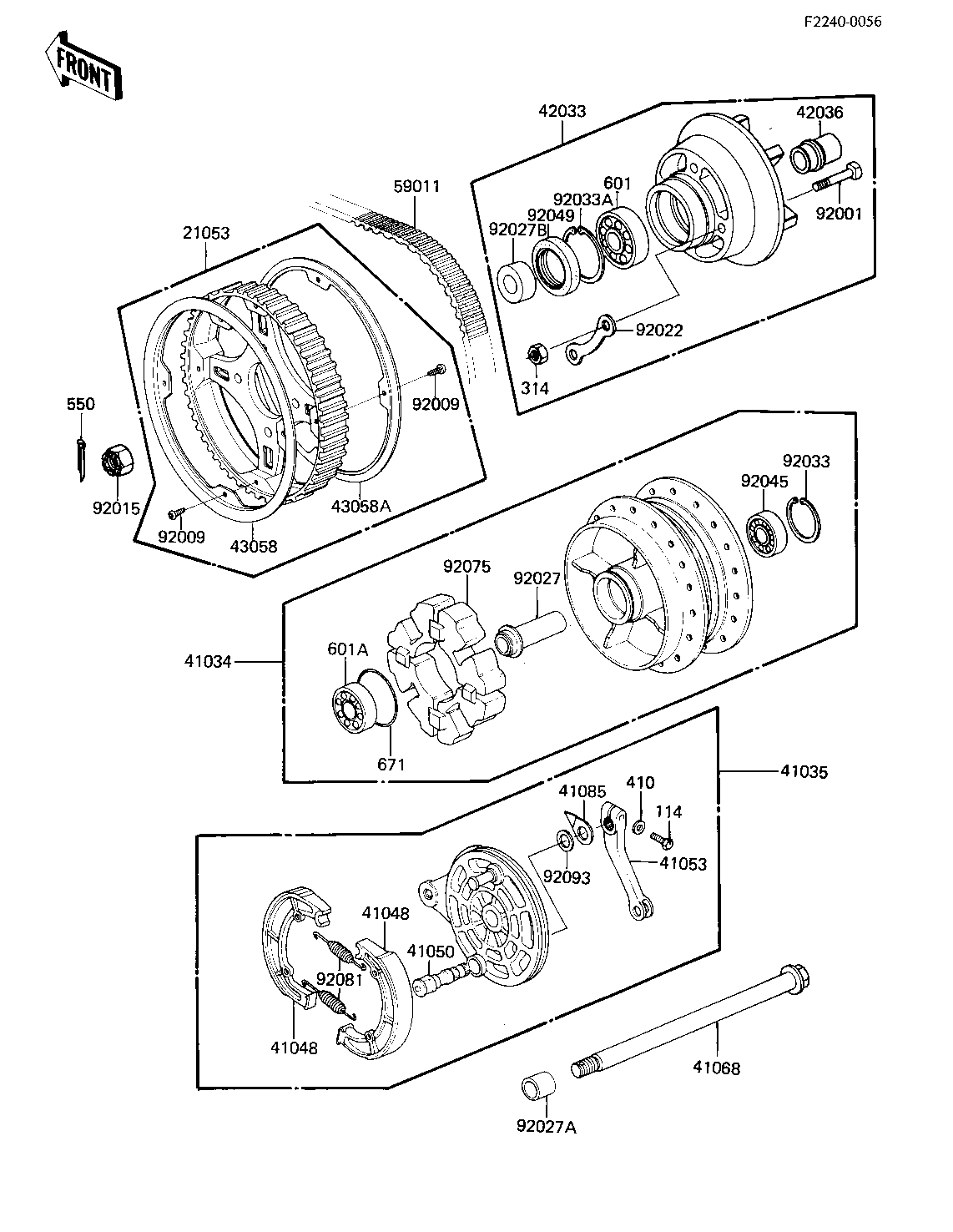

1982 CSR Belt - REAR HUB/BRAKE/BELT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET-ASSY,RR,50T 21053 21053-1010 1
DRUM-ASSY,RR BRK 41034 41034-1005 1
PANEL-ASY,RR BRK 41035 41035-1089 1
SHOE-BRAKE 41048 41048-1069 2
CAM,BRAKE 41050 41050-1001 1
LEVER,BRAKE CAM 41053 41053-1001 1
AXLE,RR 41068 41068-1067 1
INDICATOR,BRAKE SHOE 41085 41085-004 1
COUPLING-ASSY,RR 42033 42033-1044 1
SLEEVE,COUPLING 42036 42036-1002 1
RING,REAR HUB SPROCKE 43058 43058-1016 1
RING,REAR HUB SPROCKE 43058A 43058-1016 1
BELT,DRIVE 59011 59011-1002 1
BOLT, RR SPROCKET FIT 92001 92003-156 4
SCREW,5X10 92009 92009-1131 8
NUT CASTLE,16MM 92015 92015-055 1
WASHER SPROCKET LOCK 92022 92088-005 2
COLLAR,REAR HUB BRG. 92027 92027-1013 1
COLLAR,RR AXLE,RH 92027A 92027-1256 1
COLLAR 92027B 92027-1368 1
CIRCLIP,47M/M 92033 92033-1042 1
RING,SNAP,56.2M/M 92033A 92033-1043 1
BEARING-BALL 92045 601B6303U 1
OIL SEAL WTC35527 92049 92052-006 1
DAMPER,REAR HUB SHOCK 92075 92075-1008 1
SPRING-BRAKE SHOE 92081 42020-004 2
DUST SHIELD-BRAKE CAM 92093 41051-003 1
BOLT HEX HEAD 8X28 114 114G0828 1
NUT,10MM 314 314B1000 4
WASHER PLAIN 8MM 410 410B0800 1
PIN-COTTER,4.0X35 550 550D4035 1
BEARING BALL #6205 601 601B6205 1
BEARING BALL #6303 601A 601B6303 1
"0" RING,60MM 671 671B2560 1
