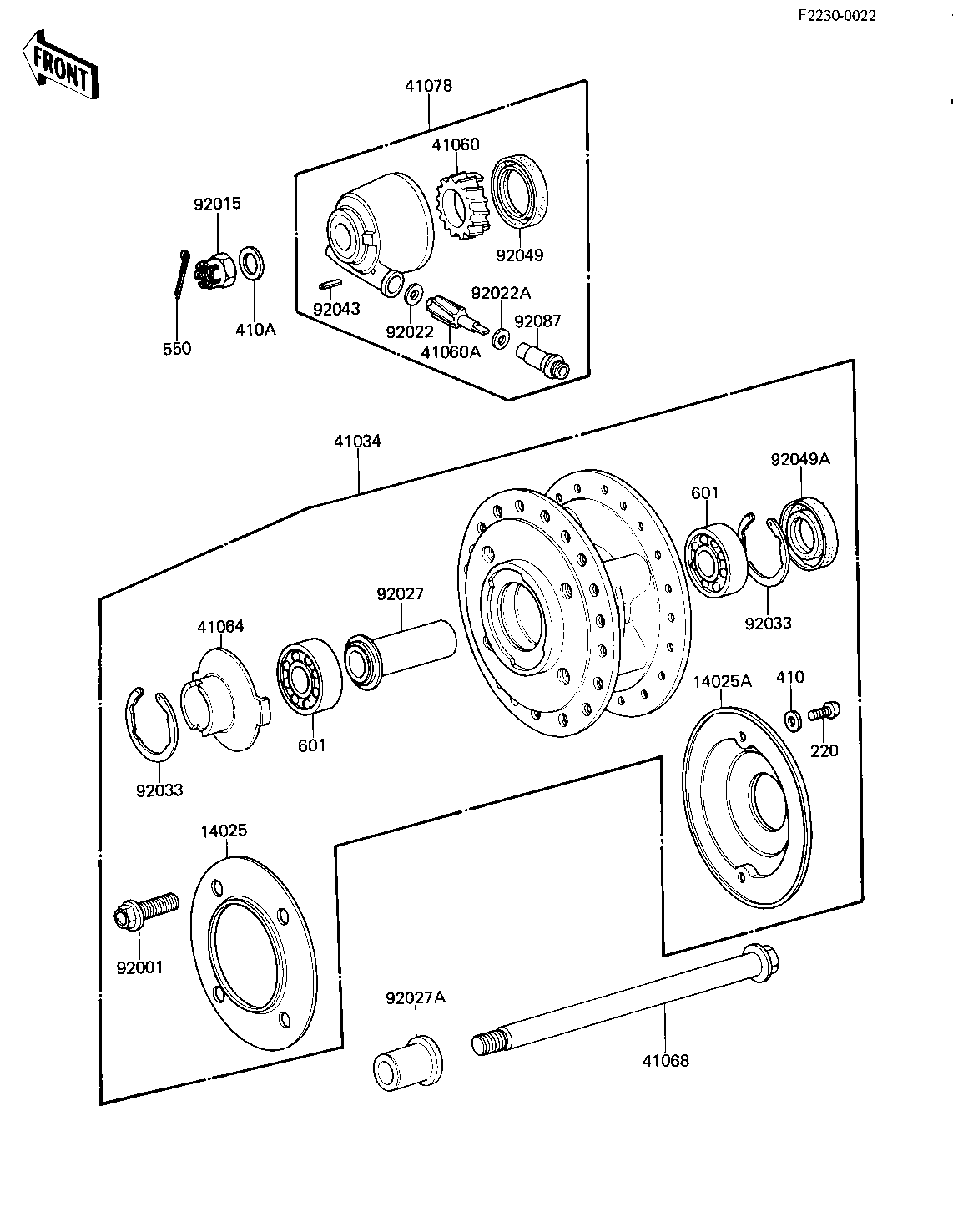

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,DUST,LH | 14025 | 14025-1277 | 1 | ||
| COVER,DUST,RH | 14025A | 14025-1341 | 1 | ||
| DRUM-ASSY,FR BRK | 41034 | 41034-1033 | 1 | ||
| GEAR-METER SCREW,24T | 41060 | 41060-1025 | 1 | ||
| GEAR-METER SCREW,9T | 41060A | 41060-1035 | 1 | ||
| RECEIVER,SPEEDOMETER | 41064 | 41064-1006 | 1 | ||
| AXLE,FR | 41068 | 41068-1099 | 1 | ||
| CASE-ASSY-METER GEAR | 41078 | 41078-1018 | 1 | ||
| BOLT,HEX HEAD,10X30 | 92001 | 92001-1173 | 4 | ||
| NUT,14MM | 92015 | 42045-020 | 1 | ||
| WASHER THRST SPD PINI | 92022 | 41063-001 | 1 | ||
| WASHER THRST SPD PINI | 92022A | 41063-001 | 1 | ||
| COLLAR,FR HUB L=55M/M | 92027 | 92027-1223 | 1 | ||
| COLLAR,FR AXLE L=30MM | 92027A | 92027-1225 | 1 | ||
| CIRCLIP,42MM | 92033 | 92033-1041 | 2 | ||
| PIN,SPRING | 92043 | 41082-001 | 1 | ||
| OIL SEAL,BJN30427-C3 | 92049 | 92049-1057 | 1 | ||
| OIL SEAL,AG1144AO | 92049A | 92049-1058 | 1 | ||
| BUSHING,METER GEAR | 92087 | 92087-1002 | 1 | ||
| SCREW-PAN-CROS | 220 | 220B0514 | 2 | ||
| WASHER PLAIN 5MM | 410 | 410B0500 | 2 | ||
| WASHER PLAIN 14MM | 410A | 410B1400 | 1 | ||
| PIN-COTTER,3.2X25 | 550 | 550D3225 | 1 | ||
| BEARING-BALL, #6302 | 601 | 601B630ZZ | 2 |
