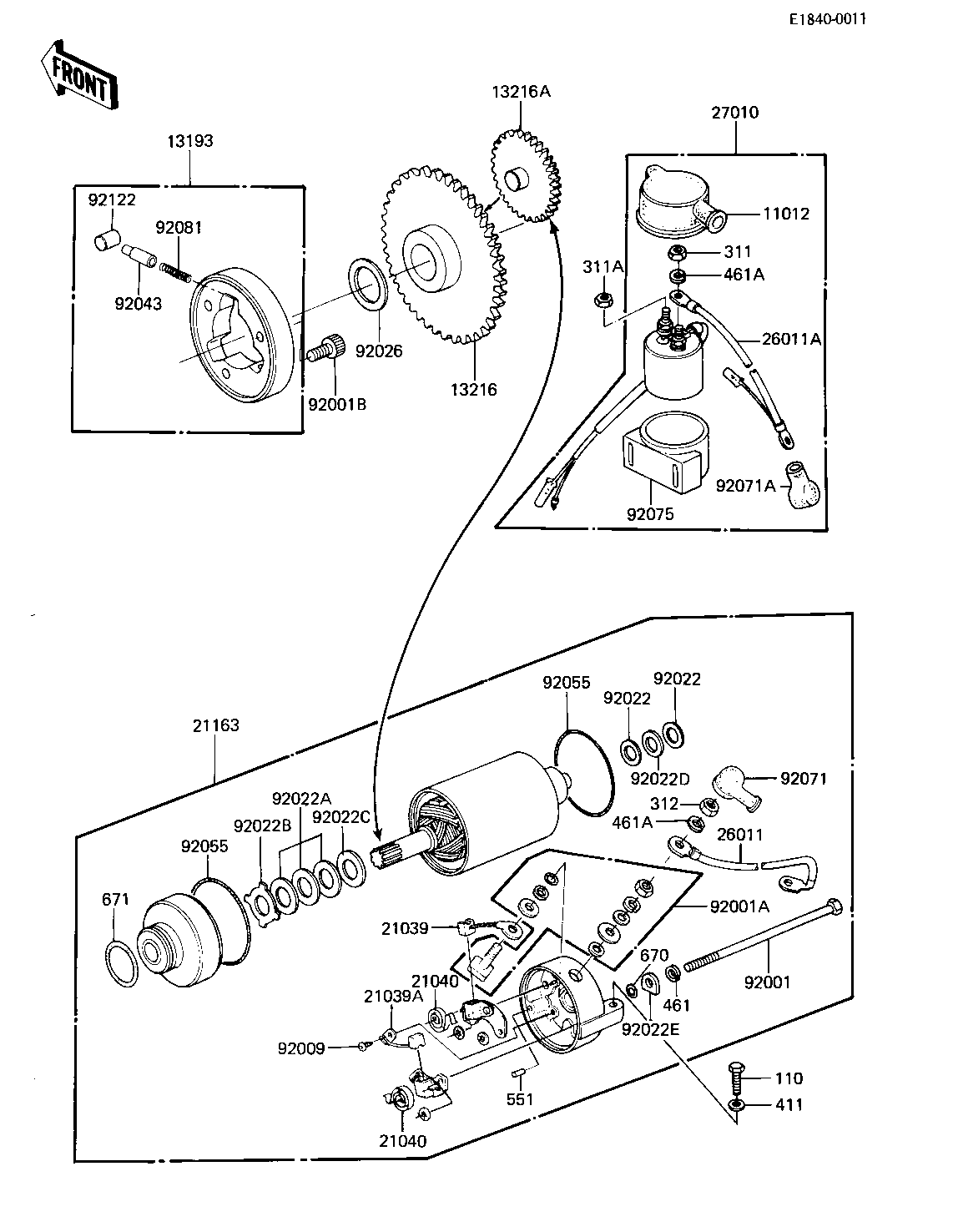

1982 CSR Belt - STARTER MOTOR/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER MAGNETIC SWITCH 11012 21141-004 1
CLUTCH ASSY,ONEWAY 13193 13193-1002 1
GEAR-COMP,ONEWAY 13216 16085-1032 1
GEAR-COMP,STARTER IDL 13216A 13216-1009 1
BRUSH,CARBON(+) 21039 21039-1001 1
BRUSH,CARBON(-) 21039A 21039-1002 1
SPRING,CARBON BRUSH 21040 21040-1001 2
STARTER-ELECTRIC 21163 21163-1199 1
WIRE,STARTER MOTOR 26011 26011-1049 1
WIRE-LEAD,MAGNETIC SW 26011A 26011-1128 1
SWITCH,MAGNETIC 27010 27010-1050 1
BOLT,PAN HEAD,5X108.5 92001 92001-1156 2
BOLT SET,STARTER MOTO 92001A 92001-1204 1
BOLT 92001B 120P0816 3
SCREW,TAPPING,3.5X8 92009 92009-1058 1
WASHER,THRUST,0.2T 92022 21025-011 2
WASHER,THRUST 92022A 92022-1129 3
WASHER,THRUST SUPPORT 92022B 92022-1130 1
WASHER,BAKELITE 92022C 92022-1131 1
WASHER,THRUST,0.8T 92022D 92022-1132 1
WASHER,LOCK 92022E 92022-1133 2
WASHER 22X35.5X1.OT 92026 92026-092 1
PIN 92043 92043-132 3
"0" RING,56MM 92055 92055-1042 2
GROMMET,CORD 92071 21017-017 1
CAP,MAGNETIC SWITCH 92071A 21017-023 1
DAMPER MAG SWITCH SHK 92075 21064-002 1
SPRING,CLUTCH 92081 92081-139 3
ROLLER 92122 92122-006 3
BOLT-UPSET,6X20 110 112G0620 2
NUT 6MM 311 311B0600 1
NUT,6M/M 311A 311G0600 1
NUT 6MM 312 312B0600 1
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 5MM 461 461F0500 2
WASHER SPRING 6MM 461A 461F0600 2
PIN,DOWEL,3X6 551 551A0306 1
"O" RING,5MM 670 670B1505 2
"0" RING,25MM 671 671B2525 1
