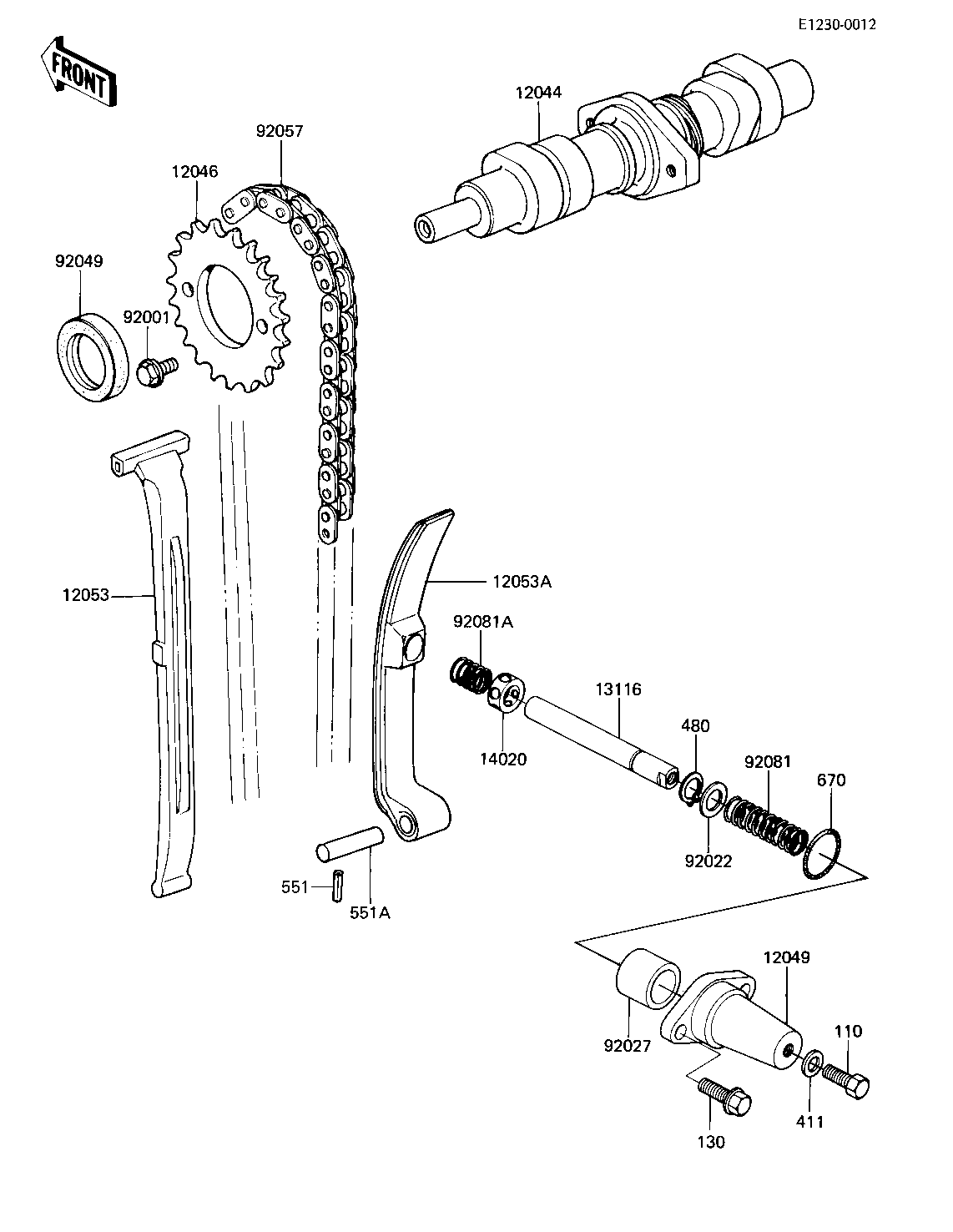

1982 CSR Belt - CAMSHAFT/CHAIN/TENSIONER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAMSHAFT-VALVE | 12044 | 12044-1002 | 1 | ||
| SPROCKET,CAM,30T | 12046 | 12046-1008 | 1 | ||
| BRACKET,TENSIONER | 12049 | 12049-1010 | 1 | ||
| GUIDE-CHAIN,CAM,FR | 12053 | 12053-1020 | 1 | ||
| GUIDE-CHAIN,CAM,RR | 12053A | 12053-1050 | 1 | ||
| ROD,PUSH,TENSIONER | 13116 | 13116-1022 | 1 | ||
| RETAINER | 14020 | 14020-1002 | 1 | ||
| BOLT,SPROCKET FITTING | 92001 | 92003-208 | 2 | ||
| WASHER,10X14.5X1.0 | 92022 | 92022-1181 | 1 | ||
| COLLAR,TENSIONER | 92027 | 92027-1240 | 1 | ||
| OIL SEAL,R.H CRNKSFT | 92049 | 92050-065 | 1 | ||
| CHAIN,CAM,BF05MX82L | 92057 | 92057-1015 | 1 | ||
| SPRING,TENSIONER | 92081 | 92081-1206 | 1 | ||
| SPRING,TENSIONER | 92081A | 92081-1207 | 1 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 1 | ||
| BOLT,FLANGED,6X20 | 130 | 130G0620 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 1 | ||
| CIRCLIP,10M/M | 480 | 480J1000 | 1 | ||
| PIN-DOWEL,3X16 | 551 | 551A0316 | 1 | ||
| PIN-DOWEL,8X40 | 551A | 551A0840 | 1 | ||
| "0" RING,21MM | 670 | 670B2021 | 1 |
