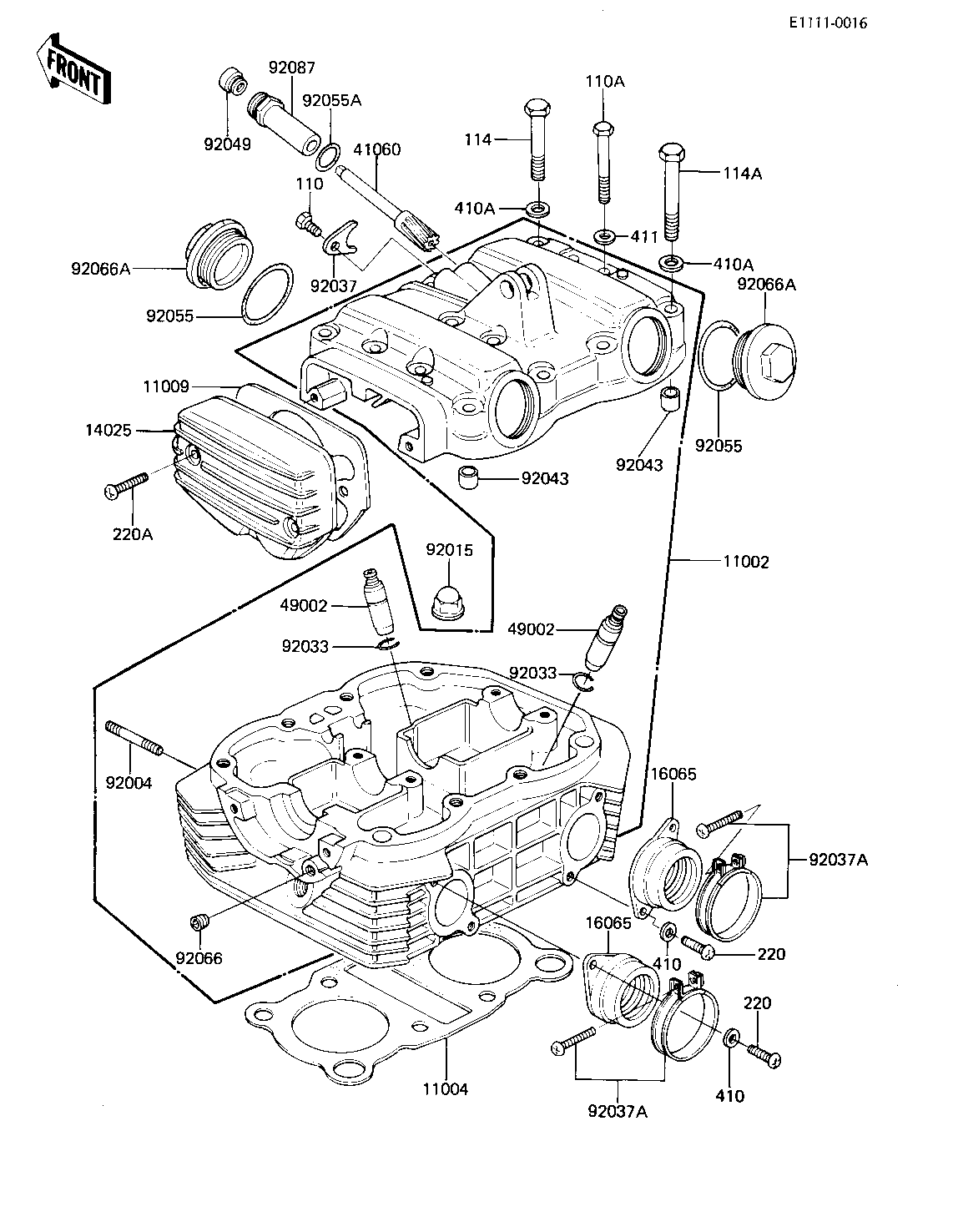

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD-ASSY-CYLINDER,SI | 11002 | 11002-1096 | 1 | ||
| GASKET-HEAD | 11004 | 11004-1220 | 1 | ||
| GASKET,BREAKER | 11009 | 11009-1067 | 1 | ||
| COVER,BREAKER,BARREL | 14025 | 14025-1208 | 1 | ||
| HOLDER-CARBURETOR | 16065 | 16065-1013 | 2 | ||
| GEAR-METER SCREW,10T | 41060 | 41060-1020 | 1 | ||
| GUIDE-VALVE | 49002 | 49002-1021 | 4 | ||
| STUD,6X46 | 92004 | 92004-049 | 4 | ||
| NUT,CAP,8MM | 92015 | 92015-1151 | 8 | ||
| CIRCLIP-VALVE | 92033 | 92036-023 | 4 | ||
| CLAMP,METER GEAR | 92037 | 92037-1030 | 1 | ||
| CLAMP,53M/M | 92037A | 92037-201 | 2 | ||
| PIN,DOWEL,12MM | 92043 | 92042-031 | 2 | ||
| OIL SEAL | 92049 | 92050-075 | 1 | ||
| "O" RING,VLV ADJUST | 92055 | 92055-1005 | 4 | ||
| "O" RING,METER GEAR | 92055A | 92055-1021 | 1 | ||
| PLUG,OIL SWITCH | 92066 | 92066-059 | 1 | ||
| PLUG,VLV ADJUST | 92066A | 92066-1006 | 4 | ||
| BUSHING,METER GEAR | 92087 | 92087-1001 | 1 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 1 | ||
| BOLT,HEX HEAD,6X50 | 110A | 110G0650 | 5 | ||
| BOLT HEX HEAD 8X50 | 114 | 114G0850 | 6 | ||
| BOLT-SMALL | 114A | 114G0860 | 2 | ||
| SCREW PAN HEAD 6X18 | 220 | 220B0618 | 4 | ||
| SCREW PAN HEAD 6X25 | 220A | 220B0625 | 2 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 4 | ||
| WASHER PLAIN 8MM | 410A | 410B0800 | 8 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 5 |
