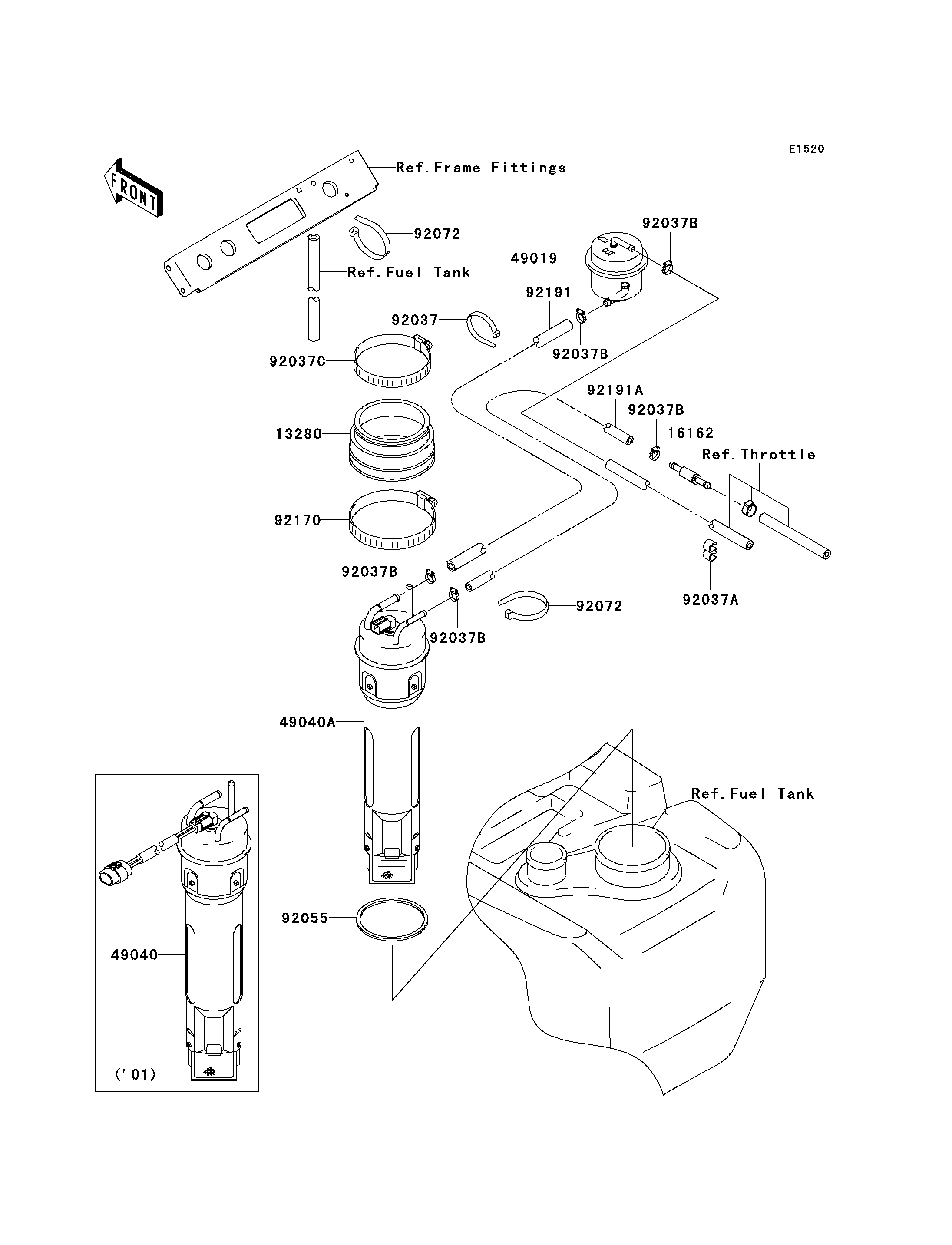

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13280
16162
49019
49040
92037
92037A
92037B
92037B
92037B
92037B
92037B
92037C
92055
92072
92072
92170
92191
92191A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13280 | 13280-3735 | 1 | ||
| REGULATOR-FUEL | 16162 | 16162-3701 | 1 | ||
| FILTER-FUEL | 49019 | 49019-3716 | 1 | ||
| PUMP-FUEL | 49040 | 49040-3711 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 1 | ||
| CLAMP,HOSE | 92037A | 92037-1603 | 1 | ||
| CLAMP | 92037B | 92037-3726 | 5 | ||
| CLAMP | 92037C | 92037-541 | 1 | ||
| RING-O,FUEL PUMP | 92055 | 92055-3756 | 1 | ||
| BAND,L=201 | 92072 | 92072-3778 | 2 | ||
| CLAMP | 92170 | 92170-3760 | 1 | ||
| TUBE,7.5X13.5X460 | 92191 | 92191-3869 | 1 | ||
| TUBE,5.8X10.8X410,RETURN | 92191A | 92191-3872 | 1 |
| HOLDER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REGULATOR-FUEL | |
| REF # | 16162 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-FUEL | |
| REF # | 49019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUMP-FUEL | |
| REF # | 49040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,FUEL PUMP | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=201 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,7.5X13.5X460 | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,5.8X10.8X410,RETURN | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
