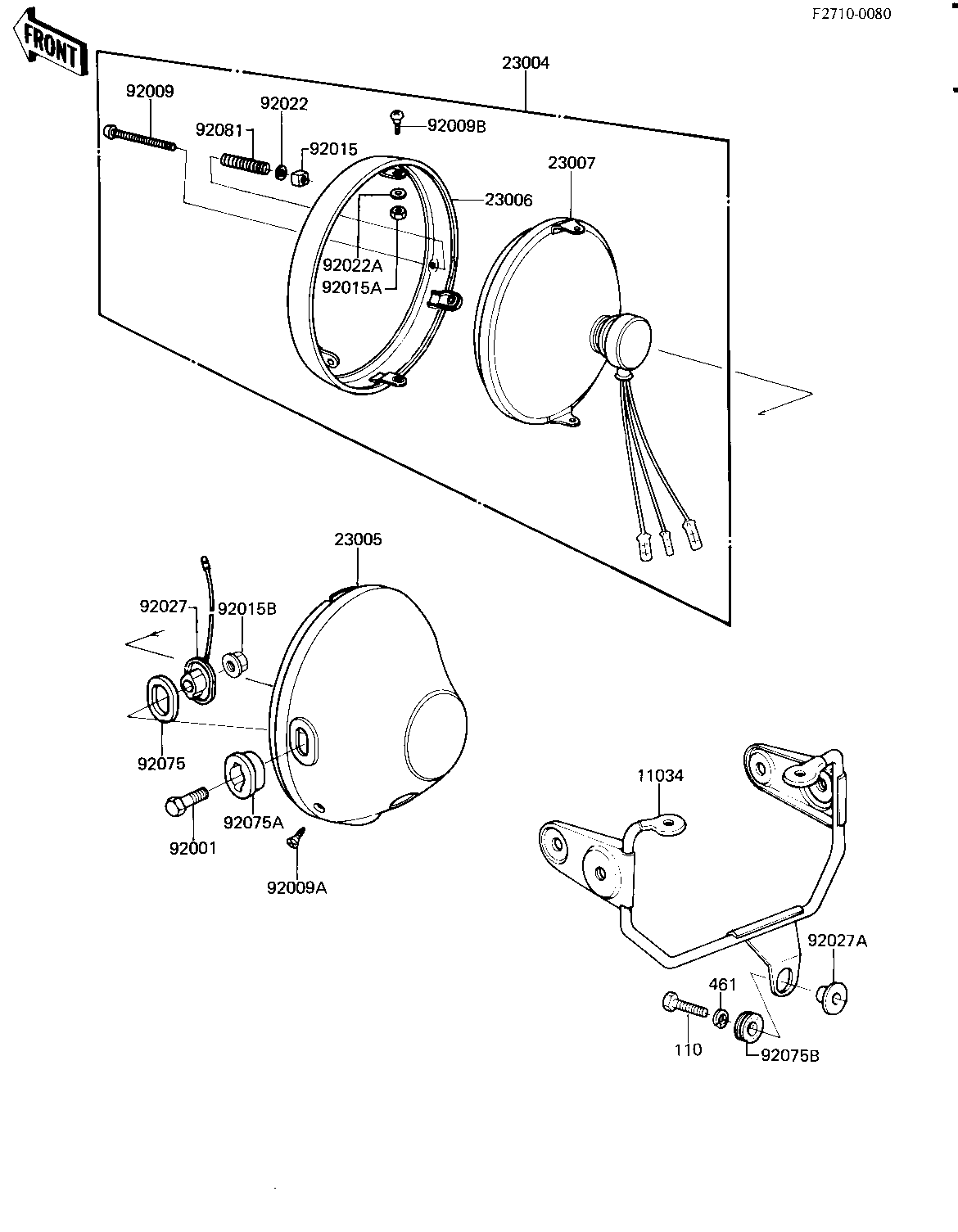

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LAMP | 11034 | 11034-1691 | 1 | ||
| LAMP UNIT,HEAD | 23004 | 23003-025 | 1 | ||
| BODY,HEAD LAMP BLACK | 23005 | 23005-1013 | 1 | ||
| RIM-HEAD LAMP | 23006 | 23006-034 | 1 | ||
| SEALED BEAM UNIT | 23007 | 23007-043 | 1 | ||
| BOLT,HEX HEAD,10X30 | 92001 | 92007-041 | 2 | ||
| SCREW FORCUS ADJUST | 92009 | 23019-021 | 1 | ||
| SCREW,PAN HEAD,5X14 | 92009A | 23019-022 | 2 | ||
| SCREW-PAN HEAD,5X12 | 92009B | 23019-023 | 2 | ||
| NUT,4MM | 92015 | 23020-018 | 1 | ||
| NUT,HEAD LAMP RIM FIT | 92015A | 23020-023 | 2 | ||
| NUT,FLANGED,10MM | 92015B | 92015-1428 | 2 | ||
| WASHER | 92022 | 23021-004 | 1 | ||
| WASHER-PLAIN,5MM | 92022A | 23021-012 | 2 | ||
| COLLAR | 92027 | 23076-005 | 2 | ||
| COLLAR | 92027A | 92027-251 | 1 | ||
| DAMPER RUBBER A | 92075 | 23066-001 | 2 | ||
| DAMPER RUBBER | 92075A | 23066-005 | 2 | ||
| DAMPER RUBBER,RR FENR | 92075B | 92075-209 | 1 | ||
| SPRING FOCUS ADJUST | 92081 | 23014-005 | 1 | ||
| BOLT-UPSET | 110 | 112G0625 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 |
