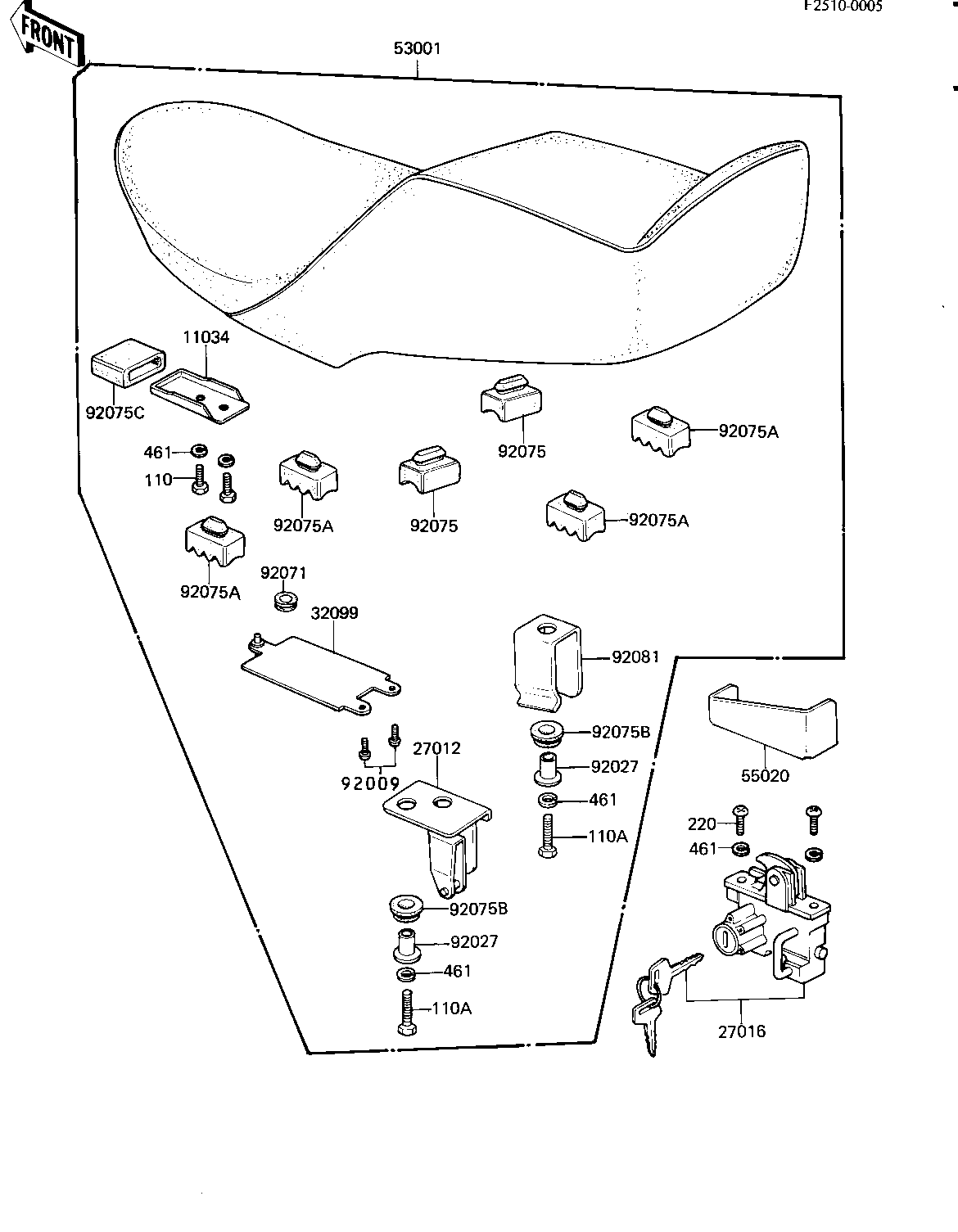

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HOLDER | 11034 | 11034-1135 | 1 | ||
| HOOK,SEAT | 27012 | 27012-1015 | 1 | ||
| LOCK ASSY,SEAT HELMET | 27016 | 27016-5028 | 1 | ||
| CASE | 32099 | 32099-011 | 1 | ||
| SEAT-ASSY | 53001 | 53001-1172 | 1 | ||
| GUARD,SEAT | 55020 | 55020-1042 | 1 | ||
| SCREW | 92009 | 92009-1043 | 2 | ||
| COLLAR,SEAT | 92027 | 92027-1062 | 3 | ||
| GROMMET | 92071 | 92071-056 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-099 | 2 | ||
| DAMPER,SEAT | 92075A | 92075-1007 | 4 | ||
| DAMPER, HEAD LMP FITT | 92075B | 92075-1123 | 3 | ||
| DAMPER RUBBER,SEAT | 92075C | 92075-219 | 1 | ||
| SPRING,SEAT | 92081 | 92081-1205 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| BOLT-UPSET | 110A | 112G0625 | 3 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 7 |
| BRACKET,HOLDER | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK,SEAT | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK ASSY,SEAT HELMET | |
| REF # | 27016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY | |
| REF # | 53001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,SEAT | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,SEAT | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SEAT | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER, HEAD LMP FITT | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,SEAT | |
| REF # | 92075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SEAT | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
