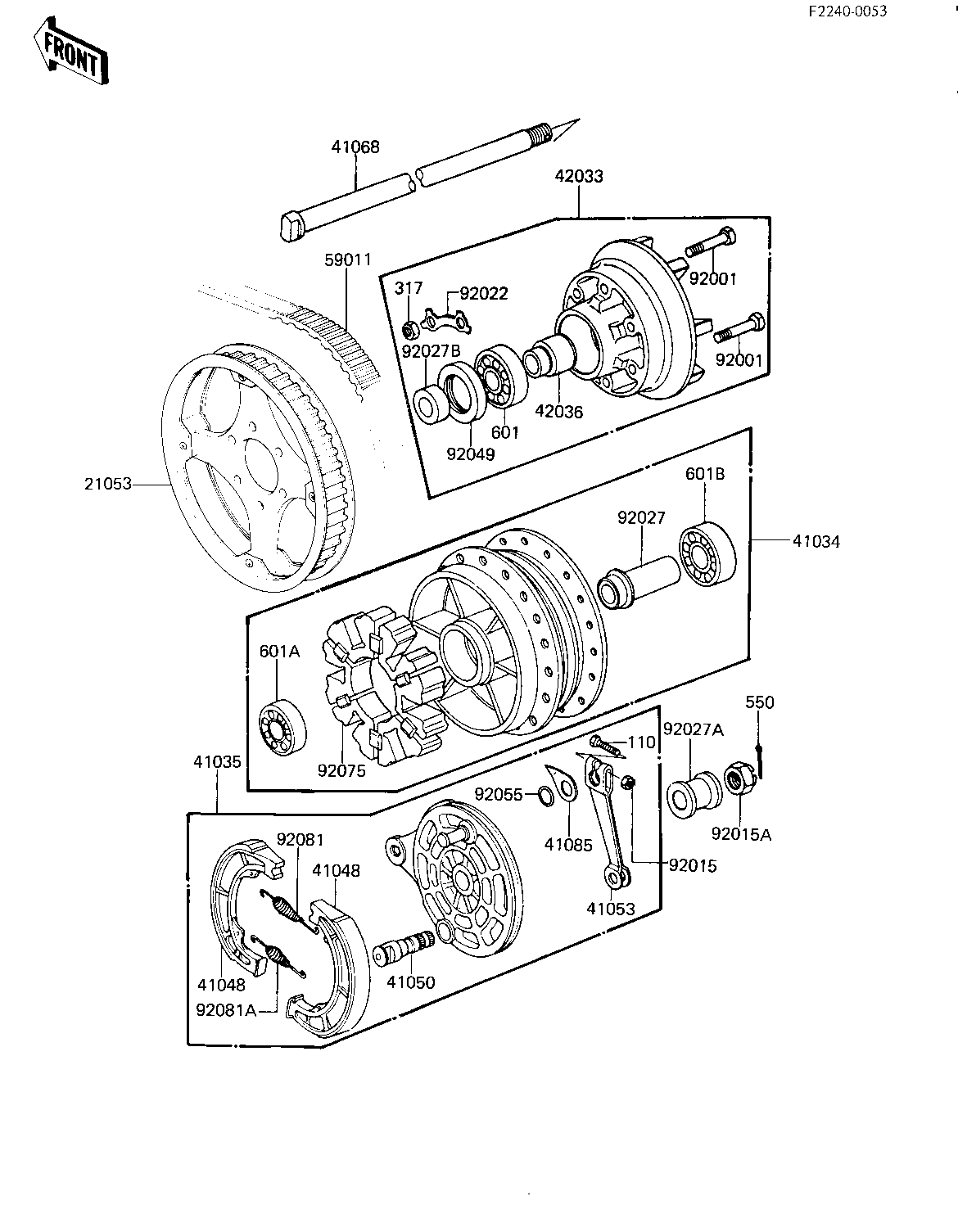

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,REAR 58T | 21053 | 21053-1011 | 1 | ||
| DRUM ASSY,REAR | 41034 | 42005-057 | 1 | ||
| RR BRAKE PANEL ASSY | 41035 | 41035-1090 | 1 | ||
| SHOE,BRAKE | 41048 | 42019-010 | 2 | ||
| CAM SHAFT,REAR BRAKE | 41050 | 42026-026 | 1 | ||
| LEVER,FRONT BRAKE CAM | 41053 | 41053-002 | 1 | ||
| AXLE,REAR | 41068 | 41068-1061 | 1 | ||
| INDICATOR,FR BK SHOE | 41085 | 41085-013 | 1 | ||
| COUPLING-ASSY,REAR HU | 42033 | 42033-1043 | 1 | ||
| SLEEVE,REAR HUB | 42036 | 42036-030 | 1 | ||
| BELT,DRIVE,125T | 59011 | 59011-1011 | 1 | ||
| BOLT,8X41 | 92001 | 92001-1478 | 6 | ||
| NUT,6MM | 92015 | 41072-007 | 1 | ||
| NUT,14MM | 92015A | 42045-020 | 1 | ||
| WASHER,SPROCKET LOCK | 92022 | 92088-019 | 3 | ||
| SPACER,REAR HUB BEARG | 92027 | 42010-037 | 1 | ||
| COLLAR,REAR AXLE | 92027A | 42032-076 | 1 | ||
| COLLAR-REAR HUB,15X26 | 92027B | 92027-1349 | 1 | ||
| OIL SEAL,RR HUB BRNG | 92049 | 92050-060 | 1 | ||
| "0" RING,11MM | 92055 | 92055-004 | 1 | ||
| SHOCK DAMPER,REAR HUB | 92075 | 42014-030 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 1 | ||
| SPRING,BRAKE SHOE | 92081A | 92081-1550 | 1 | ||
| BOLT-UPSET | 110 | 112G0630 | 1 | ||
| NUT,8M/M | 317 | 317B0800 | 6 | ||
| PIN COTTER 3.0X25 | 550 | 550D3025 | 1 | ||
| BEARING BALL #6004 | 601 | 601B6004 | 1 | ||
| BEARING BALL #6202 | 601A | 601B6202 | 1 | ||
| BEARING BALL #6302Z | 601B | 601B6302Z | 1 |
