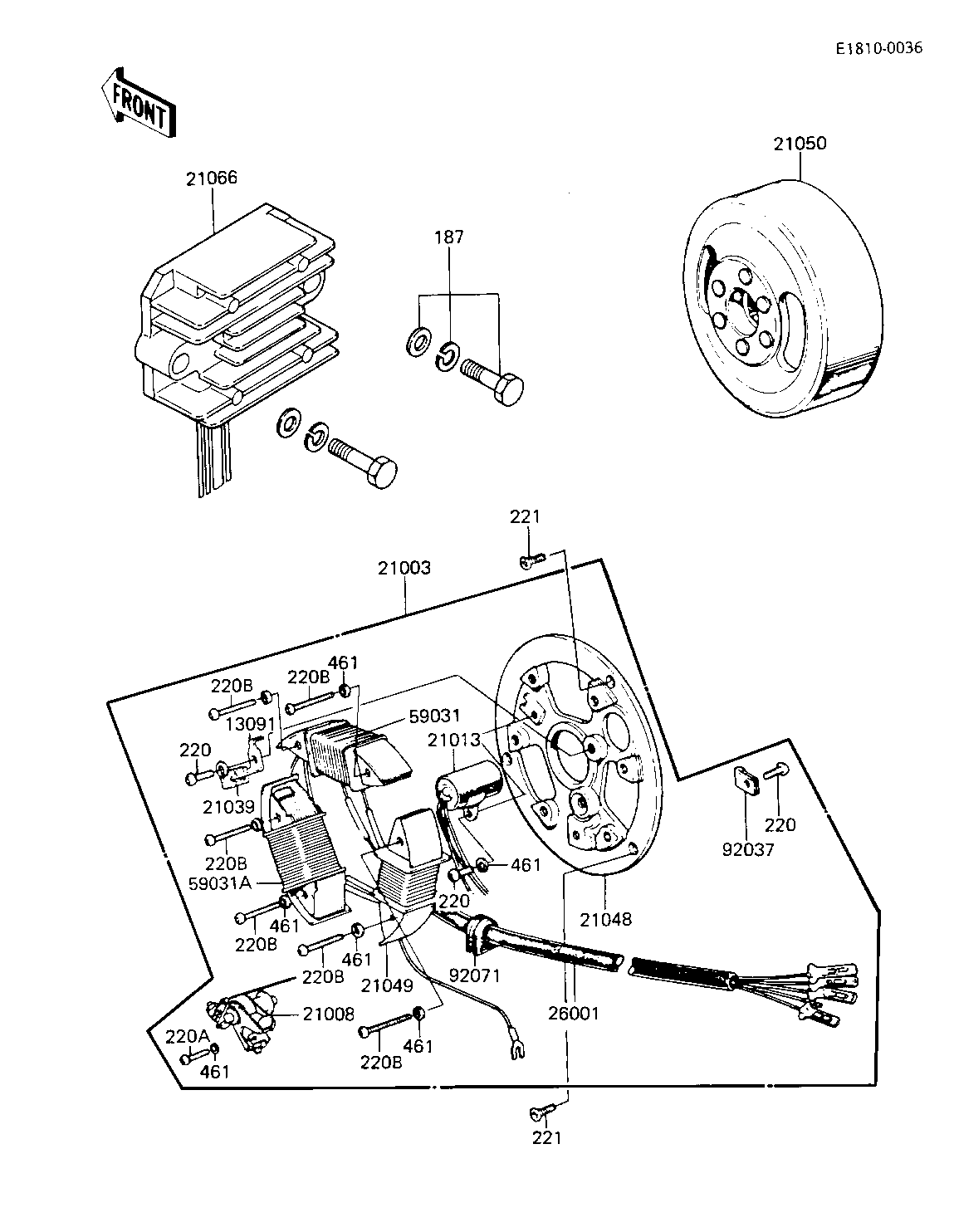

1986 KE100 - IGNITION/GENERATOR/REGULATOR
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,OIL FELT | 13091 | 21038-002 | 1 | ||
| STATOR ASSY | 21003 | 21003-1014 | 1 | ||
| BREAKER ASSY CONTACT | 21008 | 21008-006 | 1 | ||
| CONDENSER | 21013 | 21013-006 | 1 | ||
| FELT OIL | 21039 | 21019-005 | 1 | ||
| PLATE-COIL,MAGNETO | 21048 | 21048-1002 | 1 | ||
| COIL,EXCITING | 21049 | 21049-1004 | 1 | ||
| FLYWHEEL,MAGNETO | 21050 | 21050-1009 | 1 | ||
| REGULATOR,VOLTAGE | 21066 | 21066-1012 | 1 | ||
| WIRING HARNESS,MAGNET | 26001 | 26001-1077 | 1 | ||
| COIL,CHARGING A | 59031 | 59031-1001 | 1 | ||
| COIL,CHARGING B | 59031A | 59031-1002 | 1 | ||
| CLAMP WIRING HARNESS | 92037 | 21037-002 | 1 | ||
| GROMMET WIRING HARN | 92071 | 21017-002 | 1 | ||
| BOLT-UPSET-WSP | 187 | 187B0625 | 1 | ||
| SCREW PAN HEAD 4X6 | 220 | 220B0406 | 3 | ||
| SCREW PAN HEAD 4X30 | 220B | 220E0430 | 6 | ||
| SCREW CNTSNK HD 6X14 | 221 | 221B0614 | 2 | ||
| WASHER-SPRING, 4MM | 461 | 461F0400 | 9 |
| HOLDER,OIL FELT | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STATOR ASSY | |
| REF # | 21003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREAKER ASSY CONTACT | |
| REF # | 21008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONDENSER | |
| REF # | 21013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FELT OIL | |
| REF # | 21039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-COIL,MAGNETO | |
| REF # | 21048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,EXCITING | |
| REF # | 21049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLYWHEEL,MAGNETO | |
| REF # | 21050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REGULATOR,VOLTAGE | |
| REF # | 21066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,MAGNET | |
| REF # | 26001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,CHARGING A | |
| REF # | 59031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,CHARGING B | |
| REF # | 59031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP WIRING HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET WIRING HARN | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X6 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X30 | |
| REF # | 220B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X14 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING, 4MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
