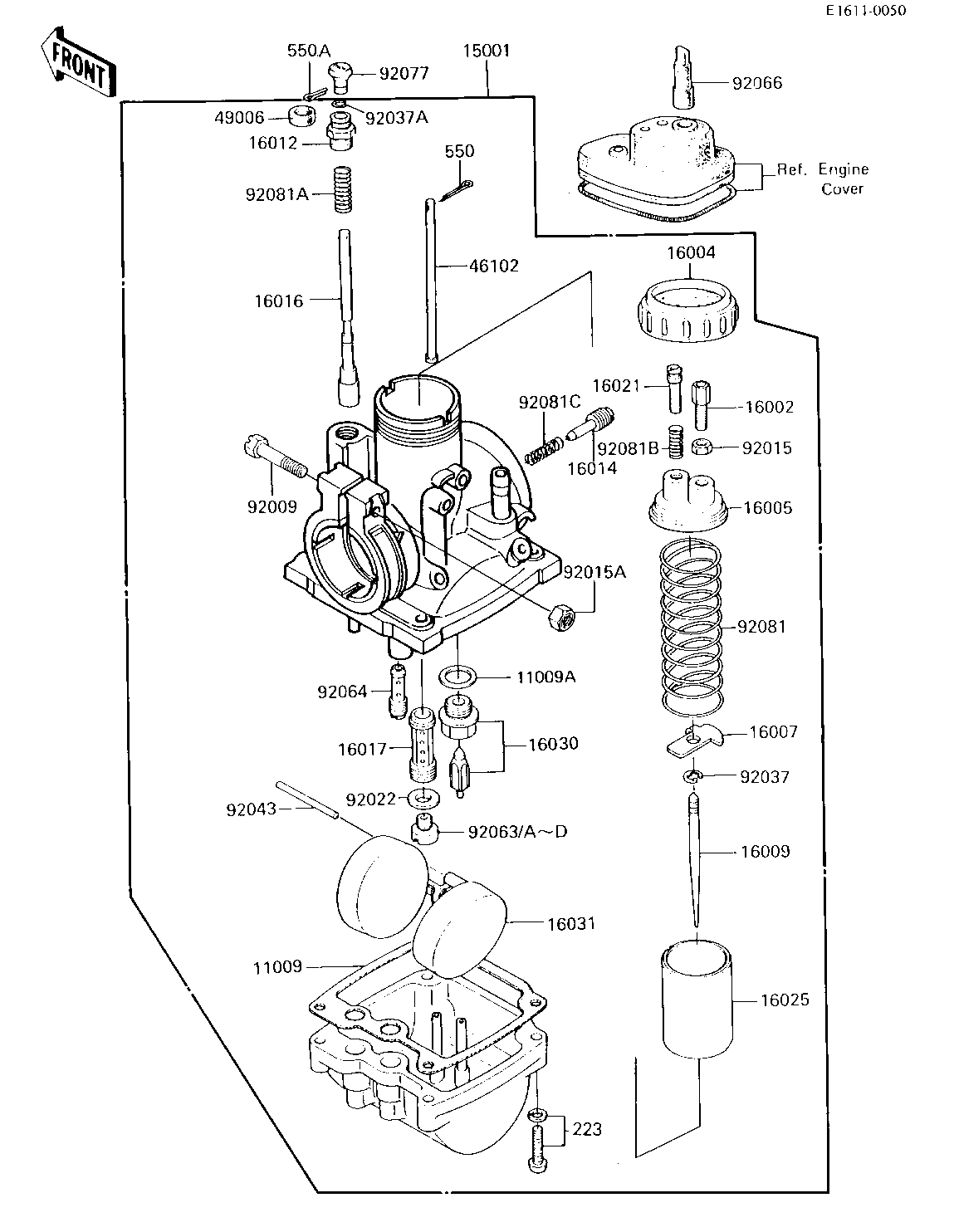

1986 KE100 - CARBURETOR (KE100-B5, CANADA)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 16019-021 1 CN
WASHER VALVE SEAT 11009A 16029-002 1 CN
CARBURETOR-ASSY 15001 15001-1191 1 CN
ADJUSTER,CABLE 16002 16002-017 1 CN
CAP MIXING CHAMBER 16004 16004-010 1 CN
TOP MIXING CHAMBER 16005 16005-005 1 CN
SPRING SEAT,THRTL TL 16007 16007-020 1 CN
JET NEEDLE 4EJ7 16009 16009-059 1 CN
CAP,STARTER PLUNGER 16012 16012-021 1 CN
SCREW PILOT AIR ADJST 16014 16014-002 1 CN
PLUNGER,STARTER 16016 16016-012 1 CN
NEEDLE JET O-4 16017 16017-081 1 CN
SCREW,THROTTLE STOP 16021 16021-002 1 CN
VALVE,THROTTLE CA2.0 16025 16025-057 1 CN
FLOAT VALVE ASSY 16030 16030-001 1 CN
FLOAT 16031 16031-015 1 CN
ROD,THROTTLE VLV STP 46102 16024-012 1 CN
CAP,STARTER PLUNGER 49006 16036-012 1 CN
SCREW CLAMP 92009 16010-004 1 CN
NUT CABLE ADJUST LOCK 92015 16003-004 1 CN
NUT 6MM 92015A 311B0600 1 CN
WASHER MAIN JET 92022 16034-001 1 CN
CIRCLIP 92037 16008-010 1 CN
CIRCLIP 92037A 92037-1077 1 CN
FLOAT PIN 92043 16032-003 1 CN
MAIN JET NO 85R 92063 92063-093 1 CN
MAIN JET, #A80 92063A 92063-1030 1 CN
MAIN JET,#77.5R 92063B 92063-1032 1 CN
MAIN JET NO 75R 92063C 92063-109 1 CN
MAIN JET NO 82.5R 92063D 92063-124 1 CN
PILOT JET #17.5 ISO 92064 92064-020 1 CN
PLUG,CARBURETOR CAP 92066 16147-001 1 CN
KNOB,CARBURETOR 92077 92077-022 1 CN
SPRING THROTTLE VALVE 92081 16006-013 1 CN
SPRING,STARTER PLUNGR 92081A 16013-010 1 CN
SPRING THR STOP SCREW 92081B 16022-005 1 CN
SPRING-THR STOP SCREW 92081C 16022-007 1 CN
SCREW-PAN-WS-CROS 223 223B0418 4 CN
PIN COTTER 1.2X10 550 550D1210 1 CN
PIN COTTER 1.6X15 550A 550D1615 1 CN
