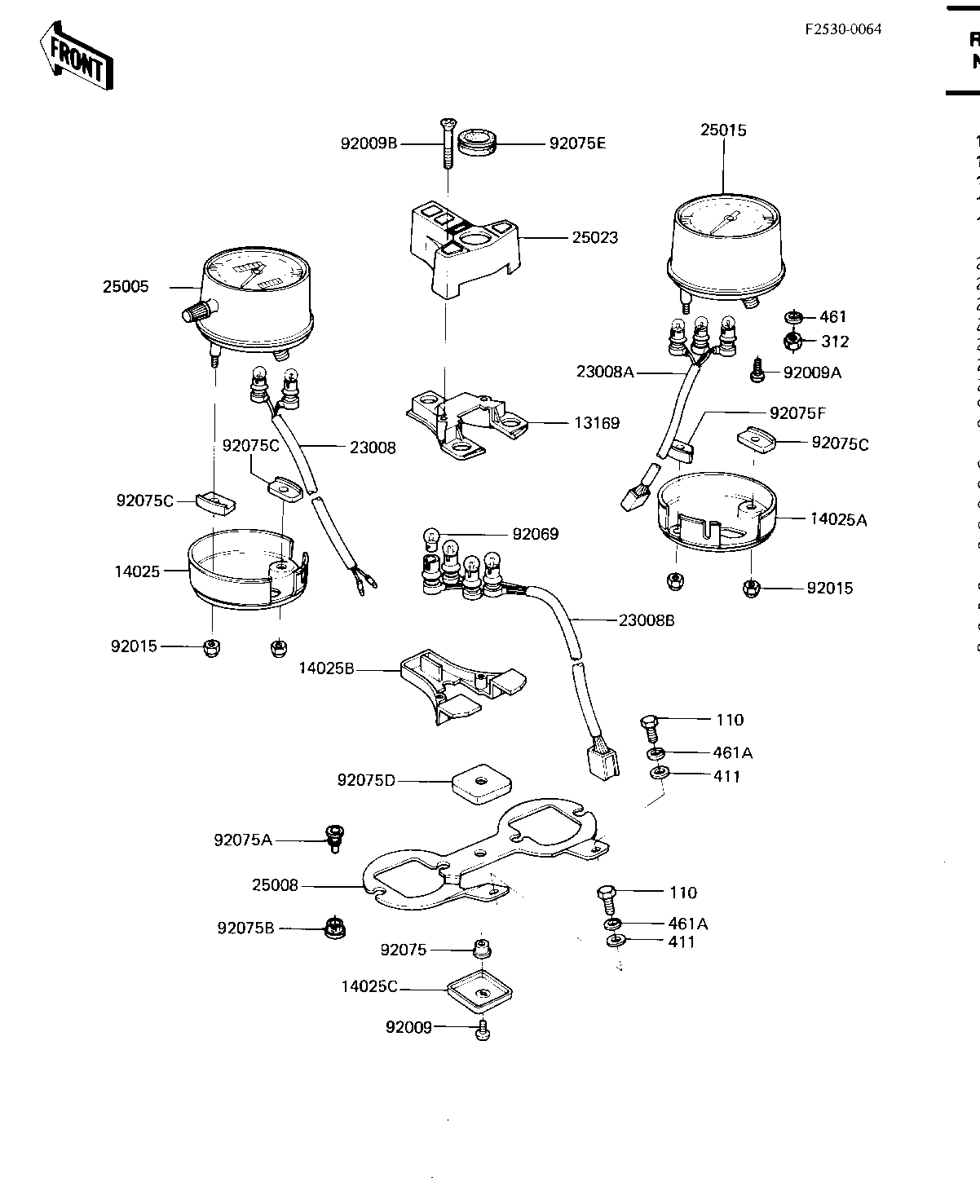

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,SOCKET | 13169 | 13169-1268 | 1 | ||
| COVER,SPEEDOMETER | 14025 | 14025-1224 | 1 | ||
| COVER,TACHOMETER | 14025A | 14025-1225 | 1 | ||
| COVER,PILOT BOX LOWE | 14025B | 14025-1226 | 1 | ||
| COVER,METER BRACKET | 14025C | 14025-1227 | 1 | ||
| SOCKET-ASSY,SPEEDOME | 23008 | 23008-1105 | 1 | ||
| SOCKET-ASSY | 23008A | 23008-1106 | 1 | ||
| SOCKET-ASSY,PILOT BO | 23008B | 23008-1107 | 1 | ||
| SPEEDOMETER,MPH | 25005 | 25005-1132 | 1 | ||
| BRACKET,METER | 25008 | 25008-1030 | 1 | ||
| TACHOMETER | 25015 | 25015-1088 | 1 | ||
| COVER,PILOT BOX UPPE | 25023 | 25023-1021 | 1 | ||
| SCREW,TAPPING,4X10 | 92009 | 92009-1040 | 1 | ||
| SCREW,CUNTERSNK,4X35 | 92009A | 92009-1093 | 2 | ||
| NUT-CAP,5MM | 92015 | 322N0500 | 4 | ||
| BULB,12V3.4W | 92069 | 92069-1007 | 9 | ||
| DAMPER RUBBER,MET FI | 92075 | 25019-023 | 1 | ||
| DAMPER,METER | 92075A | 92075-1149 | 2 | ||
| DAMPER,METER FITTING | 92075B | 92075-1150 | 4 | ||
| DAMPER,METER | 92075C | 92075-1192 | 3 | ||
| DAMPER RUBBER | 92075D | 92075-1255 | 1 | ||
| DAMPER RUBBER | 92075E | 92075-1256 | 1 | ||
| DAMPER RUBBER,METER | 92075F | 92075-1265 | 1 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 |
| PLATE,SOCKET | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SPEEDOMETER | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TACHOMETER | |
| REF # | 14025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX LOWE | |
| REF # | 14025B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER BRACKET | |
| REF # | 14025C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,SPEEDOME | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY | |
| REF # | 23008A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,PILOT BO | |
| REF # | 23008B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPEEDOMETER,MPH | |
| REF # | 25005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TACHOMETER | |
| REF # | 25015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX UPPE | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,CUNTERSNK,4X35 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-CAP,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,12V3.4W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,MET FI | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER FITTING | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER | |
| REF # | 92075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,METER | |
| REF # | 92075F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
